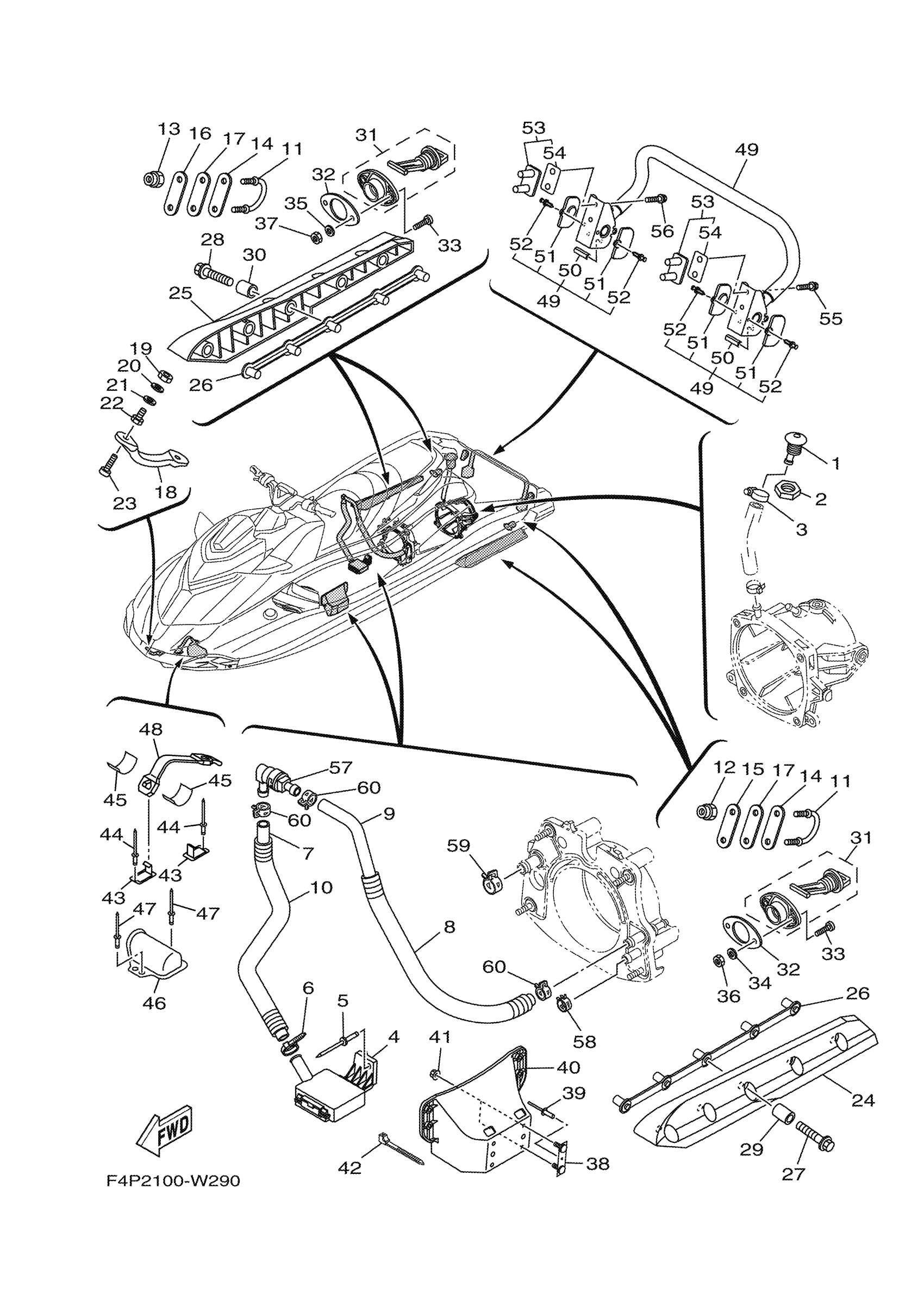

Yamaha GP1800DX (GP1800R HO_HO WITH AUDIO) F4M4 2022 HULL & DECK Diagram
#
1
SPOUT
F1W-U269B-00-00
Unavailable
2
NUT
EU0-61652-00-00
Unavailable
3
BAND, HOSE 18
90601-118UF-00
Unavailable
4
STRAINER, BILGE
F1B-U761D-02-00
Unavailable
5
RIVET, BLIND
90267-489U8-00
Unavailable
6
CLAMP
90465-10098-00
Unavailable
7
HOSE (L860)
90445-20804-00
Unavailable
8
TUBE,2
6EX-U773E-00-00
Unavailable
9
HOSE (L500)
90445-20800-00
Unavailable
10
TUBE
6EX-U773D-00-00
Unavailable
11
STERN EYE
F2N-U1628-02-00
Unavailable
12
NUT, NYLON (6J8)
95780-08300-00
Unavailable
13
NUT, NYLON (6J8)
95780-08300-00
Unavailable
14
PLATE A
GP7-U4953-10-00
Unavailable
15
PLATE A
GP7-U4953-10-00
Unavailable
16
PLATE A
GP7-U4953-10-00
Unavailable
17
PACKING
F1B-U1653-03-00
Unavailable
18
BOW EYE 1
F1K-61624-00-00
Unavailable
19
NUT.HEX.(COARS)
99780-12600-00
Unavailable
20
YBS66-12 WASHER,PLAIN
92990-12200-00
Unavailable
21
WASHER
F0X-61637-00-00
Unavailable
22
NUT
F0X-61652-01-00
Unavailable
23
BOLT, HEXAGON SOCKET HEAD
90110-06280-00
Unavailable
24
STABILIZER LH
F1S-U883N-01-00
Unavailable
25
STABILIZER RH
F1S-U883P-01-00
Unavailable
26
BRACKET,STABILIZER
F1X-U883T-02-00
Unavailable
27
BOLT,WASHER BASED
90105-088F9-00
Unavailable
28
BOLT,WASHER BASED
90105-088F9-00
Unavailable
29
SPACER
F2N-U8169-10-00
Unavailable
30
SPACER
F2N-U8169-10-00
Unavailable
31
DRAIN PLUG ASSY
F1S-U2280-02-00
Unavailable
32
PACKING, DRAIN
F1S-U2285-01-00
Unavailable
33
SCREW, PAN HEAD
9788R-05025-00
Unavailable
34
WASHER
9299R-05200-00
Unavailable
35
WASHER
9299R-05200-00
Unavailable
36
NUT, FLANGE
9572R-05300-00
Unavailable
37
NUT, FLANGE
9572R-05300-00
Unavailable
38
BRACKET
F1K-U826C-03-00
Unavailable
39
RIVET (EU0)
90267-48938-00
Unavailable
40
BRACKET 2
F4P-U8572-00-00
Unavailable
41
NUT, LOCK
F3Y-U142L-00-00
Unavailable
42
CLAMP
90464-32801-00
Unavailable
43
HOOK A
F1K-U5772-04-00
Unavailable
44
RIVET (EU0)
90267-48938-00
Unavailable
45
MAT 2
F1K-U759C-00-00
Unavailable
46
BOX, FIRE EXTINGUISHER
F2X-U5983-00-00
Unavailable
47
RIVET, BLIND
90267-48802-00
Unavailable
48
BAND 1
F2P-U828K-00-00
Unavailable
49
LADDER, STEP ASSY
F2X-U278A-00-00
Unavailable
50
. SLEEVE 1
F1W-U771H-00-00
Unavailable
51
. INNER, COVER SIDE 1
F2C-U377H-00-00
Unavailable
52
. PIN
F2C-U1314-00-00
Unavailable
53
BRACKET, LADDER LH
F2S-U278F-01-00
Unavailable
54
PACKING, BRKT. 1
F2S-U278H-01-00
Unavailable
55
BOLT, WITH WASHER
90119-08844-00
Unavailable
56
BOLT, WITH WASHER
90119-08844-00
Unavailable
57
JOINT, HOSE
68N-5112T-00-00
Unavailable
58
CLIP
90467-200A3-00
Unavailable
59
CLIP
90467-240A3-00
Unavailable
60
CLIP
90467-190A2-00
Unavailable
