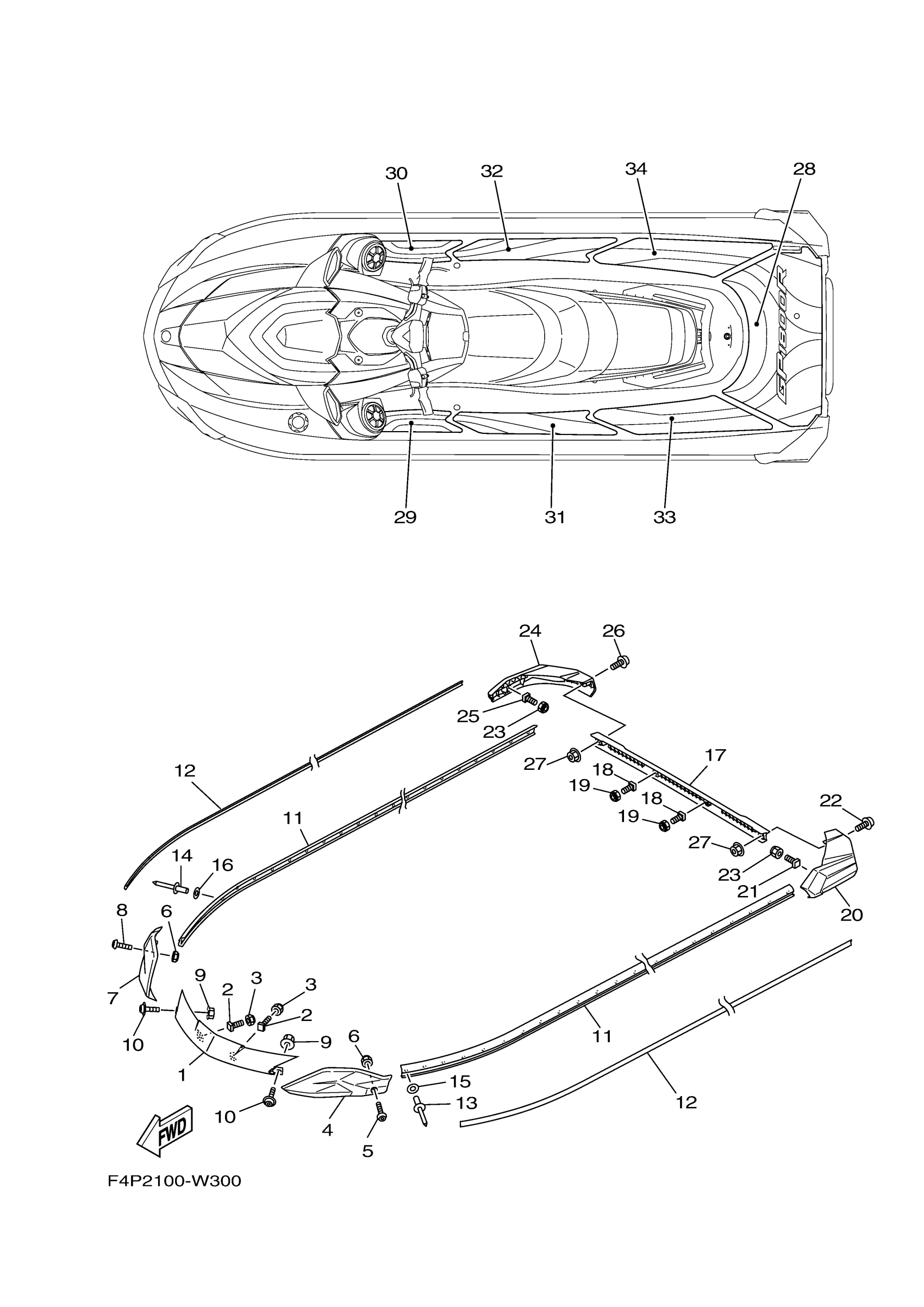

Yamaha GP1800DX (GP1800R HO_HO WITH AUDIO) F4M4 2022 GUNWALE & MAT Diagram

#

Description
Price

1

GUNWALE, BOW

F4P-U2511-00-00

$21.63

2

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

3

NUT, LOCK

F2N-U142L-00-00

$1.00

4

JOINT, GUNWALE LH

F4P-U252E-00-00

$23.67

5

SCREW

F4P-U7823-00-00

$1.43

6

NUT, LOCK

F2N-U142L-00-00

$1.00

7

JOINT, GUNWALE RH

F4P-U252F-00-00

$25.11

8

SCREW

F4P-U7823-00-00

$1.43

9

NUT, LOCK

F2N-U142L-00-00

$1.00

10

SCREW

F3X-U7823-12-00

$1.25

11

GUNWALE, SIDE

F4P-U2512-00-00

$39.53

12

INNER,GUNWALE

F4P-U2519-00-00

$17.90

12

INNER,GUNWALE

F4P-U2519-30-00

$37.30

13

RIVET, BLIND

90267-489U8-00

$1.37

14

RIVET, BLIND

90267-489U8-00

$1.37

15

WASHER

9299R-05200-00

$4.60

16

WASHER

9299R-05200-00

$4.60

17

COVER, GUNWALE 1

F4P-U252C-02-00

Unavailable

18

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

19

NUT, LOCK

F2N-U142L-00-00

$1.00

20

GUNWALE, STERN 1

F4P-U251D-00-00

$18.64

21

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

22

SCREW

F4P-U7823-00-00

$1.43

23

NUT, LOCK

F2N-U142L-00-00

$1.00

24

GUNWALE, STERN 2

F4P-U251E-00-00

$11.48

25

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

26

SCREW

F4P-U7823-00-00

$1.43

27

NUT, LOCK

F2N-U142L-00-00

$1.00

28

MAT, UPPER

F4P-U3581-02-00

$107.45

28

MAT, UPPER

F4P-U3581-20-00

$107.45

29

MAT, STEP 1

F4P-U351H-01-00

$46.25

29

MAT, STEP 1

F4P-U351H-20-00

$53.72

30

MAT, STEP 2

F4P-U351J-01-00

$44.50

30

MAT, STEP 2

F4P-U351J-20-00

$53.72

31

MAT, STEP 3

F4P-U351K-01-00

$44.76

31

MAT, STEP 3

F4P-U351K-20-00

$53.72

32

MAT, STEP 4

F4P-U351M-01-00

$44.76

32

MAT, STEP 4

F4P-U351M-20-00

$53.72

33

MAT, STEP 5

F4P-U351N-01-00

$50.73

33

MAT, STEP 5

F4P-U351N-20-00

$58.19

34

MAT, STEP 6

F4P-U351P-01-00

$44.76

34

MAT, STEP 6

F4P-U351P-20-00

$58.19
