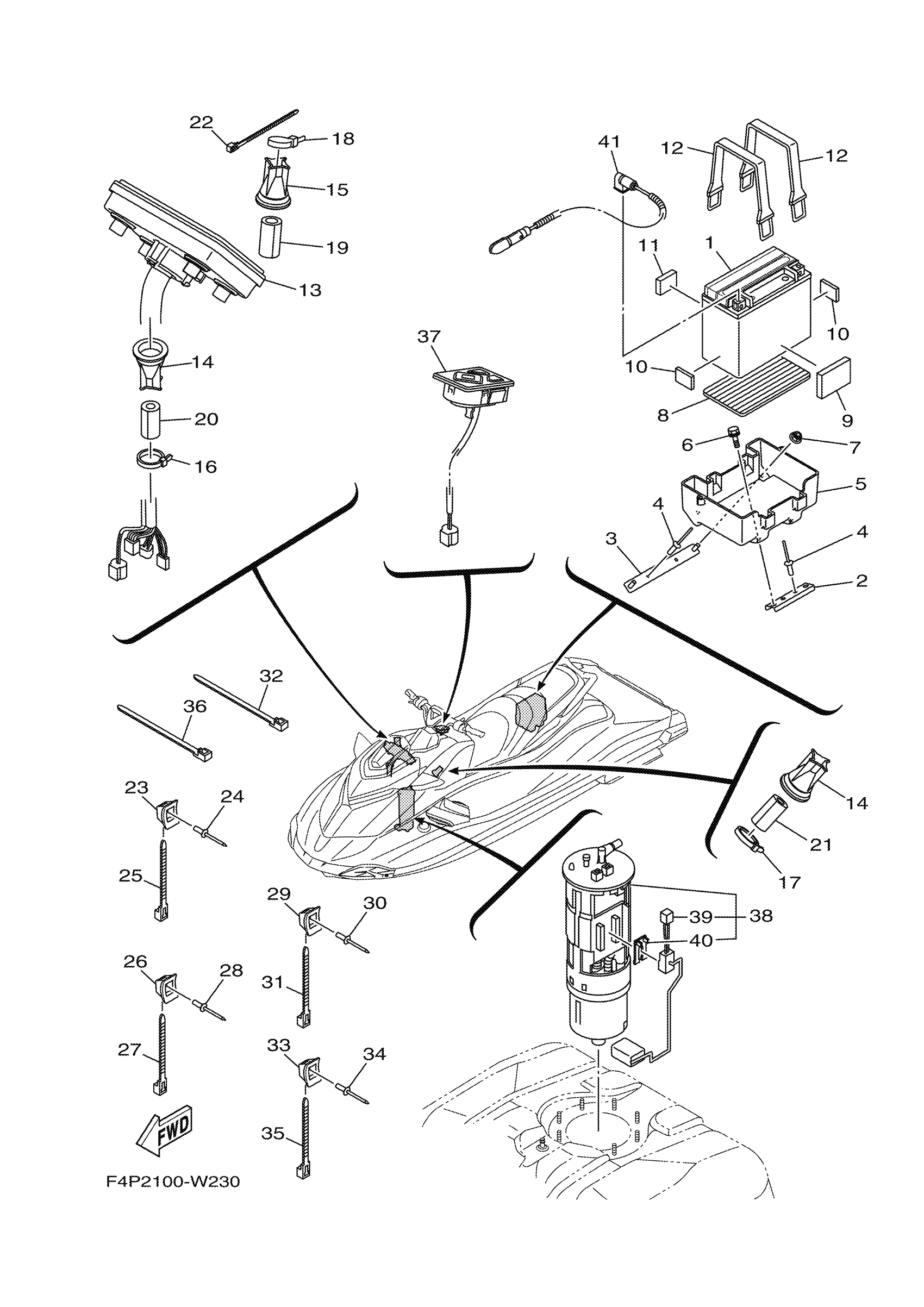

Yamaha GP1800DX (GP1800R HO_HO WITH AUDIO) F4M4 2022 ELECTRICAL 3 Diagram

#

Description
Price

1

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

$159.13

2

PLATE, BASE 2

F2S-U8592-00-00

$5.66

3

PLATE, BASE 3

F2S-U8593-00-00

$5.29

4

RIVET (EU0)

90267-48938-00

$4.85

5

CASE, BATTERY

F2S-U8211-00-00

Unavailable

6

BOLT, WITH WASHER

90119-06820-00

$3.65

7

NUT, LOCK

F2N-U142L-00-00

$1.43

8

PAD, BATTERY

F1S-U8221-00-00

$2.88

9

MAT 2

F1W-U759C-01-00

$2.43

10

PAD, BATTERY

EU0-U8221-31-00

$1.80

11

PACKING

F2C-U1743-00-00

$2.00

12

BAND, BATTERY 1

F4P-U821D-00-00

Unavailable

13

METER ASSY

F4P-U820A-02-00

Unavailable

14

GROMMET

F3J-U822E-01-00

$6.03

15

GROMMET

F3J-U822E-01-00

$6.03

16

CLAMP

90464-32801-00

$1.29

17

CLAMP

90464-32801-00

$1.29

18

CLAMP

90464-32801-00

$1.29

19

PACKING, HOSE 2

GJ1-U7578-22-00

Unavailable

20

PACKING, HOSE 2

GJ1-U7578-12-00

Unavailable

21

PACKING, HOSE 2

GJ1-U7578-12-00

Unavailable

22

CLAMP(JN6)

90464-31827-00

Unavailable

23

BASE, CLAMP

F1W-U828M-00-00

$1.29

24

RIVET, BLIND

90267-48806-00

$2.16

25

CLAMP

90464-32801-00

$1.29

26

BASE, CLAMP

F1W-U828M-00-00

$1.29

27

CLAMP

90464-32801-00

$1.29

28

RIVET, BLIND

90267-48806-00

$2.16

29

BASE, CLAMP

F1W-U828M-00-00

$1.29

30

RIVET, BLIND

90267-48806-00

$2.16

31

CLAMP

90464-32801-00

$1.29

32

CLAMP

F2C-U4256-00-00

$3.16

33

BASE, CLAMP

F1W-U828M-00-00

$1.29

34

RIVET, BLIND

90267-48806-00

$2.16

35

CLAMP

F2C-U4256-00-00

$3.16

36

BAND

90601-200U2-00

$3.29

37

SWITCH ASSY.

F4P-U8090-02-00

$78.98

38

FUEL PUMP COMP.

6S5-13907-05-00

$1,050.38

39

FUEL SENDER ASSY SET

99999-04571-00

Unavailable

40

DAMPER, STOPPER

60E-82556-10-00

$18.37

41

WIRE, MINUS LEAD

6JP-82116-00-00

$63.22
