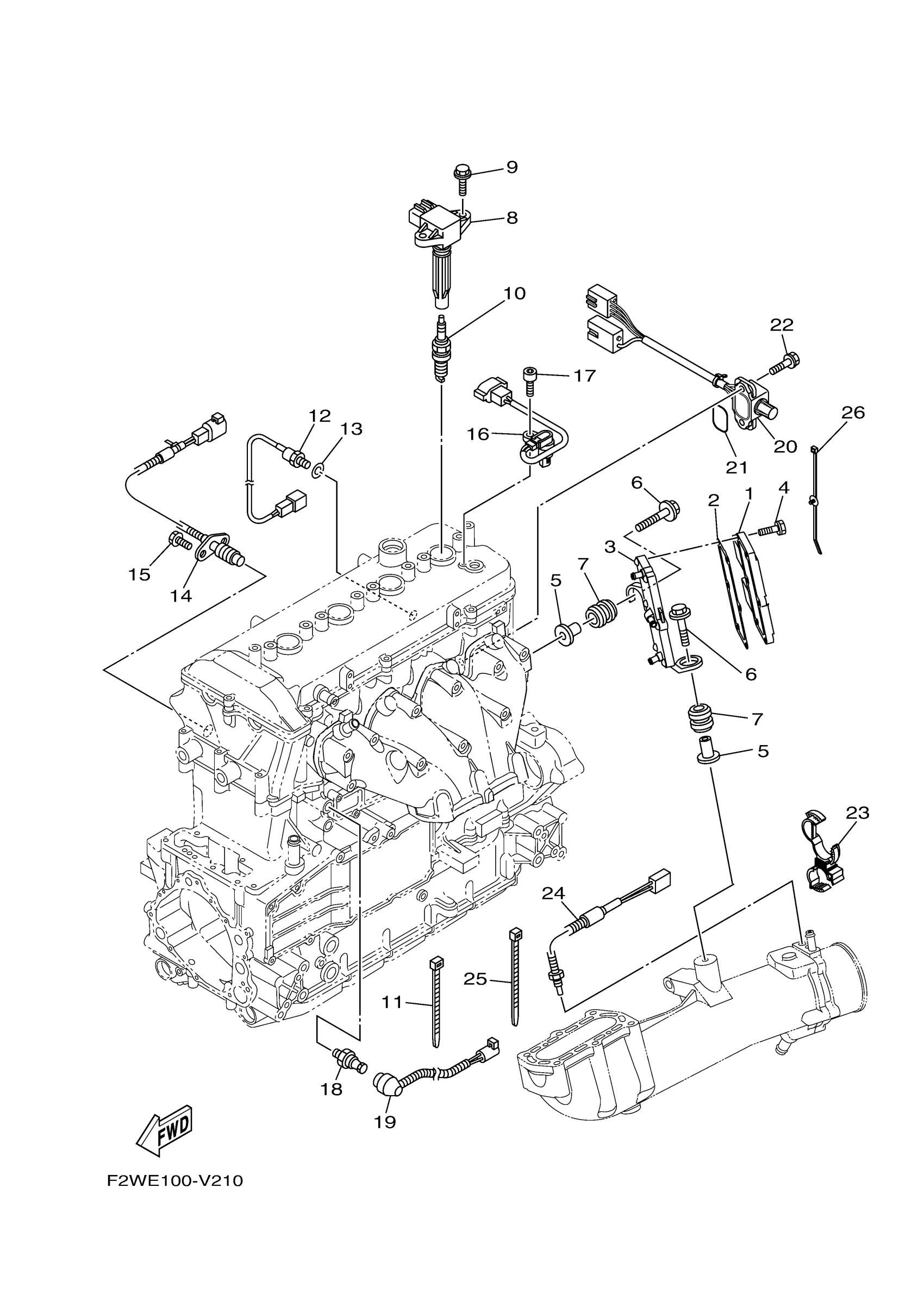

Yamaha GP1800DX (GP1800R HO_HO WITH AUDIO) F4M4 2022 ELECTRICAL 2 Diagram

#

Description
Price

1

RECTIFIER & REGULATOR ASSY

6EK-81960-10-00

$201.99

2

PLATE, RECTIFIER FITTING

6ET-81975-01-00

$6.27

3

COVER, RECTIFIER

6ET-81972-00-00

$114.91

4

BOLT, WITH WASHER

90119-06MA4-00

$3.42

5

COLLAR

90387-08M37-00

$10.28

6

BOLT, WITH WASHER

90119-08187-00

$3.02

7

GROMMET

90480-22M15-00

$11.01

8

IGNITION COIL ASSY

6S5-82310-10-00

$263.06

9

BOLT,FLANGE (EW2)

90105-06903-00

$5.00

10

PLUG, SPARK (NGK LFR6A-00)

LFR-6A000-00-00

$7.43

11

CLAMP(3XW)

90464-35132-00

$6.67

12

THERMOSENSOR ASSY

61A-85790-01-00

$121.46

13

WASHER, PLATE

92990-10600-00

$2.66

14

THERMO SWITCH ASSY

6CR-82560-00-00

$73.71

15

BOLT, HEXAGON W/W DEEP RECESS

97E95-06516-00

$4.10

16

SENSOR, CAM POSITION

60E-85896-02-00

$150.79

17

BOLT,SOCKET

91380-06016-00

Unavailable

18

OIL PRESSURE SWITCH ASSY

68V-82504-00-00

$30.45

19

LEAD WIRE ASSY

6S5-81315-01-00

$50.73

20

EARTH PLATE COMP.

6CS-8273J-11-00

$177.60

21

O-RING (341)

93210-32172-00

Unavailable

22

BOLT, WITH WASHER

90119-06MA3-00

$2.80

23

CLAMP

90464-20008-00

Unavailable

24

THERMOSENSOR ASSY

6AA-85790-00-00

$103.73

25

CLAMP

90464-20005-00

$2.16

26

CLAMP

90464-31002-00

Unavailable
