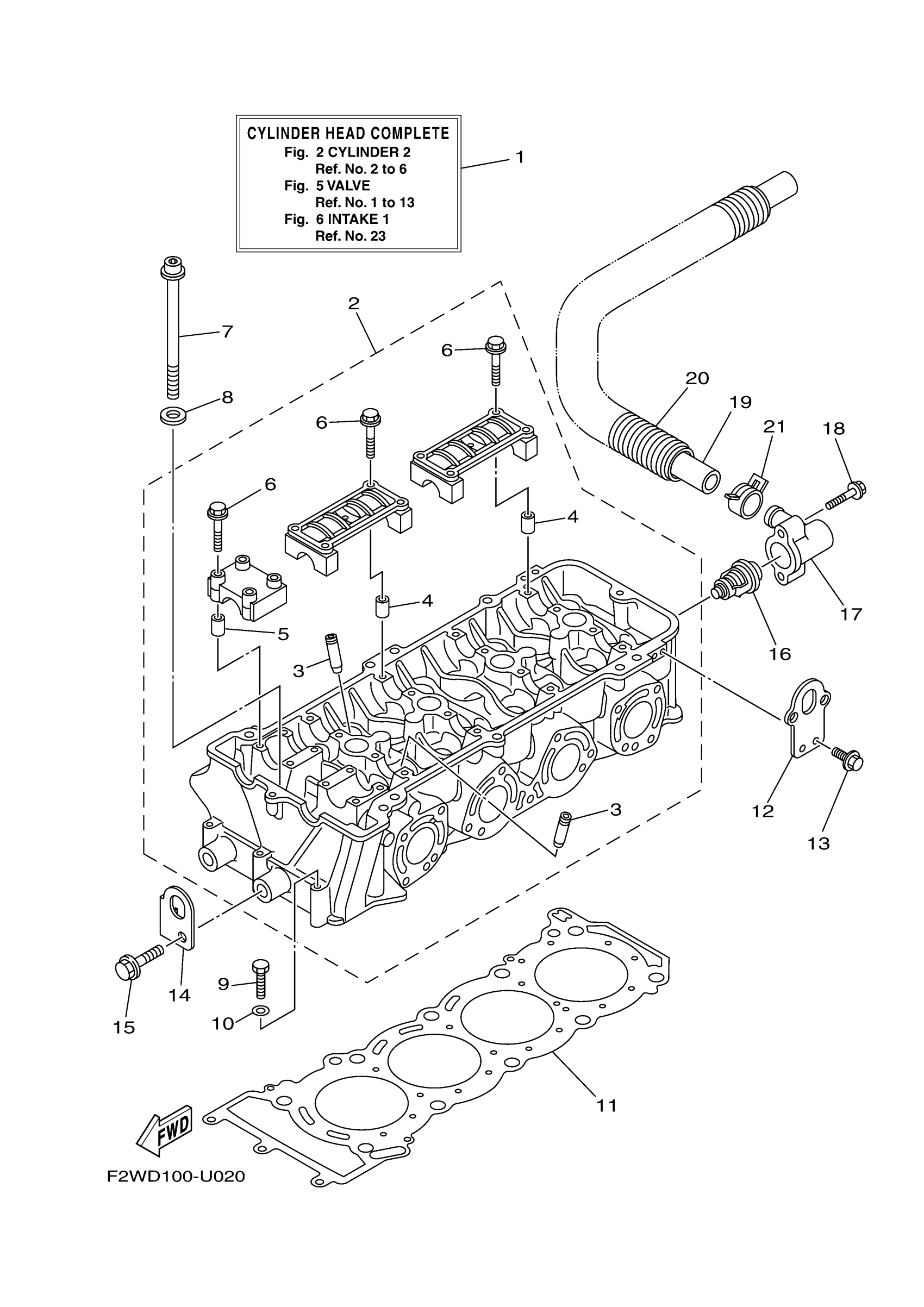

Yamaha GP1800DX (GP1800R HO_HO WITH AUDIO) F4M4 2022 CYLINDER 2 Diagram

#

Description
Price

1

CYLINDER HEAD COMPLETE

6BH-W009A-20-94

$5,097.04

2

CYLINDER HEAD ASSY

6BH-11102-20-00

$1,032.75

3

. GUIDE, VALVE 1

6S5-11133-10-00

$44.45

4

. PIN, DOWEL

91809-16002-00

$2.16

5

. PIN, DOWEL

91809-16002-00

$2.16

6

. BOLT, FLANGE

90105-07009-00

$3.03

7

BOLT

6S5-12228-01-00

$16.66

8

WASHER

6HL-12456-00-00

$2.13

9

BOLT(64D)

97013-06055-00

Unavailable

10

WASHER, PLAIN (646)

92990-06600-00

$2.38

11

GASKET, CYLINDER HEAD 1

6JC-11181-00-00

$119.63

12

HANGER, ENGINE 2

6BH-1111E-00-00

$22.78

13

BOLT, WITH WASHER

90119-06078-00

$2.21

14

HANGER, ENGINE

6BH-11119-00-00

$22.78

15

BOLT, WITH WASHER

97513-10525-00

$2.80

16

THERMOSTAT

6D3-12411-00-00

$95.37

17

COVER, THERMOSTAT

6BH-12413-00-00

$34.19

18

BOLT, FLANGE

90105-06035-00

$2.01

19

HOSE 3

6S5-12578-00-00

$60.28

20

TUBE (L850)

90447-28008-00

$18.37

21

CLIP

90467-240A0-00

$5.69
