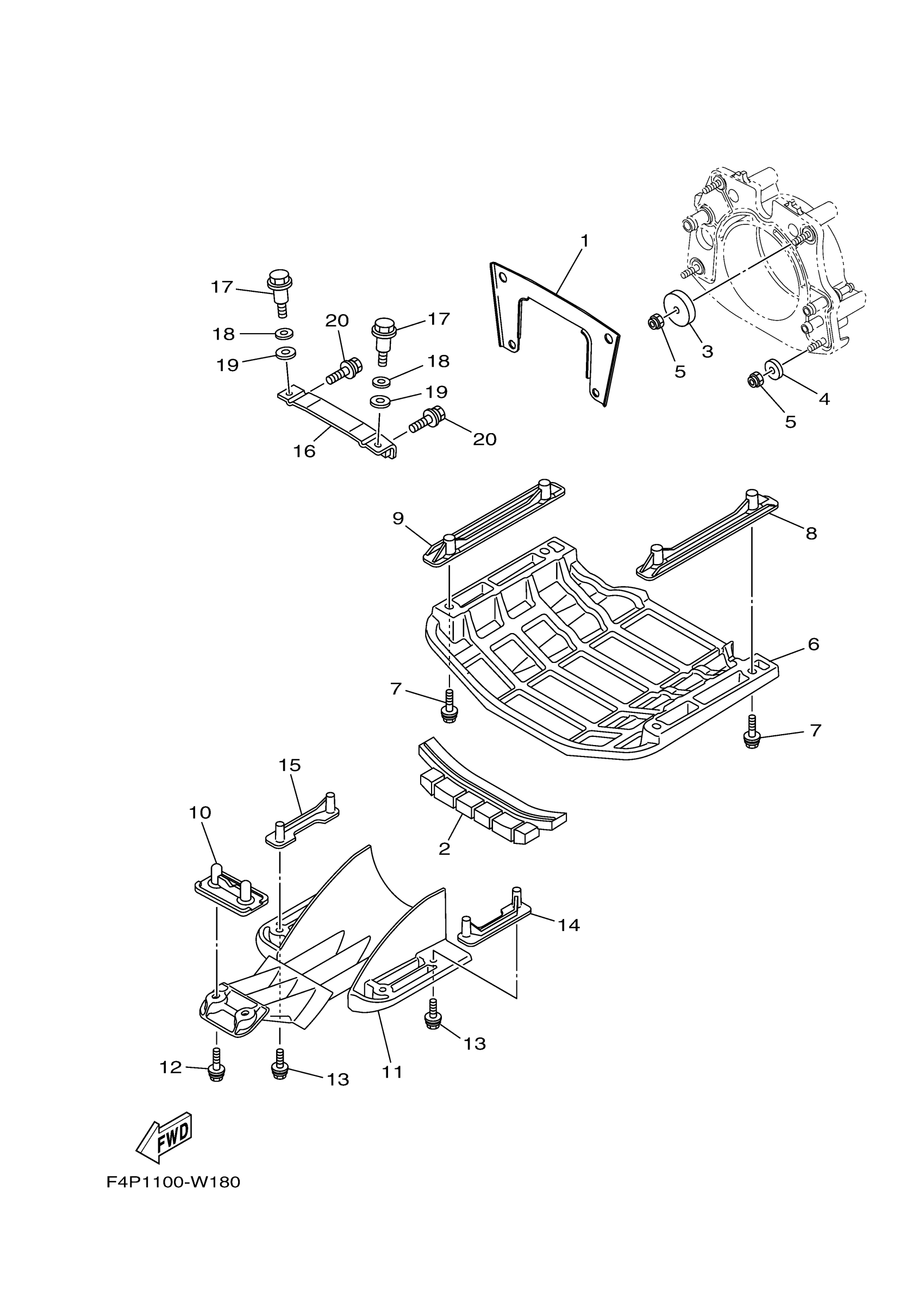

Yamaha GP1800CY (GP1800R SVHO_SVHO WITH AUDIO) F4P6 2023 JET UNIT 4 Diagram

#

Description
Price

1

BRACKET

6EY-R1959-00-00

$15.07

2

SPACER

F2X-U72C0-00-00

$15.79

3

WASHER

F1S-U725E-01-00

$8.61

4

WASHER, PLATE

90201-10801-00

$3.65

5

NUT, NYLON

9572R-10300-00

$3.52

6

PLATE 2

F4P-U273B-00-00

$123.51

7

BOLT, WITH WASHER

90119-08829-00

$4.09

8

BRACKET 2

F2X-U8572-00-00

$13.63

9

BRACKET 2

F2X-U8572-00-00

$13.63

10

BRACKET, 3

F2S-U8577-00-00

Unavailable

11

SCREEN, INTAKE

F4P-U72B7-00-00

$89.69

12

BOLT, WITH WASHER

90119-08829-00

$4.09

13

BOLT, WITH WASHER

90119-08844-00

$1.37

14

BRACKET 1

F3P-U8571-00-00

$7.89

15

BRACKET 1

F3P-U8571-00-00

$7.89

16

BRACKET

F2C-U7557-01-00

$29.40

17

BOLT

90109-08043-00

$3.97

18

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

19

GASKET

90430-12002-00

$1.70

20

BOLT, WITH WASHER

90119-08800-00

$4.31
