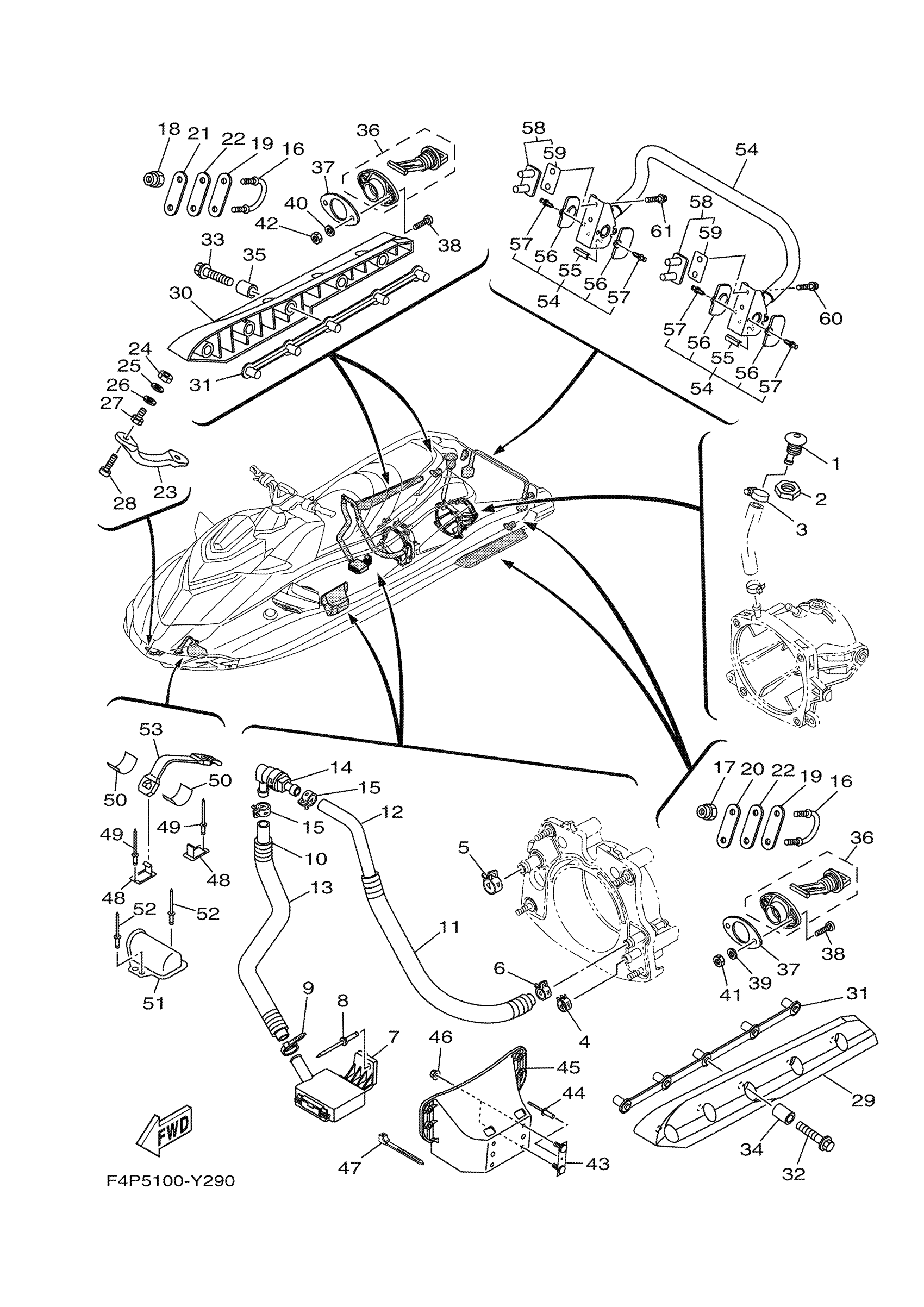

Yamaha GP1800CY (GP1800R SVHO_SVHO WITH AUDIO) F4P6 2023 HULL & DECK Diagram

#

Description
Price

1

SPOUT

F1W-U269B-00-00

Unavailable

2

NUT

EU0-61652-00-00

Unavailable

3

BAND, HOSE 18

90601-118UF-00

Unavailable

4

CLIP

90467-200A3-00

Unavailable

5

CLIP

90467-240A3-00

Unavailable

6

CLIP

90467-190A2-00

Unavailable

7

STRAINER, BILGE

F1B-U761D-02-00

Unavailable

8

RIVET, BLIND

90267-489U8-00

Unavailable

9

CLAMP

90465-10098-00

Unavailable

10

HOSE (L860)

90445-20804-00

Unavailable

11

TUBE,2

6EX-U773E-00-00

Unavailable

12

HOSE (L500)

90445-20800-00

Unavailable

13

TUBE

6EX-U773D-00-00

Unavailable

14

JOINT, HOSE

68N-5112T-00-00

Unavailable

15

CLIP

90467-190A2-00

Unavailable

16

STERN EYE

F2N-U1628-02-00

Unavailable

17

NUT, NYLON (6J8)

95780-08300-00

Unavailable

18

NUT, NYLON (6J8)

95780-08300-00

Unavailable

19

PLATE A

GP7-U4953-10-00

Unavailable

20

PLATE A

GP7-U4953-10-00

Unavailable

21

PLATE A

GP7-U4953-10-00

Unavailable

22

PACKING

F1B-U1653-03-00

Unavailable

23

BOW EYE 1

F1K-61624-00-00

Unavailable

24

NUT.HEX.(COARS)

99780-12600-00

Unavailable

25

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

26

WASHER

F0X-61637-00-00

Unavailable

27

NUT

F0X-61652-01-00

Unavailable

28

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

Unavailable

29

STABILIZER LH

F1S-U883N-01-00

Unavailable

30

STABILIZER RH

F1S-U883P-01-00

Unavailable

31

BRACKET,STABILIZER

F1X-U883T-02-00

Unavailable

32

BOLT,WASHER BASED

90105-088F9-00

Unavailable

33

BOLT,WASHER BASED

90105-088F9-00

Unavailable

34

SPACER

F2N-U8169-10-00

Unavailable

35

SPACER

F2N-U8169-10-00

Unavailable

36

DRAIN PLUG ASSY

F1S-U2280-02-00

Unavailable

37

PACKING, DRAIN

F1S-U2285-01-00

Unavailable

38

SCREW, PAN HEAD

9788R-05025-00

Unavailable

39

WASHER

9299R-05200-00

Unavailable

40

WASHER

9299R-05200-00

Unavailable

41

NUT, FLANGE

9572R-05300-00

Unavailable

42

NUT, FLANGE

9572R-05300-00

Unavailable

43

BRACKET

F1K-U826C-03-00

Unavailable

44

RIVET (EU0)

90267-48938-00

Unavailable

45

BRACKET 2

F4P-U8572-00-00

Unavailable

46

NUT, LOCK

F3Y-U142L-00-00

Unavailable

47

CLAMP

90464-32801-00

Unavailable

48

HOOK A

F1K-U5772-04-00

Unavailable

49

RIVET (EU0)

90267-48938-00

Unavailable

50

MAT 2

F1K-U759C-00-00

Unavailable

51

BOX, FIRE EXTINGUISHER

F2X-U5983-00-00

Unavailable

52

RIVET, BLIND

90267-48802-00

Unavailable

53

BAND 1

F2P-U828K-00-00

Unavailable

54

LADDER, STEP ASSY

F2X-U278A-00-00

Unavailable

55

. SLEEVE 1

F1W-U771H-00-00

Unavailable

56

. INNER, COVER SIDE 1

F2C-U377H-00-00

Unavailable

57

. PIN

F2C-U1314-00-00

Unavailable

58

BRACKET, LADDER LH

F2S-U278F-01-00

Unavailable

59

PACKING, BRKT. 1

F2S-U278H-01-00

Unavailable

60

BOLT, WITH WASHER

90119-08844-00

Unavailable

61

BOLT, WITH WASHER

90119-08844-00

Unavailable
