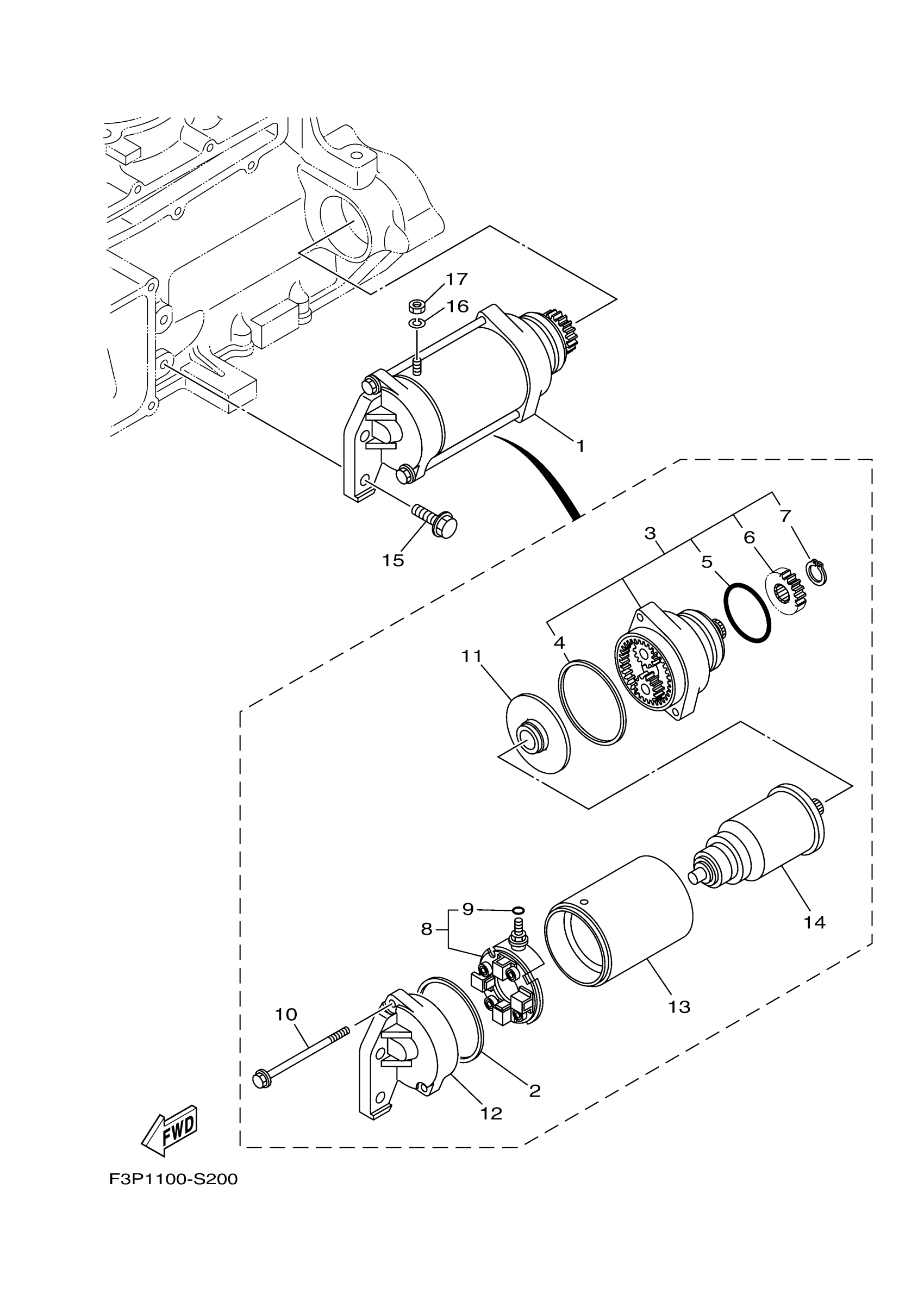

Yamaha GP1800CX (GP1800R SVHO_SVHO WITH AUDIO) F4P4 2022 STARTING MOTOR Diagram

Description

Price

STARTING MOTOR ASSY

6S5-81800-00-00

$593.53

GASKET

35C-81844-00-00

Unavailable

. FRONT BRACKET ASSY

6S5-81830-00-00

$269.68

GASKET

4G0-81844-00-00

Unavailable

O-RING

1J7-81847-60-00

$33.68

.. GEAR, STARTING MOTOR

5EL-15511-00-00

$99.98

CIRCLIP(10Y)

99009-12400-00

$2.87

. BRUSH HOLDER ASSY

6S5-81840-00-00

$77.26

.. O-RING

3TB-81847-00-00

$2.27

. BOLT

6S5-81826-00-00

$43.92

. PLATE

5EL-81845-00-00

$40.89

. REAR BRACKET ASSY

6S5-81820-00-00

$172.71

. STATOR ASSY

6S5-81810-00-00

$204.53

. ARMATURE ASSY

5A8-81850-10-00

$359.08

BOLT, WITH WASHER (62X)

97513-08530-00

$2.64

WASHER, SPRING

92995-06100-00

$2.95

NUT(650)

95380-06700-00

Unavailable
