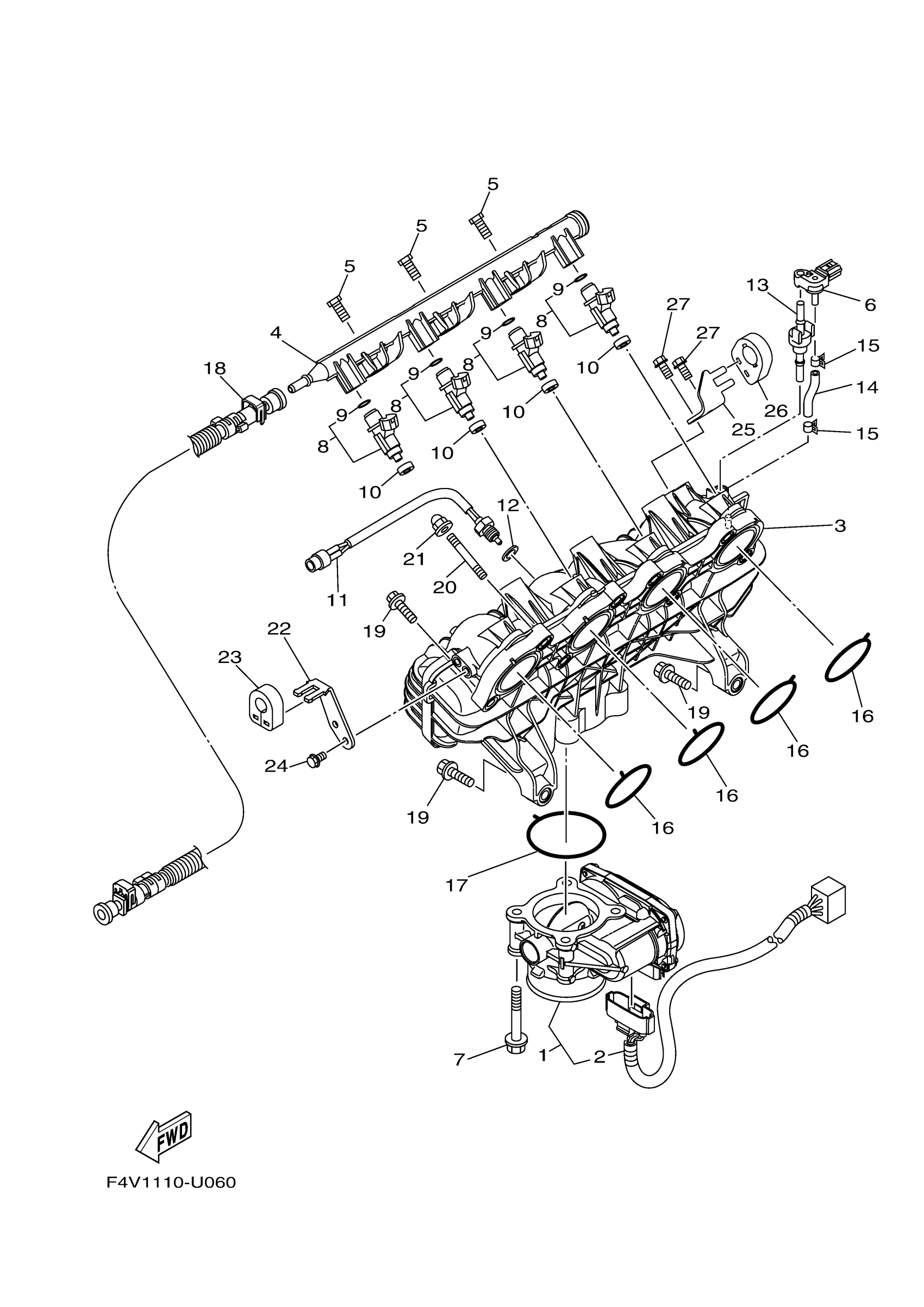

Yamaha GP1800CX (GP1800R SVHO_SVHO WITH AUDIO) F4P4 2022 INTAKE 1 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

6ET-13750-01-00

Unavailable

2

. WIRE, SUB LEAD

6S5-82509-00-00

$118.17

3

MANIFOLD, INTAKE 1

6ET-13641-11-00

$349.98

4

DELIVERY PIPE

6CS-12880-00-00

$165.14

5

BOLT

6CS-14446-00-00

$9.08

6

. SENSOR, PRESSURE

6BH-82380-00-00

$278.77

7

BOLT, FLANGE

90105-08243-00

$1.82

8

INJECTOR

6ET-13761-00-00

$196.95

9

. O-RING

68V-1416A-00-00

$10.18

10

. GASKET, MANIFOLD

8FP-13556-10-00

$5.55

11

SENSOR, AIR TEMPERATURE

6S5-85886-00-00

$156.05

12

. WASHER

6S5-14285-00-00

$2.19

13

GROMMET

6BH-14445-00-00

$20.99

14

HOSE, VACUUM SENSING 3

69J-13532-00-00

$9.99

15

CLIP

6S5-14159-01-00

$12.62

16

. GASKET, INSULATING

6ET-14156-00-00

$14.07

17

. GASKET, INSULATING

6EY-14156-00-00

$50.99

18

FUEL HOSE ASSY

6AN-2450B-10-00

$122.71

19

BOLT, WITH WASHER

97513-08535-00

$1.74

20

BOLT, STUD

90116-08032-00

$3.33

21

NUT, CROWN(4BR)

90176-08080-00

Unavailable

22

PLATE, STAY

6ET-14572-00-00

$6.36

23

GROMMET

6CS-14445-01-00

$5.45

24

BOLT, FLANGE D/R (

95E33-06012-00

Unavailable

25

PLATE, STAY

6CS-14572-00-00

$7.27

26

GROMMET

6ET-14445-01-00

$9.08

27

BOLT, FLANGE D/R (

95E33-06012-00

Unavailable
