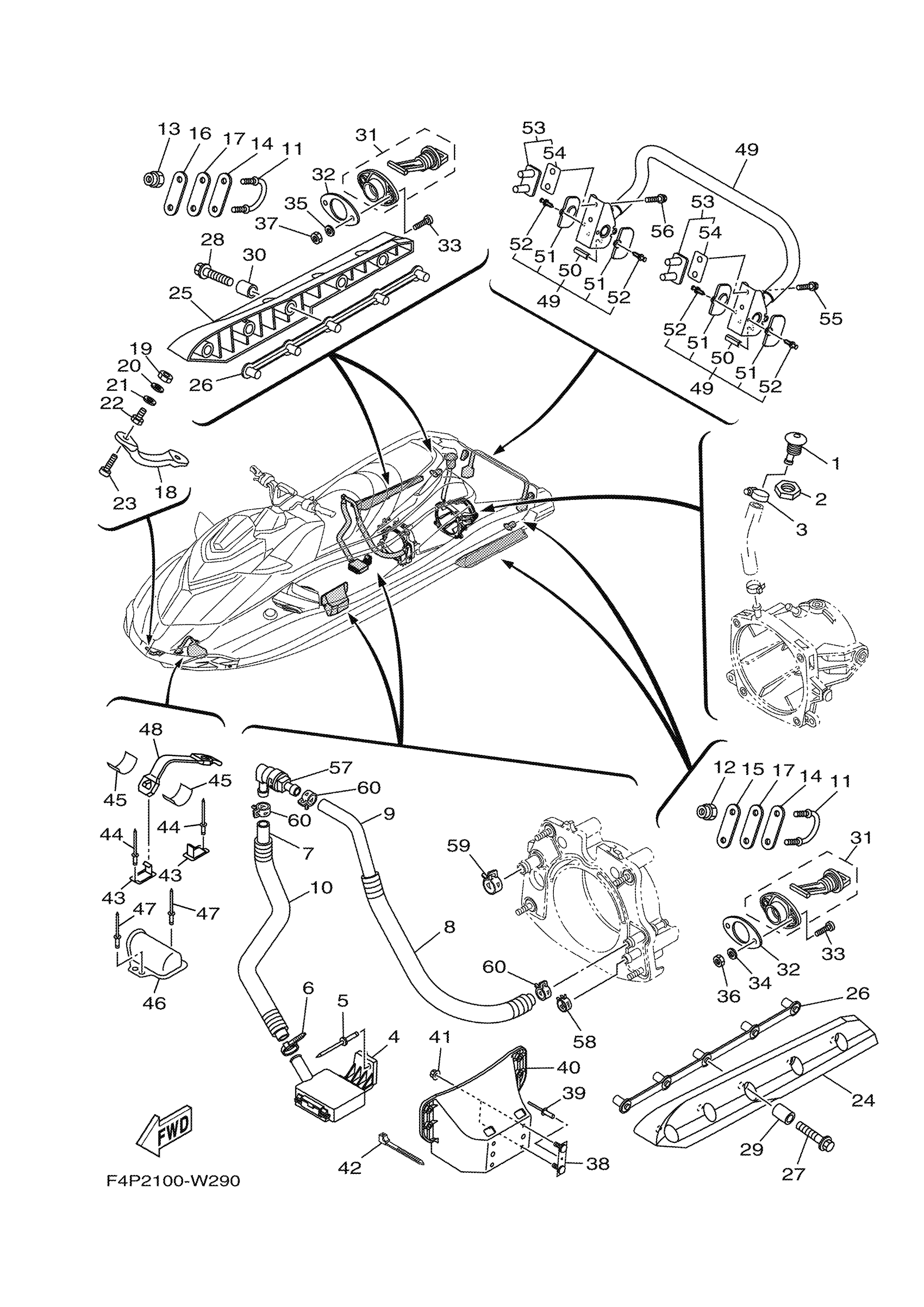

Yamaha GP1800CX (GP1800R SVHO_SVHO WITH AUDIO) F4P4 2022 HULL & DECK Diagram

#

Description
Price

1

SPOUT

F1W-U269B-00-00

$1.80

2

NUT

EU0-61652-00-00

$11.48

3

BAND, HOSE 18

90601-118UF-00

$2.07

4

STRAINER, BILGE

F1B-U761D-02-00

$5.15

5

RIVET, BLIND

90267-489U8-00

$0.99

6

CLAMP

90465-10098-00

$1.68

7

HOSE (L860)

90445-20804-00

$12.86

8

TUBE,2

6EX-U773E-00-00

$6.06

9

HOSE (L500)

90445-20800-00

$12.86

10

TUBE

6EX-U773D-00-00

$3.73

11

STERN EYE

F2N-U1628-02-00

$4.96

12

NUT, NYLON (6J8)

95780-08300-00

$10.55

13

NUT, NYLON (6J8)

95780-08300-00

$10.55

14

PLATE A

GP7-U4953-10-00

$3.52

15

PLATE A

GP7-U4953-10-00

$3.52

16

PLATE A

GP7-U4953-10-00

$3.52

17

PACKING

F1B-U1653-03-00

Unavailable

18

BOW EYE 1

F1K-61624-00-00

$42.60

19

NUT.HEX.(COARS)

99780-12600-00

$2.80

20

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

21

WASHER

F0X-61637-00-00

$1.29

22

NUT

F0X-61652-01-00

Unavailable

23

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

$3.18

24

STABILIZER LH

F1S-U883N-01-00

$33.32

25

STABILIZER RH

F1S-U883P-01-00

$33.32

26

BRACKET,STABILIZER

F1X-U883T-02-00

$43.92

27

BOLT,WASHER BASED

90105-088F9-00

$2.91

28

BOLT,WASHER BASED

90105-088F9-00

$2.91

29

SPACER

F2N-U8169-10-00

$1.15

30

SPACER

F2N-U8169-10-00

$1.15

31

DRAIN PLUG ASSY

F1S-U2280-02-00

$12.20

32

PACKING, DRAIN

F1S-U2285-01-00

Unavailable

33

SCREW, PAN HEAD

9788R-05025-00

$2.52

34

WASHER

9299R-05200-00

$3.16

35

WASHER

9299R-05200-00

$3.16

36

NUT, FLANGE

9572R-05300-00

$1.43

37

NUT, FLANGE

9572R-05300-00

$1.43

38

BRACKET

F1K-U826C-03-00

$12.86

39

RIVET (EU0)

90267-48938-00

$5.00

40

BRACKET 2

F4P-U8572-00-00

$46.95

41

NUT, LOCK

F3Y-U142L-00-00

$2.52

42

CLAMP

90464-32801-00

$1.23

43

HOOK A

F1K-U5772-04-00

$6.29

44

RIVET (EU0)

90267-48938-00

$5.00

45

MAT 2

F1K-U759C-00-00

$1.72

46

BOX, FIRE EXTINGUISHER

F2X-U5983-00-00

$4.39

47

RIVET, BLIND

90267-48802-00

$1.98

48

BAND 1

F2P-U828K-00-00

$5.87

49

LADDER, STEP ASSY

F2X-U278A-00-00

$127.50

50

. SLEEVE 1

F1W-U771H-00-00

$22.97

51

. INNER, COVER SIDE 1

F2C-U377H-00-00

$3.29

52

. PIN

F2C-U1314-00-00

$2.44

53

BRACKET, LADDER LH

F2S-U278F-01-00

Unavailable

54

PACKING, BRKT. 1

F2S-U278H-01-00

Unavailable

55

BOLT, WITH WASHER

90119-08844-00

$1.29

56

BOLT, WITH WASHER

90119-08844-00

$1.29

57

JOINT, HOSE

68N-5112T-00-00

$48.96

58

CLIP

90467-200A3-00

$5.92

59

CLIP

90467-240A3-00

$2.69

60

CLIP

90467-190A2-00

$3.18
