CRANKCASE

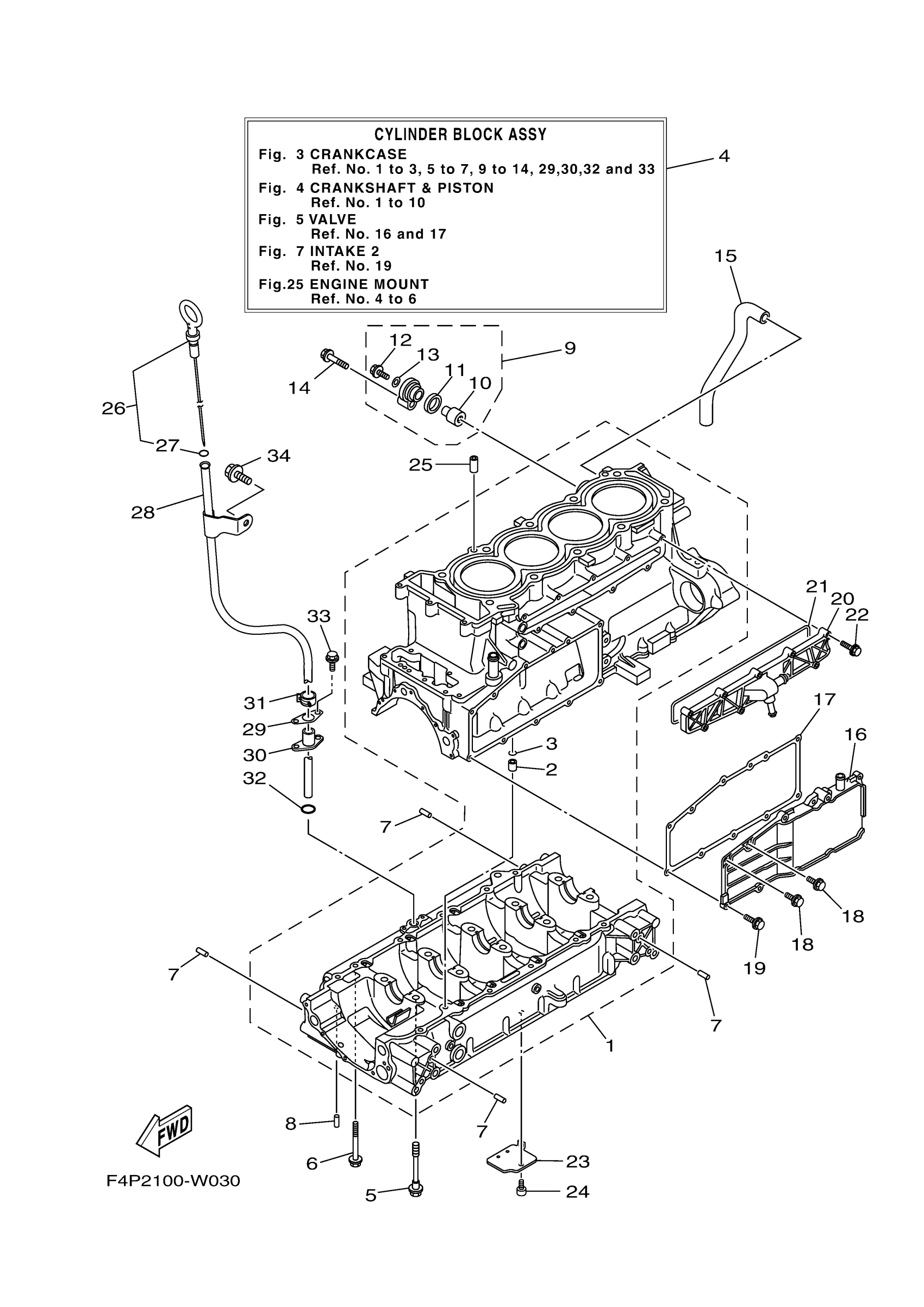

Yamaha GP1800CX (GP1800R SVHO_SVHO WITH AUDIO) F4P4 2022 CRANKCASE Diagram
#
1
CRANKCASE ASSY
6CS-15100-20-00
Unavailable
2
PIN, DOWEL(3VD)
99530-10114-00
$2.55
3
O-RING (4G0)
93210-11453-00
$7.49
4
CYLINDER BLOCK ASSY
6CS-W009B-21-94
Unavailable
5
. BOLT, FLANGE
90105-10071-00
Unavailable
6
BOLT, FLANGE(3JP)
95814-06070-00
$8.49
7
PIN, DOWEL (614)
93606-12019-00
$4.24
8
PIN, DOWEL
93604-10M03-00
Unavailable
9
ANODE COVER ASSY
69J-11301-11-00
$16.99
10
. ANODE
68V-11325-02-00
Unavailable
11
GROMMET, ANODE
67F-11328-01-00
Unavailable
12
BOLT (689)
90105-06M07-00
$1.54
13
. GASKET
90430-06M03-00
Unavailable
14
BOLT, HEXAGON W/W DEEP RECESS
97E95-08540-00
Unavailable
15
HOSE
6S5-11377-00-00
Unavailable
16
COVER
6S5-1131M-10-8P
Unavailable
17
. GASKET
6BH-13557-00-00
Unavailable
18
BOLT, FLANGE DEEP
95E34-06014-00
Unavailable
19
BOLT, FLANGE DEEP
95E34-06020-00
Unavailable
20
JOINT 1
6CS-12469-A0-00
Unavailable
21
. GASKET, WATER INLET
6CS-12517-00-00
Unavailable
22
BOLT, FLANGE
95814-06035-00
Unavailable
23
PLATE, BAFFLE LOWER
6S5-13337-10-00
Unavailable
24
BOLT,SOCKET
91317-06012-00
Unavailable
25
PIN, DOWEL(3VD)
99530-10114-00
$2.55
26
PLUG, OIL LEVEL
6ET-15362-00-00
Unavailable
27
O-RING (26H)
93210-06632-00
Unavailable
28
PIPE, OIL LEVEL
6JC-8572F-00-00
Unavailable
29
. PLATE
6BH-1319K-00-00
Unavailable
30
SPACER
6CS-85516-00-00
Unavailable
31
. CLIP
90467-150A1-00
Unavailable
32
. O-RING
93210-12016-00
Unavailable
33
BOLT
90109-06268-00
Unavailable
34
BOLT, WASHER BASED
90105-08021-00
Unavailable
