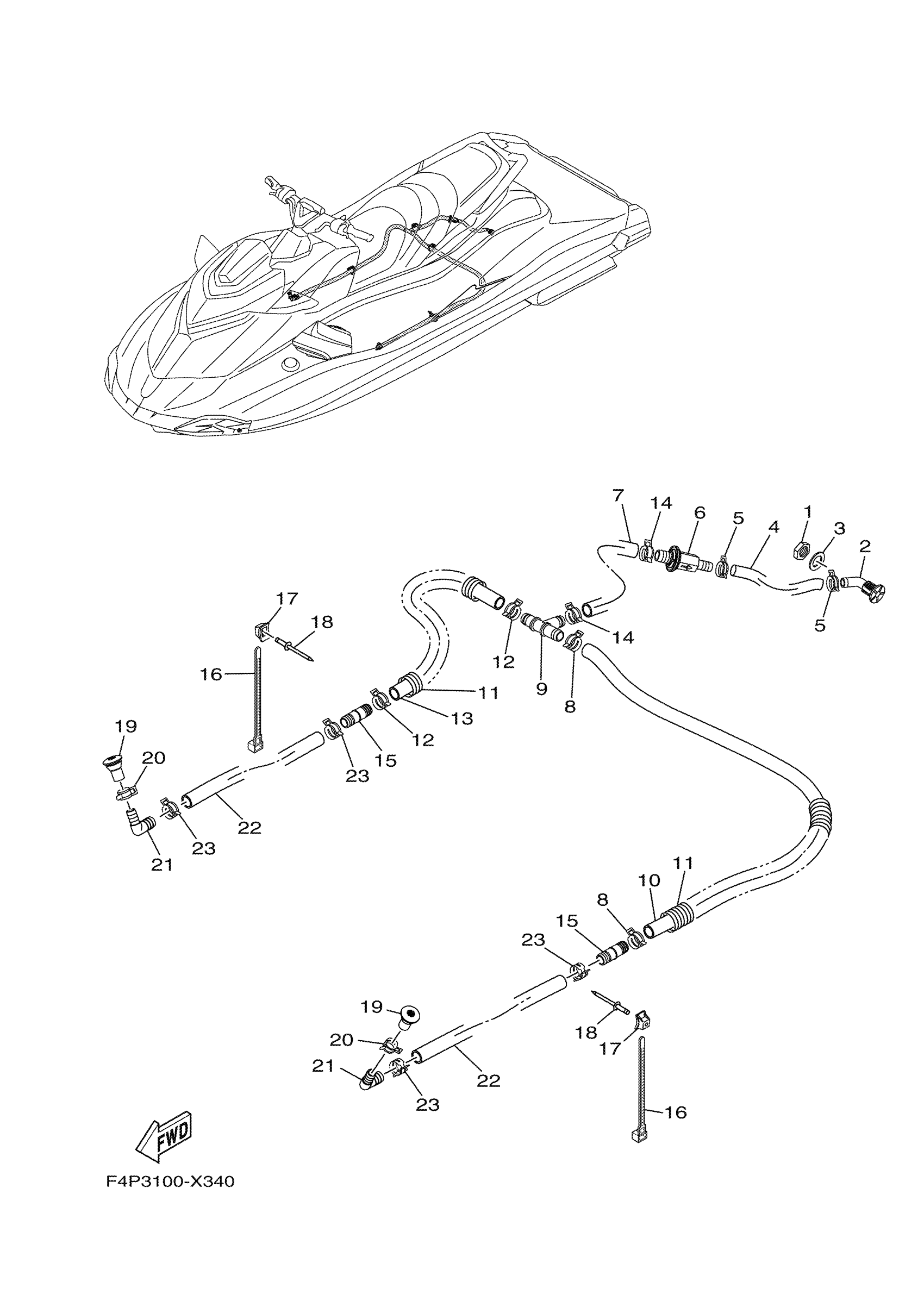

Yamaha GP1800CX (GP1800R SVHO_SVHO WITH AUDIO) F4P4 2022 BILGE PUMP Diagram

#

Description
Price

1

NUT, DRAIN 1

F3X-U224B-00-00

$0.86

2

BODY, DRAIN 1

F3X-U224C-00-00

$1.51

3

GASKET

F3X-U7564-00-00

$1.15

4

HOSE, DRAIN 3

F4P-U7628-00-00

$93.92

5

CLIP

90467-17802-00

$2.87

6

CHECK VALVE

F3X-U7767-00-00

$13.63

7

HOSE 1

F4P-U7626-00-00

$49.98

8

BAND

90601-200U1-00

$2.77

9

JOINT,HOSE

F3X-U7857-00-00

$2.16

10

HOSE, DRAIN 2

F4P-U7629-01-00

$17.94

11

TUBE

6EX-U773D-00-00

$3.73

12

BAND

90601-200U1-00

$2.77

13

HOSE, DRAIN

F4P-U2249-01-00

$7.85

14

BAND

90601-200U1-00

$2.77

15

JOINT, DRAIN

F3X-U7617-00-00

$1.51

16

CLAMP

90464-32801-00

$1.23

17

BASE, CLAMP

F1W-U828M-00-00

$1.23

18

RIVET, BLIND

90267-48802-00

$1.98

19

PLUG,DRAIN

F4P-U2255-00-00

$1.37

20

BAND

90601-200U1-00

$2.77

21

CONNECTOR

F3X-U8377-00-00

$1.43

22

HOSE 1

F4P-U7626-00-00

$49.98

23

BAND

90601-200U1-00

$2.77
