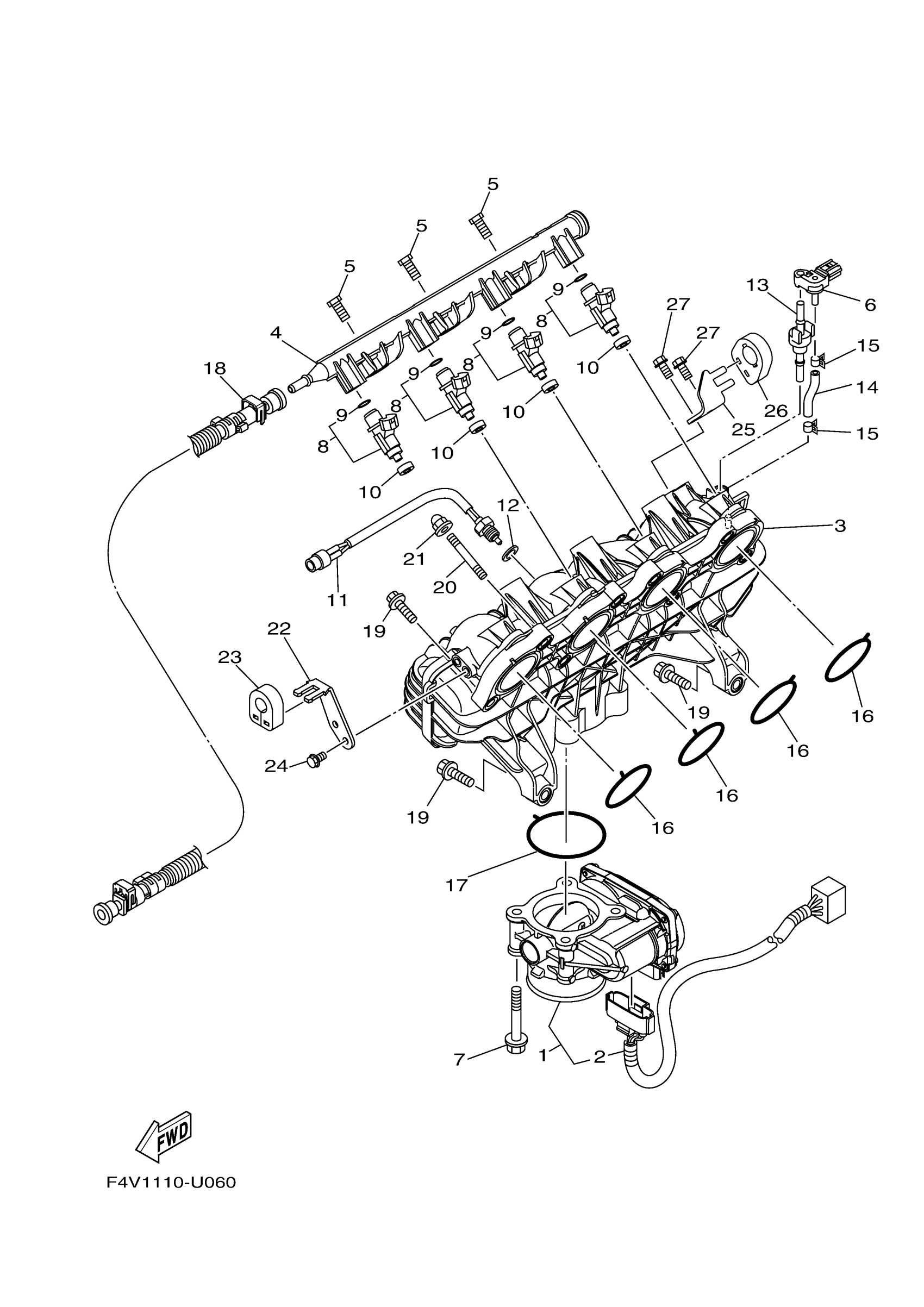

Yamaha GP1800CW (GP1800R SVHO WITH AUDIO) F4P2 2021 INTAKE 1 Diagram

#

Description

Price

1

THROTTLE BODY ASSY

6ET-13750-01-00

Unavailable

2

. WIRE, SUB LEAD

6S5-82509-00-00

Unavailable

3

MANIFOLD, INTAKE 1

6ET-13641-11-00

Unavailable

4

DELIVERY PIPE

6CS-12880-00-00

Unavailable

5

BOLT

6CS-14446-00-00

Unavailable

6

. SENSOR, PRESSURE

6BH-82380-00-00

Unavailable

7

BOLT, FLANGE

90105-08243-00

Unavailable

8

INJECTOR

6ET-13761-00-00

Unavailable

9

. O-RING

68V-1416A-00-00

Unavailable

10

. GASKET, MANIFOLD

8FP-13556-10-00

Unavailable

11

SENSOR, AIR TEMPERATURE

6S5-85886-00-00

Unavailable

12

. WASHER

6S5-14285-00-00

Unavailable

13

GROMMET

6BH-14445-00-00

Unavailable

14

HOSE

5PS-14987-00-00

$5.88

15

CLIP

6S5-14159-01-00

$13.99

16

. GASKET, INSULATING

6ET-14156-00-00

Unavailable

17

. GASKET, INSULATING

6EY-14156-00-00

Unavailable

18

FUEL HOSE ASSY

6AN-2450B-10-00

Unavailable

19

BOLT, WITH WASHER

97513-08535-00

Unavailable

20

BOLT, STUD

90116-08032-00

Unavailable

21

NUT, CROWN(4BR)

90176-08080-00

Unavailable

22

PLATE, STAY

6ET-14572-00-00

Unavailable

23

GROMMET

6CS-14445-01-00

Unavailable

24

BOLT, FLANGE(2UJ)

95024-06012-00

Unavailable

25

PLATE, STAY

6CS-14572-00-00

Unavailable

26

GROMMET

6ET-14445-01-00

Unavailable

27

BOLT, FLANGE(2UJ)

95024-06012-00

Unavailable
