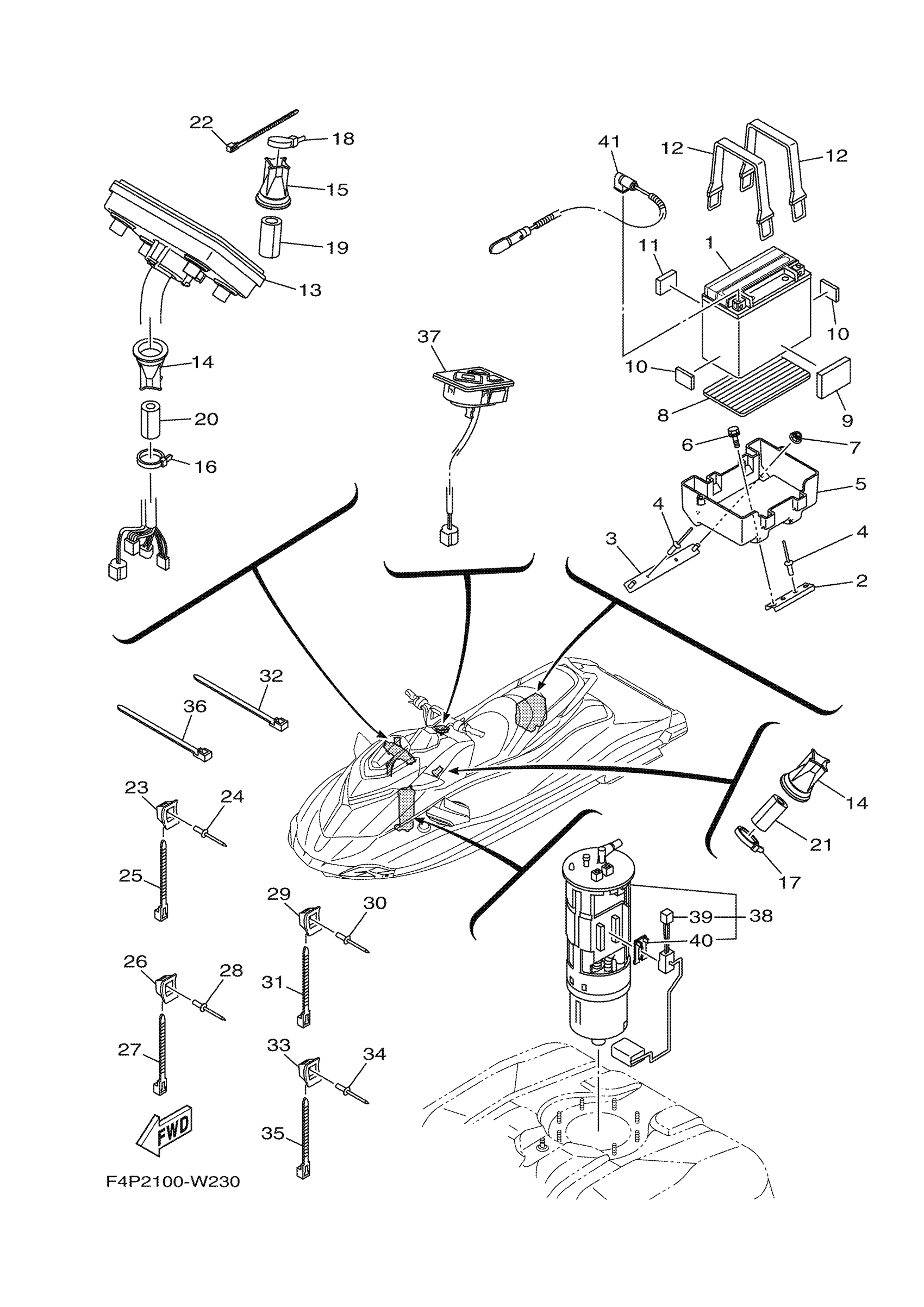

Yamaha GP1800CW (GP1800R SVHO WITH AUDIO) F4P2 2021 ELECTRICAL 3 Diagram

#

Description
Price

1

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

$163.95

2

PLATE, BASE 2

F2S-U8592-00-00

$5.83

3

PLATE, BASE 3

F2S-U8593-00-00

$5.45

4

RIVET (EU0)

90267-48938-00

$5.00

5

CASE, BATTERY

F2S-U8211-00-00

$9.62

6

BOLT, WITH WASHER

90119-06820-00

$3.52

7

NUT, LOCK

F2N-U142L-00-00

$1.00

8

PAD, BATTERY

F1S-U8221-00-00

$2.75

9

MAT 2

F1W-U759C-01-00

$2.50

10

PAD, BATTERY

EU0-U8221-31-00

$1.65

11

PACKING

F2C-U1743-00-00

$1.87

12

BAND, BATTERY 1

F4P-U821D-00-00

$12.20

13

METER ASSY

F4P-U820A-02-00

$442.40

14

GROMMET

F3J-U822E-01-00

$5.59

15

GROMMET

F3J-U822E-01-00

$5.59

16

CLAMP

90464-32801-00

$1.23

17

CLAMP

90464-32801-00

$1.23

18

CLAMP

90464-32801-00

$1.23

19

PACKING, HOSE 2

GJ1-U7578-22-00

Unavailable

20

PACKING, HOSE 2

GJ1-U7578-12-00

Unavailable

21

PACKING, HOSE 2

GJ1-U7578-12-00

Unavailable

22

CLAMP(JN6)

90464-31827-00

Unavailable

23

BASE, CLAMP

F1W-U828M-00-00

$1.23

24

RIVET, BLIND

90267-48806-00

$2.00

25

CLAMP

90464-32801-00

$1.23

26

BASE, CLAMP

F1W-U828M-00-00

$1.23

27

CLAMP

90464-32801-00

$1.23

28

RIVET, BLIND

90267-48806-00

$2.00

29

BASE, CLAMP

F1W-U828M-00-00

$1.23

30

RIVET, BLIND

90267-48806-00

$2.00

31

CLAMP

90464-32801-00

$1.23

32

CLAMP

90464-99804-00

$4.17

33

BASE, CLAMP

F1W-U828M-00-00

$1.23

34

RIVET, BLIND

90267-48806-00

$2.00

35

CLAMP

90464-99804-00

$4.17

36

BAND

90601-200U2-00

$3.16

37

SWITCH ASSY.

F4P-U8090-02-00

$74.68

38

FUEL PUMP COMP.

6S5-13907-05-00

$1,050.38

39

FUEL SENDER ASSY SET

99999-04571-00

Unavailable

40

DAMPER, STOPPER

60E-82556-10-00

$18.49

41

WIRE, MINUS LEAD

6JP-82116-00-00

$65.14
