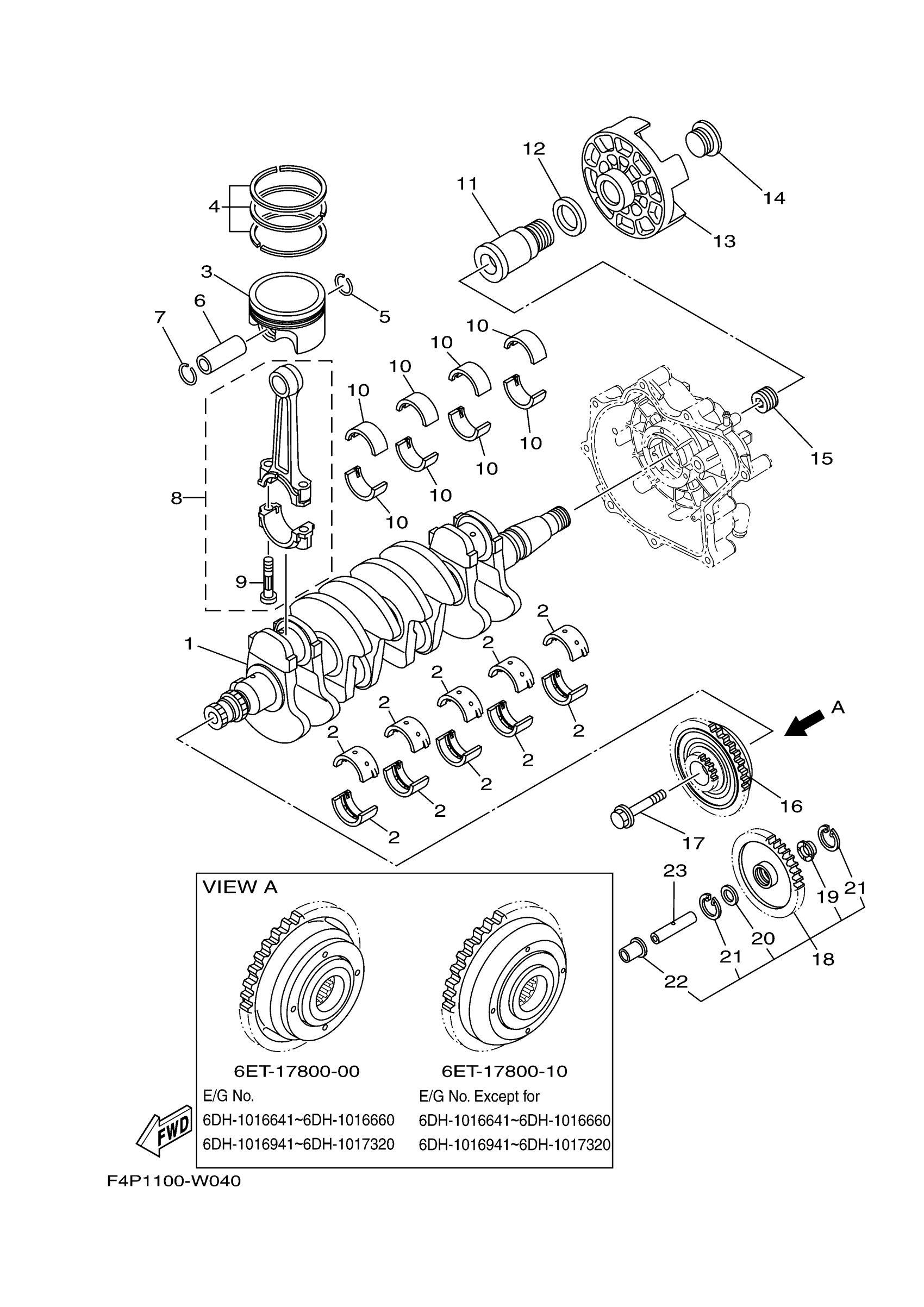

Yamaha GP1800CW (GP1800R SVHO WITH AUDIO) F4P2 2021 CRANKSHAFT & PISTON Diagram

#

Description
Price

1

CRANKSHAFT

6LE-11411-00-00

$2,656.05

2

PLANE BEARING, CRANKSHAFT 1

6S5-11416-00-00

$14.81

2

PLANE BEARING, CRANKSHAFT 1

6S5-11416-10-00

$14.81

2

PLANE BEARING, CRANKSHAFT 1

6S5-11416-20-00

$19.68

2

PLANE BEARING, CRANKSHAFT 1

6S5-11416-30-00

$13.70

2

PLANE BEARING, CRANKSHAFT 1

6S5-11416-40-00

$13.70

3

PISTON (STD)

6ET-11631-01-B0

$130.25

4

PISTON RING SET (STD)

6S5-11603-01-00

$55.57

5

CIRCLIP

93450-22174-00

$0.91

6

PIN, PISTON

6ET-11633-00-00

$26.30

7

CIRCLIP

93450-22174-00

$0.91

8

CONNECTING ROD ASSY

6S5-11650-10-00

$185.06

9

. BOLT, CONNECTING ROD

6S5-11654-10-00

$5.92

10

PLANE BEARING, CONNECTING ROD

6S5-11656-40-00

$11.85

10

PLANE BEARING, CONNECTING ROD

6S5-11656-50-00

$11.85

10

PLANE BEARING, CONNECTING ROD

6S5-11656-60-00

$11.85

10

PLANE BEARING, CONNECTING ROD

6S5-11656-70-00

$11.85

11

SHAFT, TRANSFER

6S5-17572-01-00

$252.88

12

WASHER

6S5-12289-00-00

$24.13

13

FLANGE, COUPLING

6S5-45813-01-00

Unavailable

14

HOLDER 2

6S5-17525-01-00

$76.99

15

NUT, SPECIAL

6S5-11459-01-00

$37.49

16

GEAR UNIT ASSY

99999-04514-00

Unavailable

16

GEAR UNIT ASSY

6ET-17800-10-00

$493.13

17

BOLT

6S5-17031-00-00

$34.75

18

. DRIVE GEAR & COLLAR SET (18T)

6S5-W1783-20-00

$384.20

19

. WASHER, THRUST

6S5-17529-00-00

$14.38

20

WASHER, PLATE

90201-13013-00

Unavailable

21

. CIRCLIP

99009-24700-00

$1.36

22

. COLLAR, GEAR

6S5-17585-10-00

$80.29

23

SHAFT, MIDDLE DRIVEN

6S5-17553-00-00

$31.80
