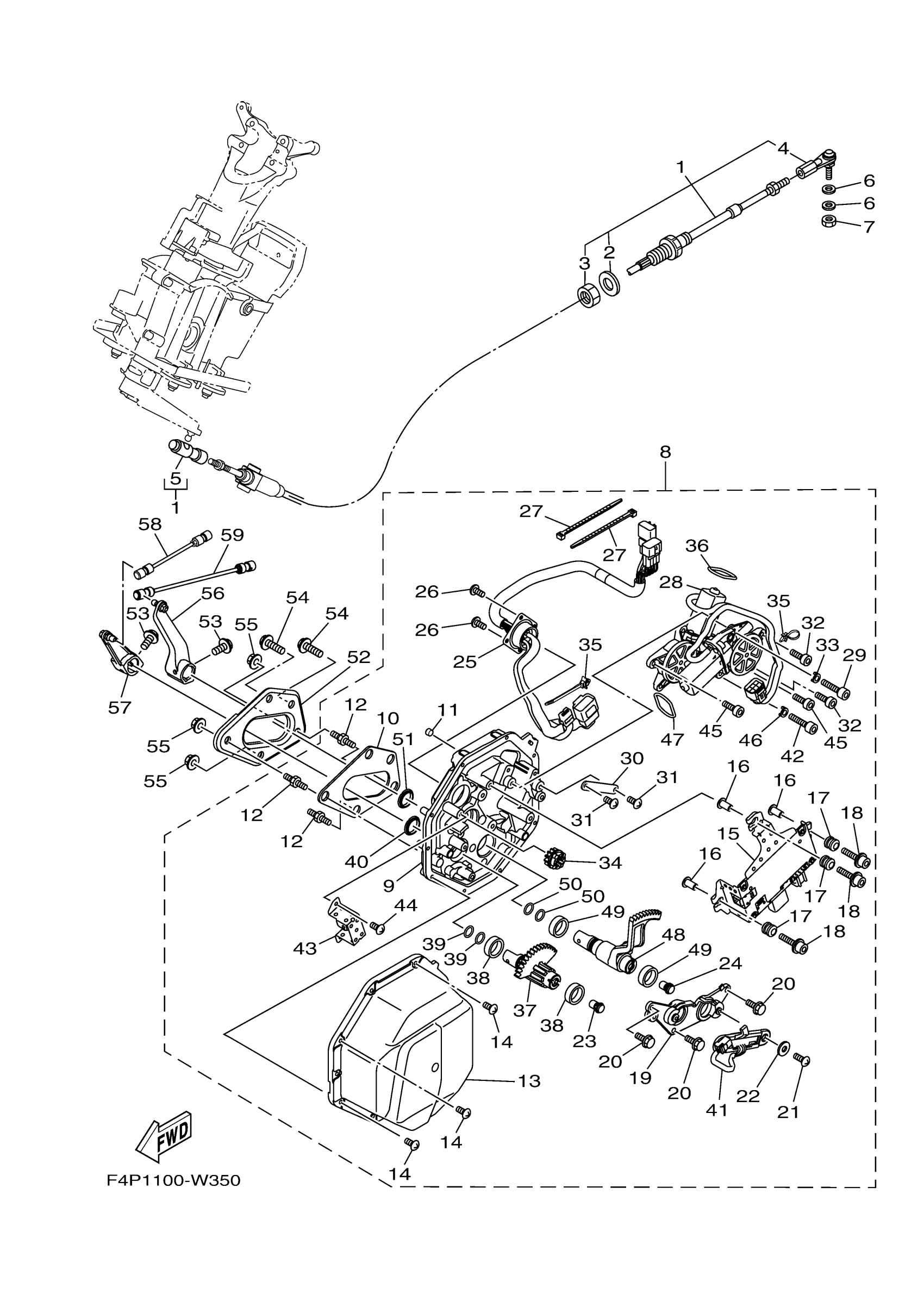

Yamaha GP1800CW (GP1800R SVHO WITH AUDIO) F4P2 2021 CONTROL CABLE Diagram

#

Description
Price

1

CABLE, STEERING

F1S-61481-12-00

$284.39

2

. PACKING C

F1B-61438-00-00

$2.72

3

NUT

F1B-6151S-01-00

$14.31

4

. STUD, JOINT BALL

F1B-61461-02-00

$95.44

5

. BALL JOINT ASSY

F2N-61460-00-00

$48.47

6

WASHER, PLATE

90201-06906-00

$2.80

7

NUT

9538R-06700-00

$1.01

8

MOTOR ASSY.

99999-04615-00

Unavailable

9

. HOUSING

F4P-6152K-00-00

$215.14

10

. SEAL

F3J-63262-00-00

$18.49

11

. PLUG

F3J-613D0-00-00

$11.99

12

. BOLT, STUD

F3J-67369-00-00

$6.36

13

. COVER

F3Y-6143J-00-00

$52.99

14

. SCREW

F3Y-68198-00-00

$3.64

15

. CONTROL UNIT

F4P-68197-00-00

$584.83

16

. COLLAR

90387-06119-00

$4.37

17

DAMPER, IGNITION C

6A0-82317-01-00

$6.39

18

. BOLT

F3J-613B4-20-00

$4.55

19

. PLATE

F4P-61256-00-00

$62.11

20

. BOLT, HEXAGON

F3J-613B3-00-00

$3.64

21

. SCREW

F3J-68198-20-00

$3.64

22

. WASHER, PLAIN

F3J-613C3-10-00

$3.70

23

. MAGNET, SENSOR

F3J-60428-00-00

$25.49

24

. MAGNET, SENSOR

F3J-60428-00-00

$25.49

25

. WIRE HARNESS ASSY

F4P-68270-00-00

$233.32

26

. SCREW

F3J-68198-00-00

$2.95

27

. CLAMP, WIRE

F3J-68273-00-00

$3.18

28

. MOTOR

F4P-68352-00-00

$315.14

29

. BOLT

F3J-613B4-00-00

$4.55

30

. PLATE

F3Y-61348-00-00

$4.55

31

. SCREW

F3J-68198-20-00

$3.64

32

. BOLT

F3J-613B4-10-00

$2.19

33

. SPACER

F3J-61492-00-00

$7.27

34

. GEAR 1

F4P-60211-00-00

$116.65

35

. CLAMP

F4P-68273-00-00

$4.09

36

. O-RING

F4P-613A5-10-00

$4.55

37

SHAFT, 1

F3Y-60221-10-00

$23.67

38

. BUSH

F3Y-61344-00-00

$3.70

39

O-RING

F4P-613A5-00-00

$3.64

40

. BUSH

F4P-61344-00-00

$5.45

41

. SENSOR, ANGLE

F4P-85887-00-00

$168.17

42

. BOLT

F3J-613B4-00-00

$4.55

43

. PLATE

F4P-61348-00-00

$25.74

44

. SCREW

F3J-68198-20-00

$3.64

45

. BOLT

F3J-613B4-10-00

$2.19

46

. SPACER

F3J-61492-00-00

$7.27

47

. O-RING

F4P-613A5-10-00

$4.55

48

SHAFT, 2

99999-04616-00

Unavailable

49

. BUSH

F3Y-61344-00-00

$3.70

50

O-RING

F4P-613A5-00-00

$3.64

51

. BUSH

F4P-61344-00-00

$5.45

52

PLATE

F4P-U8285-00-00

$14.38

53

BOLT, WITH WASHER

90119-06894-00

$1.37

54

BOLT, WITH WASHER

90119-08852-00

$3.79

55

NUT, LOCK

F3Y-U142L-00-00

$2.52

56

TRIM ARM ASSY

F4P-6150E-00-00

$66.65

57

SHIFT ARM ASSY

F3Y-6150F-00-00

$49.42

58

ROD ASSY

F3J-6150A-00-00

$56.05

59

ROD ASSY 2

F3J-6150D-00-00

$38.52
