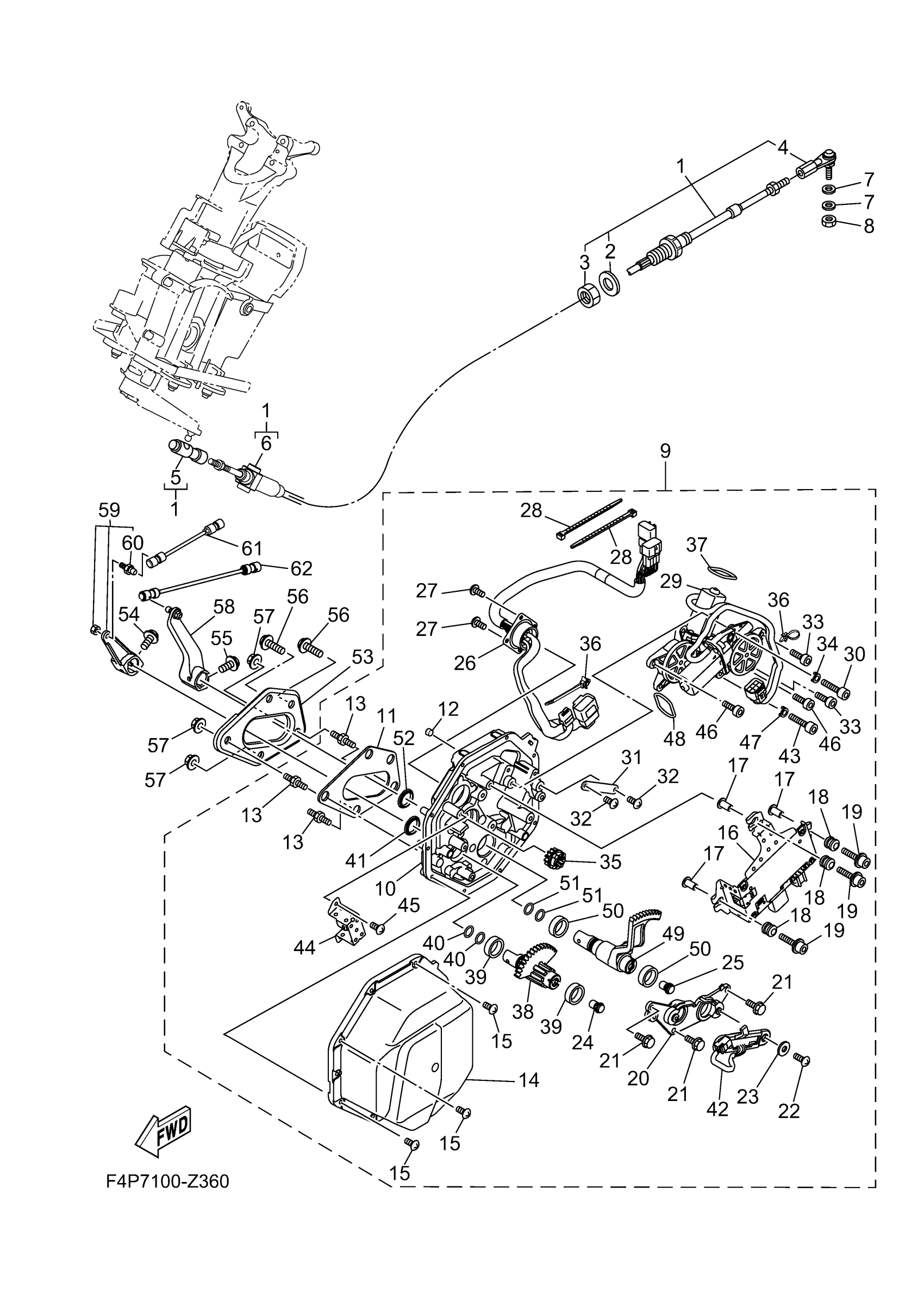

Yamaha GP1800CC (GP SVHO WAUDIO) F4PC 2026 CONTROL CABLE Diagram

#

Description
Price

1

CABLE, STEERING

F1S-61481-12-00

$284.39

2

. PACKING C

F1B-61438-00-00

$2.72

3

NUT

F1B-6151S-01-00

$14.31

4

. STUD, JOINT BALL

F1B-61461-02-00

$95.44

5

. BALL JOINT ASSY

F2N-61460-00-00

$48.47

6

. NUT, LOCK

F1B-61425-00-00

$15.89

7

WASHER, PLATE

90201-06906-00

$2.80

8

NUT

9538R-06700-00

$1.01

9

MOTOR ASSY

F4P-6140B-10-00

$657.56

10

. HOUSING

F4P-6152K-00-00

$215.14

11

. SEAL

F4P-63262-00-00

$27.13

12

. PLUG

F3J-613D0-00-00

$11.99

13

. BOLT, STUD

F3J-67369-00-00

$6.36

14

. COVER

F3Y-6143J-00-00

$52.99

15

. SCREW

F3Y-68198-00-00

$3.64

16

. CONTROL UNIT

F4P-68197-01-00

$868.17

17

. COLLAR

90387-06119-00

$4.37

18

DAMPER, IGNITION C

6A0-82317-01-00

$6.39

19

. BOLT

F3J-613B4-20-00

$4.55

20

. PLATE

F4P-61256-00-00

$62.11

21

. BOLT, HEXAGON

F3Y-613B3-00-00

$4.55

22

. SCREW

F3J-68198-20-00

$3.64

23

. WASHER, PLAIN

F3J-613C3-10-00

$3.70

24

. MAGNET, SENSOR

F3J-60428-00-00

$25.49

25

. MAGNET, SENSOR

F3J-60428-00-00

$25.49

26

. WIRE HARNESS ASSY

F4P-68270-00-00

$233.32

27

. SCREW

F3J-68198-00-00

$2.95

28

. CLAMP, WIRE

F3J-68273-00-00

$3.18

29

. MOTOR

F4P-68352-00-00

$315.14

30

. BOLT

F3J-613B4-00-00

$4.55

31

. PLATE

F3Y-61348-00-00

$4.55

32

. SCREW

F3J-68198-20-00

$3.64

33

. BOLT

F3J-613B4-10-00

$2.19

34

. SPACER

F3J-61492-00-00

$7.27

35

. GEAR 1

F4P-60211-00-00

$116.65

36

. CLAMP

F4P-68273-00-00

$4.09

37

. O-RING

F4P-613A5-10-00

$4.55

38

SHAFT, 1

F3Y-60221-10-00

$23.67

39

. BUSH

F3Y-61344-00-00

$3.70

40

O-RING

F4P-613A5-00-00

$3.64

41

. BUSH

F4P-61344-00-00

$5.45

42

. SENSOR, ANGLE

F4P-85887-00-00

$168.17

43

. BOLT

F3J-613B4-00-00

$4.55

44

. PLATE

F4P-61348-00-00

$25.74

45

. SCREW

F3J-68198-20-00

$3.64

46

. BOLT

F3J-613B4-10-00

$2.19

47

. SPACER

F3J-61492-00-00

$7.27

48

. O-RING

F4P-613A5-10-00

$4.55

49

. SHAFT, 2

F4P-60222-10-00

$134.83

50

. BUSH

F3Y-61344-00-00

$3.70

51

O-RING

F4P-613A5-00-00

$3.64

52

. BUSH

F4P-61344-00-00

$5.45

53

PLATE

F4P-U8285-00-00

$14.38

54

BOLT, WITH WASHER

90119-06894-00

$1.37

55

BOLT, WITH WASHER

90119-068E7-00

Unavailable

56

BOLT, WITH WASHER

90119-08852-00

$3.79

57

NUT, LOCK

F3Y-U142L-00-00

$2.52

58

TRIM ARM ASSY

F4P-6150E-10-00

$79.92

59

SHIFT ARM ASSY

F3Y-6150F-00-00

$49.42

60

. BOLT, JOINT

6R7-42316-00-00

$34.49

61

ROD ASSY

F3J-6150A-00-00

$56.05

62

ROD ASSY 2

F3J-6150D-00-00

$38.52
