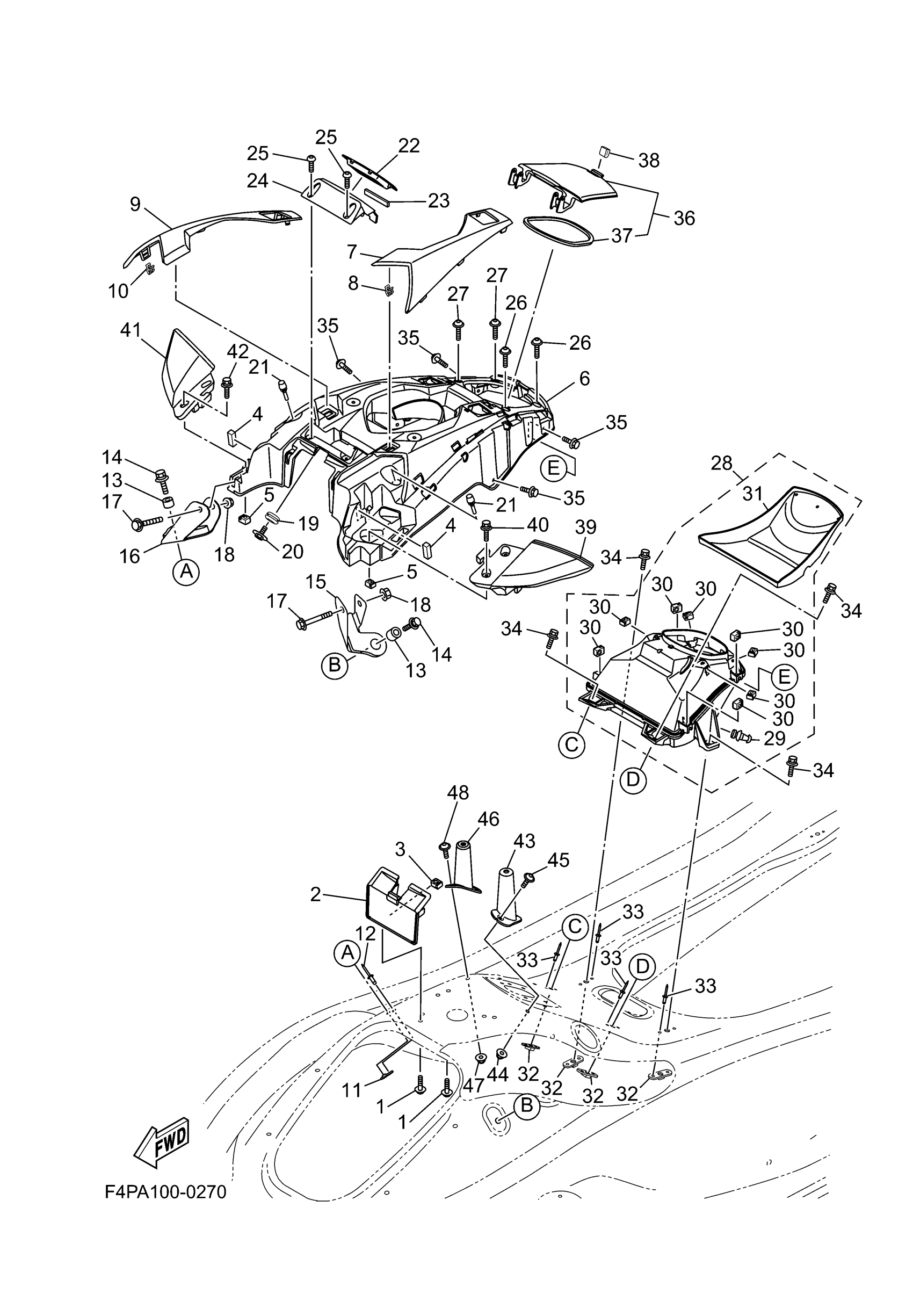

Yamaha GP1800CB (SVHO WITH AUDIO) F4PA 2025 ENGINE HATCH 2 Diagram

#

Description
Price

1

BOLT, WITH WASHER

90119-06880-00

$3.52

2

HOOK,LID LOCK

F4P-U517F-00-00

$21.20

3

NUT

F3X-U517E-00-00

$1.23

4

PACKING

F4P-U1743-00-00

$1.37

5

NUT

F3X-U517E-00-00

$1.23

6

COVER, CENTER

F4P-U5554-00-00

$131.80

7

ORNAMENT LH

F4P-U517W-01-P3

$63.18

7

ORNAMENT LH

F4P-U517W-01-P9

$87.86

8

CLIP

F3Y-U153K-00-00

$1.29

9

ORNAMENT RH

F4P-U517X-01-P3

$69.68

9

ORNAMENT RH

F4P-U517X-01-P9

$69.68

10

CLIP

F3Y-U153K-00-00

$1.29

11

PLATE, FIX

F2X-U5175-00-00

$1.80

12

RIVET (EU0)

90267-48938-00

$5.00

13

SPACER

F4P-U5239-01-00

$2.35

14

BOLT, WITH WASHER

90119-06820-00

$3.52

15

BRACKET ASSY.,1

F4P-UF88B-00-00

$25.74

16

BRACKET ASSY.,2

F4P-UF88C-00-00

$25.74

17

BOLT, FIX

F4P-U5176-00-00

$0.91

18

NUT, LOCK

F2N-U142L-00-00

$1.00

19

. GROMMET

90480-19800-00

$11.48

20

BOLT, WITH WASHER

90119-05803-00

$4.01

21

. CUSHION, RUBBER

F1W-U3768-01-00

$1.43

22

ORNAMENT, METER

F4P-U826F-01-00

Unavailable

23

DAMPER 2

F0X-U515E-02-00

Unavailable

24

COVER METER

F4P-U8262-00-00

$9.83

25

SCREW

F2S-U13C1-00-00

$2.36

26

SCREW

F3X-U7823-12-00

$1.25

27

SCREW

F3X-U7823-12-00

$1.25

28

GLOVE BOX HATCH ASSY

F4P-U1708-00-00

$95.44

29

. SEAL

F3X-U2723-00-00

$2.16

30

NUT

F3X-U517E-00-00

$1.23

31

. INNER, CASE

F4P-U591L-00-00

$46.95

32

BRACKET

F2C-U826C-00-00

$3.79

33

RIVET 1

F4P-U516R-01-00

$4.87

34

BOLT, WITH WASHER

90119-08828-00

$2.30

35

BOLT

F4P-U1355-00-00

$0.86

36

GLOVE BOX COVER ASSY

F4P-U4705-00-00

$43.06

37

. PACKING CASE

F4P-U519D-00-00

$33.34

38

PACKING 4

F4P-U266C-00-00

Unavailable

39

MIRROR ASSY. 1

F4P-U590D-70-00

Unavailable

39

MIRROR ASSY. 1

F4P-U590D-90-00

$131.80

40

BOLT, WITH WASHER

90119-06304-00

$3.52

41

MIRROR ASSY. 2

F4P-U590E-70-00

Unavailable

41

MIRROR ASSY. 2

F4P-U590E-90-00

$131.80

42

BOLT, WITH WASHER

90119-06304-00

$3.52

43

RFM.,DASH BOARD 1

F4P-U974A-00-00

$12.11

44

NUT, LOCK

F2N-U142L-00-00

$1.00

45

SCREW

F3X-U7823-12-00

$1.25

46

RFM.,DASH BOARD 2

F4P-U974B-00-00

$12.11

47

NUT, LOCK

F2N-U142L-00-00

$1.00

48

SCREW

F3X-U7823-12-00

$1.25
