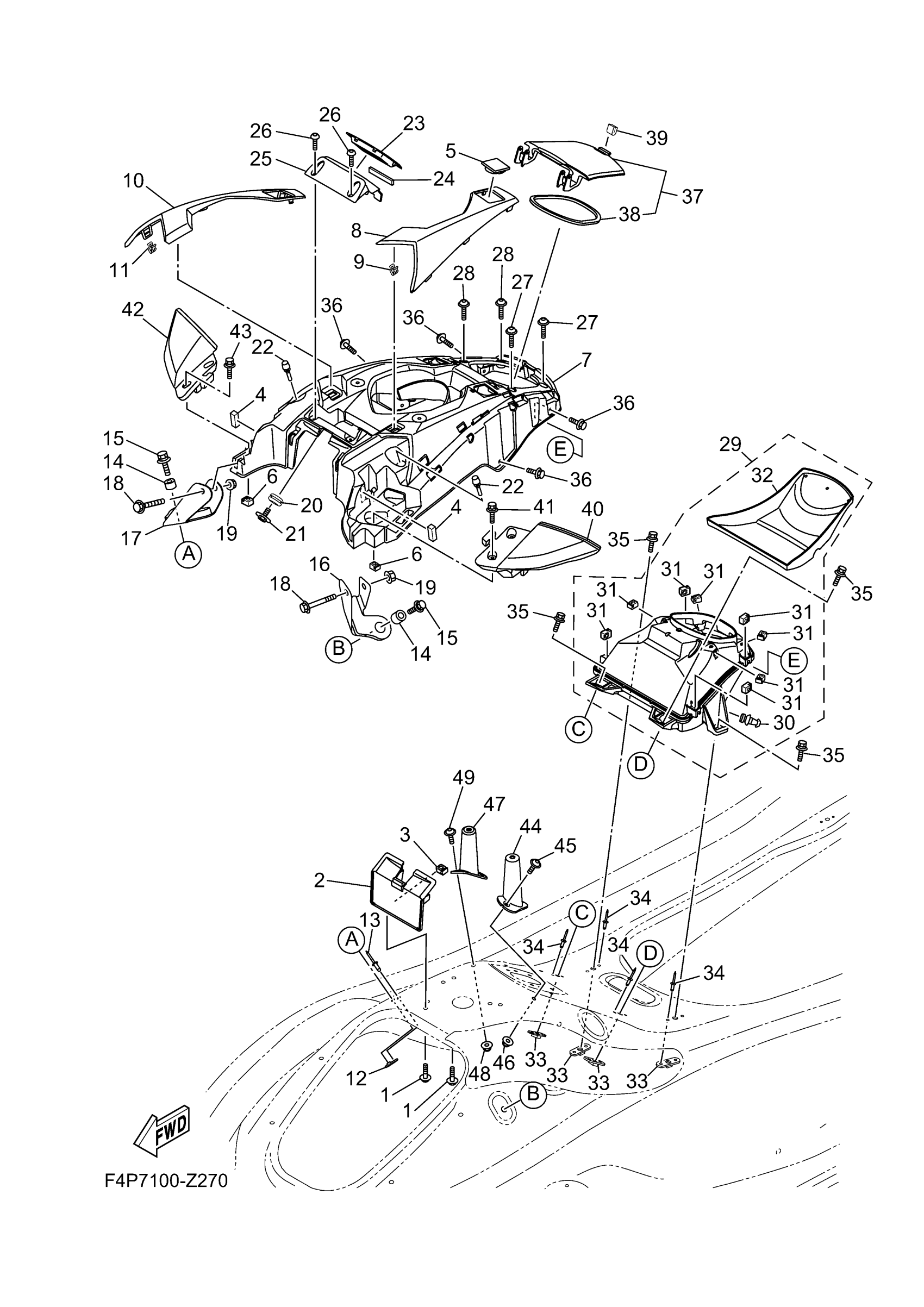

Yamaha GP1800CA (GP1800 SVHO_SVHO WITH AUDIO) F4P8 2024 ENGINE HATCH 2 Diagram

#

Description
Price

1

BOLT, WITH WASHER

90119-06880-00

Unavailable

2

HOOK,LID LOCK

F4P-U517F-00-00

Unavailable

3

NUT

F3X-U517E-00-00

Unavailable

4

PACKING

F4P-U1743-00-00

Unavailable

5

CAP

F4P-U5568-00-00

Unavailable

6

NUT

F3X-U517E-00-00

Unavailable

7

COVER, CENTER

F4P-U5554-00-00

Unavailable

8

ORNAMENT LH

F4P-U517W-01-98

$85.99

8

ORNAMENT LH

F4P-U517W-01-P8

$109.99

9

CLIP

F3Y-U153K-00-00

Unavailable

10

ORNAMENT RH

F4P-U517X-01-98

$85.99

10

ORNAMENT RH

F4P-U517X-01-P8

$109.99

11

CLIP

F3Y-U153K-00-00

Unavailable

12

PLATE, FIX

F2X-U5175-00-00

Unavailable

13

RIVET (EU0)

90267-48938-00

Unavailable

14

SPACER

F4P-U5239-01-00

Unavailable

15

BOLT, WITH WASHER

90119-06820-00

Unavailable

16

BRACKET ASSY.,1

F4P-UF88B-00-00

Unavailable

17

BRACKET ASSY.,2

F4P-UF88C-00-00

Unavailable

18

BOLT, FIX

F4P-U5176-00-00

Unavailable

19

NUT, LOCK

F2N-U142L-00-00

Unavailable

20

. GROMMET

90480-19800-00

Unavailable

21

BOLT, WITH WASHER

90119-05803-00

Unavailable

22

. CUSHION, RUBBER

F1W-U3768-01-00

Unavailable

23

ORNAMENT, METER

F4P-U826F-01-00

Unavailable

24

DAMPER 2

F0X-U515E-02-00

Unavailable

25

COVER METER

F4P-U8262-00-00

Unavailable

26

SCREW

F2S-U13C1-00-00

Unavailable

27

SCREW

F3X-U7823-12-00

Unavailable

28

SCREW

F3X-U7823-12-00

Unavailable

29

GLOVE BOX HATCH ASSY

F4P-U1708-00-00

Unavailable

30

. SEAL

F3X-U2723-00-00

Unavailable

31

NUT

F3X-U517E-00-00

Unavailable

32

. INNER, CASE

F4P-U591L-00-00

Unavailable

33

BRACKET

F2C-U826C-00-00

Unavailable

34

RIVET 1

F4P-U516R-01-00

Unavailable

35

BOLT, WITH WASHER

90119-08828-00

Unavailable

36

BOLT

F4P-U1355-00-00

Unavailable

37

GLOVE BOX COVER ASSY

F4P-U4705-00-00

Unavailable

38

. PACKING CASE

F4P-U519D-00-00

Unavailable

39

PACKING 4

F4P-U266C-00-00

Unavailable

40

MIRROR ASSY. 1

F4P-U590D-30-00

Unavailable

40

MIRROR ASSY. 1

F4P-U590D-80-00

Unavailable

41

BOLT, WITH WASHER

90119-06304-00

Unavailable

42

MIRROR ASSY. 2

F4P-U590E-30-00

Unavailable

42

MIRROR ASSY. 2

F4P-U590E-80-00

Unavailable

43

BOLT, WITH WASHER

90119-06304-00

Unavailable

44

RFM.,DASH BOARD 1

F4P-U974A-00-00

Unavailable

45

NUT, LOCK

F2N-U142L-00-00

Unavailable

46

SCREW

F3X-U7823-12-00

Unavailable

47

RFM.,DASH BOARD 2

F4P-U974B-00-00

Unavailable

48

NUT, LOCK

F2N-U142L-00-00

Unavailable

49

SCREW

F3X-U7823-12-00

Unavailable
