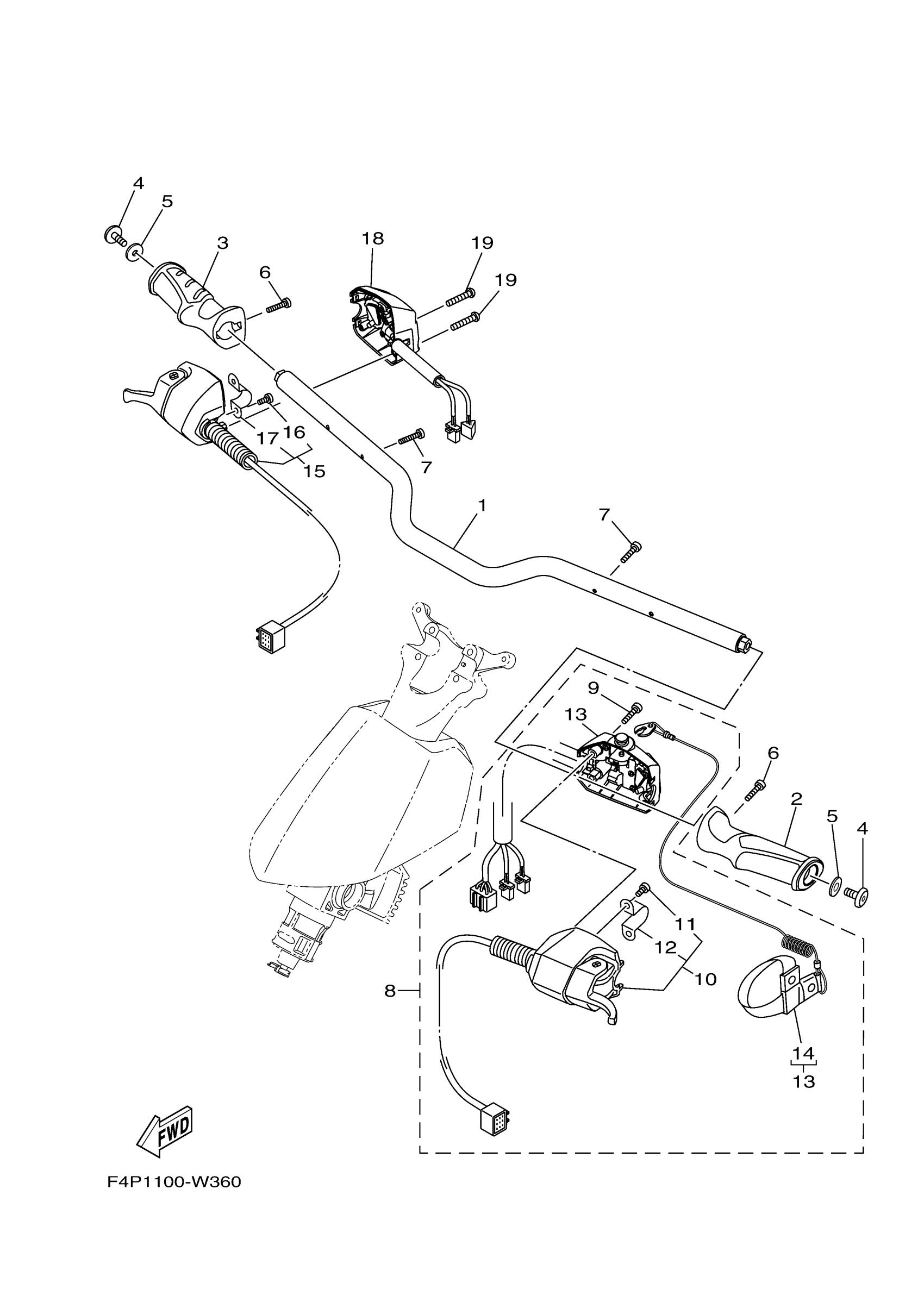

Yamaha GP1800BW (GP1800R HO) F4M1 2021 STEERING 1 Diagram

#

Description
Price

1

HANDLE

F4P-U1552-00-00

$125.74

2

GRIP,HANDLE

F4P-U155C-20-00

$22.25

3

GRIP, HANDLE

F4P-U155D-20-00

$22.25

4

BOLT, HEXAGON SOCKET HEAD

90110-06383-00

$3.70

5

WASHER, PLATE

90201-068G0-00

$0.93

6

BOLT

F2S-U1516-00-00

$2.80

7

BOLT

91380-04030-00

$0.91

8

SWITCH BOX ASSY

F4P-68310-03-00

Unavailable

9

BOLT, THROTTLE

6CS-6725F-00-00

$4.44

10

SHIFT LEVER ASSY

F4P-26411-02-00

$516.65

11

. BOLT, THROTTLE

F4P-6725F-00-00

$6.82

12

. SUPPORT

F4P-61368-00-00

$5.18

13

SWITCH ASSY

F4P-8259E-01-00

$786.35

14

. LANYARD, STOP SWITCH

EW2-68348-00-00

$25.35

15

THROTTLE LEVER COMP

F4P-14305-02-00

$354.53

16

. BOLT, THROTTLE

F4P-6725F-00-00

$6.82

17

. SUPPORT

F4P-61368-00-00

$5.18

18

SWITCH ASSY

F4P-81860-01-00

$153.02

19

BOLT, THROTTLE

6CS-6725F-00-00

$4.44
