- GP1800BW (GP1800R HO) F4M1 2021
GUNWALE & MAT

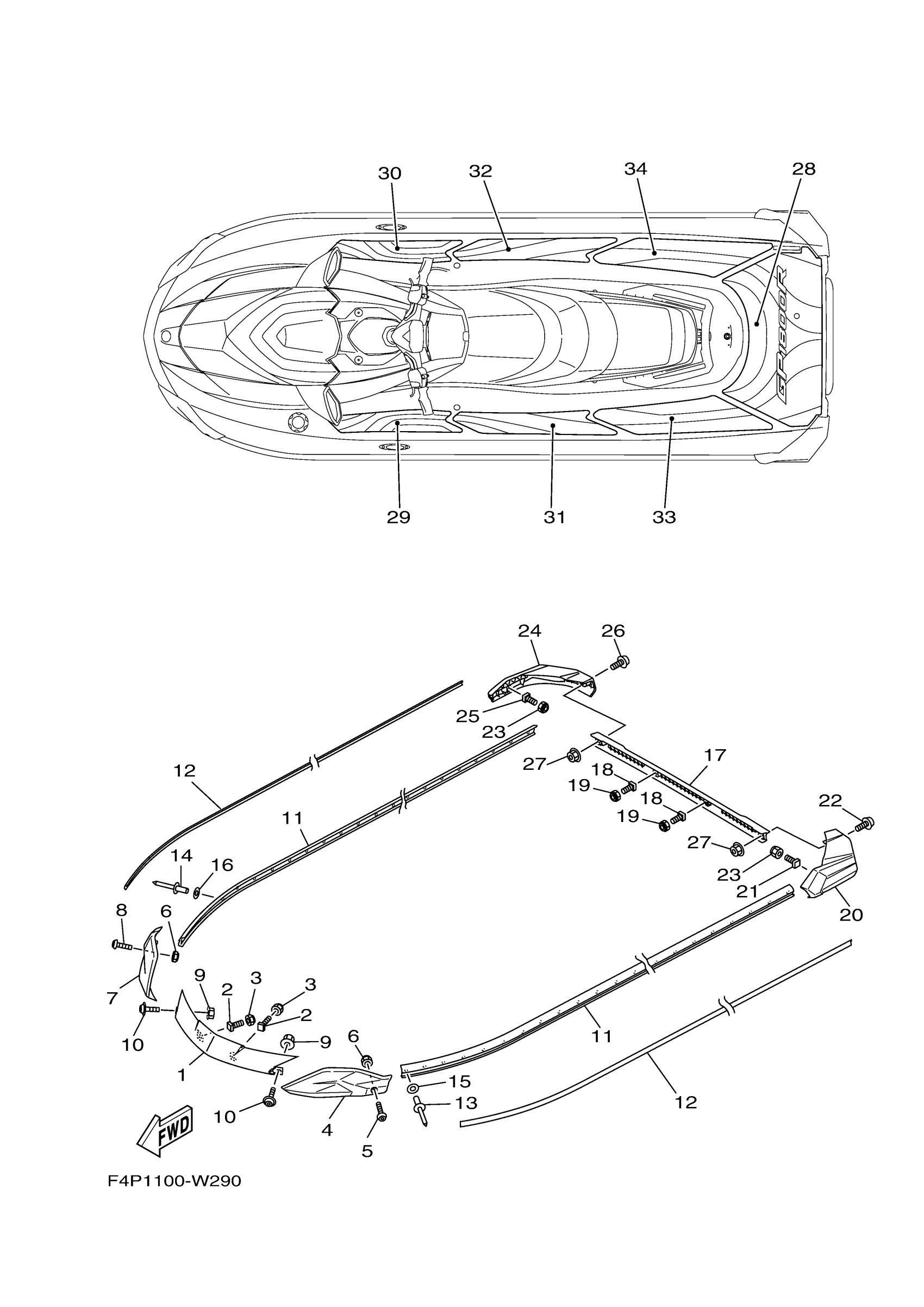

Yamaha GP1800BW (GP1800R HO) F4M1 2021 GUNWALE & MAT Diagram
#
1
GUNWALE, BOW
F4P-U2511-00-00
Unavailable
1
GUNWALE, BOW
F4P-U2511-10-00
Unavailable
2
BOLT, SPECIAL
F7K-U491K-00-00
Unavailable
3
NUT, LOCK
F2N-U142L-00-00
Unavailable
4
JOINT, GUNWALE LH
F4P-U252E-00-00
Unavailable
4
JOINT, GUNWALE LH
F4P-U252E-10-00
Unavailable
5
SCREW
F4P-U7823-00-00
Unavailable
6
NUT, LOCK
F2N-U142L-00-00
Unavailable
7
JOINT, GUNWALE RH
F4P-U252F-00-00
Unavailable
7
JOINT, GUNWALE RH
F4P-U252F-10-00
Unavailable
8
SCREW
F4P-U7823-00-00
Unavailable
9
NUT, LOCK
F2N-U142L-00-00
Unavailable
10
SCREW
F3X-U7823-12-00
Unavailable
11
GUNWALE, SIDE
F4P-U2512-00-00
Unavailable
11
GUNWALE, SIDE
F4P-U2512-10-00
Unavailable
12
INNER,GUNWALE
F4P-U2519-20-00
Unavailable
13
RIVET, BLIND
90267-489U8-00
Unavailable
14
RIVET, BLIND
90267-489U8-00
Unavailable
15
WASHER
9299R-05200-00
Unavailable
16
WASHER
9299R-05200-00
Unavailable
17
COVER, GUNWALE 1
F4P-U252C-02-00
Unavailable
17
COVER, GUNWALE 1
F4P-U252C-11-00
Unavailable
18
BOLT, SPECIAL
F7K-U491K-00-00
Unavailable
19
NUT, LOCK
F2N-U142L-00-00
Unavailable
20
GUNWALE, STERN 1
F4P-U251D-00-00
Unavailable
20
GUNWALE, STERN 1
F4P-U251D-10-00
Unavailable
21
BOLT, SPECIAL
F7K-U491K-00-00
Unavailable
22
SCREW
F4P-U7823-00-00
Unavailable
23
NUT, LOCK
F2N-U142L-00-00
Unavailable
24
GUNWALE, STERN 2
F4P-U251E-00-00
Unavailable
24
GUNWALE, STERN 2
F4P-U251E-10-00
Unavailable
25
BOLT, SPECIAL
F7K-U491K-00-00
Unavailable
26
SCREW
F4P-U7823-00-00
Unavailable
27
NUT, LOCK
F2N-U142L-00-00
Unavailable
28
MAT, UPPER
F4P-U3581-02-00
Unavailable
29
MAT, STEP 1
F4P-U351H-01-00
Unavailable
30
MAT, STEP 2
F4P-U351J-01-00
Unavailable
31
MAT, STEP 3
F4P-U351K-01-00
Unavailable
32
MAT, STEP 4
F4P-U351M-01-00
Unavailable
33
MAT, STEP 5
F4P-U351N-01-00
Unavailable
34
MAT, STEP 6
F4P-U351P-01-00
Unavailable
