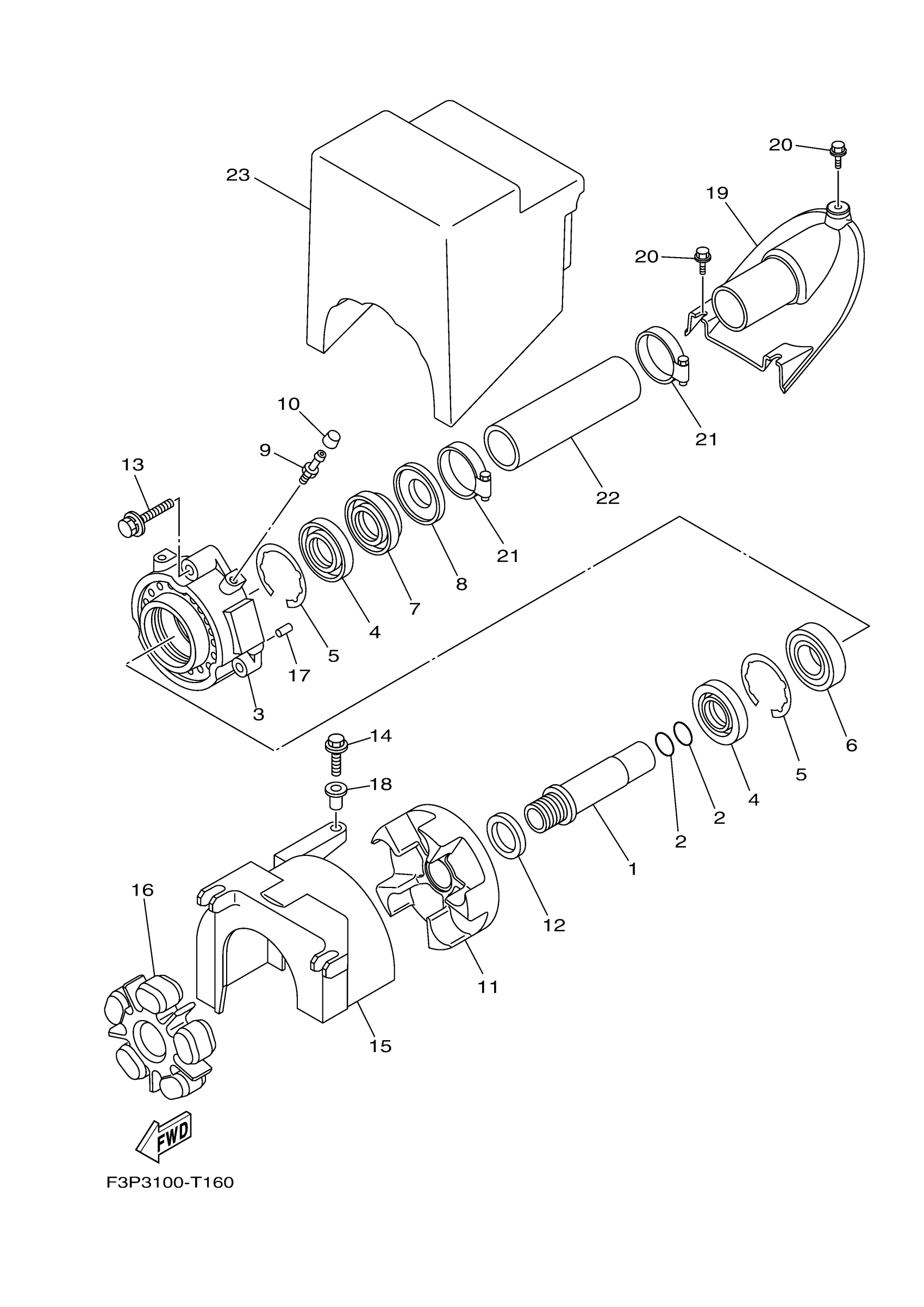

Yamaha GP1800AW (GP1800R SVHO) F4P1 2021 JET UNIT 2 Diagram

#

Description
Price

1

SHAFT, COUPLER

6S5-R1323-00-00

$130.35

2

O-RING(6U1)

93210-22MF1-00

$4.65

3

HOUSING, BEARING

6S5-G5332-00-00

$200.40

4

. OIL SEAL

93102-29008-00

$22.22

5

CIRCLIP(MF1)

99009-62500-00

$5.80

6

BEARING

93306-206Y8-00

$43.06

7

OIL SEAL

93102-29009-00

$54.53

8

WASHER, THRUST

6ET-45613-00-00

$23.30

9

NIPPLE, GREASE

93700-06M03-00

$7.40

10

CAP, GREASE NIPPLE

663-45119-01-00

$1.83

11

FLANGE, COUPLING 1

6S5-G5593-00-00

$43.06

12

WASHER

6ET-E2289-00-00

$4.31

13

BOLT, WITH WASHER

90119-089U1-00

$3.23

14

BOLT, WITH WASHER

90119-06892-00

$3.79

15

COVER

6S5-R1381-01-00

$4.15

16

RUBBER SHAFT COUPL

6BH-4581J-01-00

$136.35

17

PIN, DOWEL (614)

93606-12019-00

Unavailable

18

COLLAR

90387-06289-00

Unavailable

19

JOINT, PIPE

F2N-U883E-00-00

$8.61

20

BOLT

90109-06832-00

$2.44

21

BAND, HOSE 55

90601-155U4-00

$5.87

22

PIPE 1

F2M-U883B-00-00

$19.38

23

PAD

F1K-U892D-00-00

$23.47
