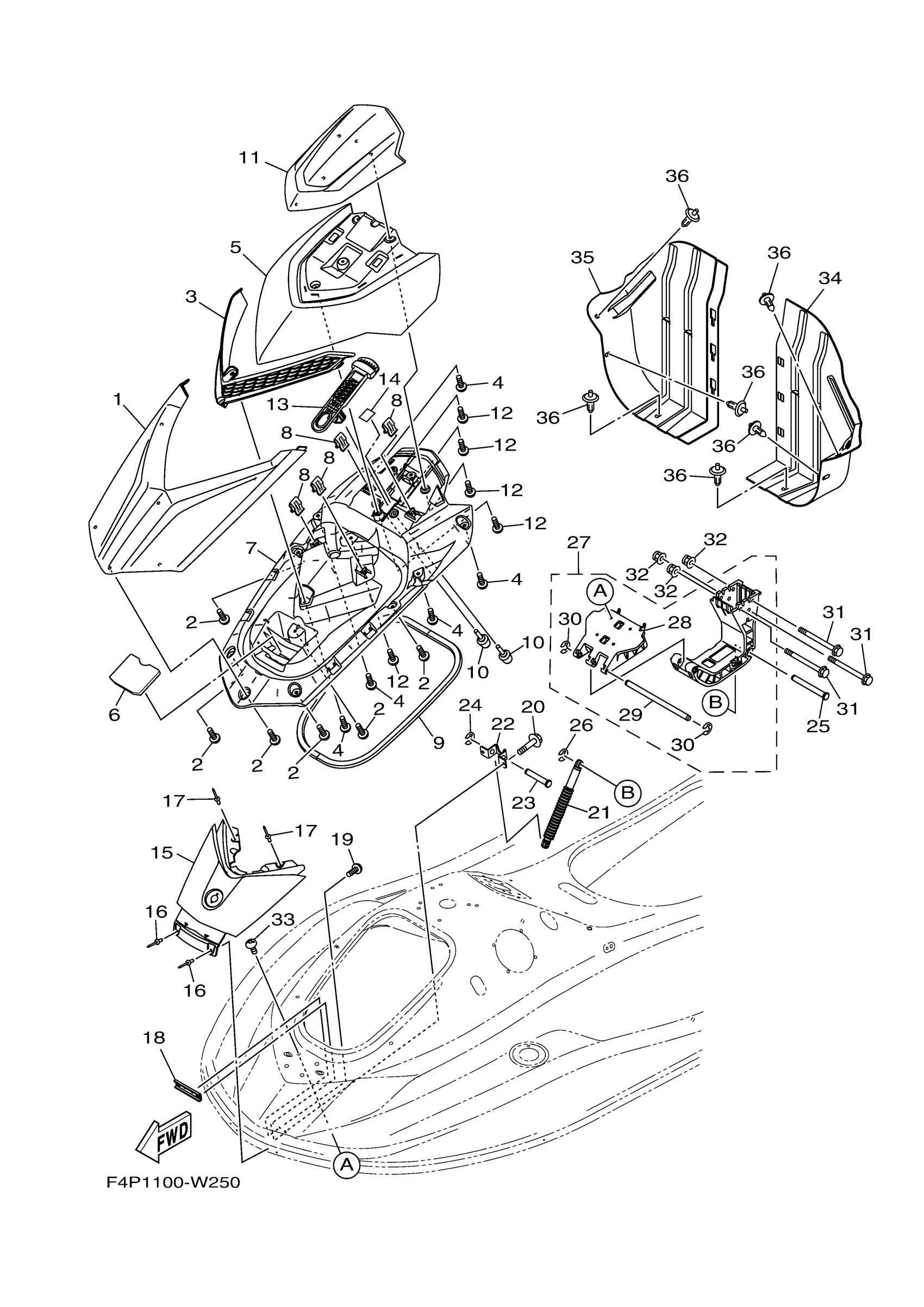

Yamaha GP1800AW (GP1800R SVHO) F4P1 2021 ENGINE HATCH 1 Diagram

#

Description
Price

1

LID, ENGINE ROOM (

F4P-U517B-01-98

$154.53

1

LID, ENGINE ROOM (SSA)

F4P-U517B-00-P1

$165.14

2

SCREW

F2S-U13C1-00-00

$2.36

3

ORNAMENT, CENTER

F4P-U517V-00-00

$18.66

4

SCREW

F2S-U13C1-00-00

$2.36

5

VISOR (LGB)

F4P-U515N-00-98

$59.08

5

VISOR (SSA)

F4P-U515N-00-P1

$59.08

6

STOPPER, PACKING

F4P-U7462-00-00

$2.95

7

INNER, ENGINE HATCH

F4P-U519G-00-00

$121.20

8

CLIP

F3Y-U153K-00-00

$1.29

9

PACKING 1

F4P-U2663-01-00

$31.80

10

. CUSHION, RUBBER

F1W-U3768-01-00

$1.43

11

VISOR, 2

F4P-U515P-01-P0

Unavailable

11

VISOR, 2

F4P-U515P-01-P1

Unavailable

12

SCREW

F2S-U13C1-00-00

$2.36

13

LOCK, LID

F4P-U517C-00-00

$7.58

14

PACKING

F2C-U1743-00-00

$1.87

15

COVER, FRONT (LGB)

F4P-U513M-01-98

Unavailable

15

COVER, FRONT (SSA)

F4P-U513M-00-P1

$27.26

16

RIVET, BLIND

90267-489U8-00

$0.99

17

RIVET, BLIND

90267-48806-00

$2.00

18

PLATE, BASE 2

F2S-U8592-00-00

$5.83

19

RIVET (EU0)

90267-48938-00

$5.00

20

BOLT, WITH WASHER

90119-06820-00

$3.52

21

DAMPER 1

F4P-U515D-01-00

Unavailable

22

BRACKET, DAMPER 1

F4P-UFRV1-00-00

$29.53

23

CLEVIS

F4P-U7243-00-00

$87.86

24

. E-RING

F4P-U515C-00-00

$0.91

25

CLEVIS 1

F4P-UF8DM-00-00

$18.17

26

. E-RING

F4P-U515C-00-00

$0.91

27

HINGE ASSY.

F4P-U515A-00-00

$92.41

28

. PLATE, HINGE LID

F4P-U518E-00-00

$33.32

29

. ROD

F4P-U7256-00-00

$4.09

30

. E-RING

F4P-U515C-00-00

$0.91

31

BOLT, STUD 1

F4P-U4445-00-00

$4.24

32

NUT, LOCK

F3Y-U142L-00-00

$2.52

33

BOLT, HEXAGON SOCKET BUTTON

90111-06873-00

$5.03

34

LOCKER,BOW

F4P-U475B-00-00

$27.26

35

PLATE, LOKER BOW

F4P-U475F-00-00

$28.02

36

RIVET

F4P-U1454-00-00

$1.06
