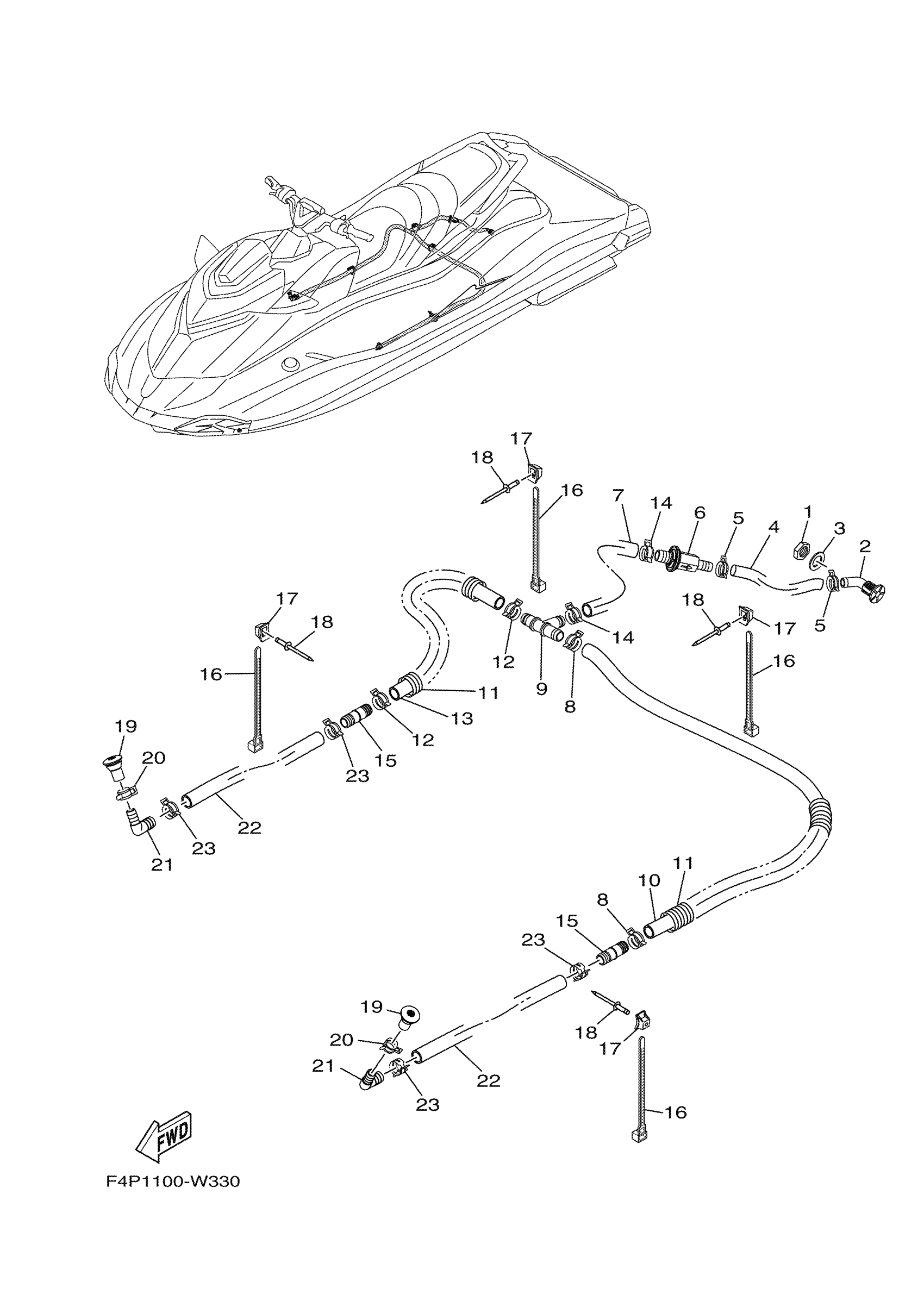

Yamaha GP1800AW (GP1800R SVHO) F4P1 2021 BILGE PUMP Diagram

#

Description
Price

1

NUT, DRAIN 1

F3X-U224B-00-00

$0.93

2

BODY, DRAIN 1

F3X-U224C-00-00

$1.58

3

GASKET

F3X-U7564-00-00

$1.23

4

HOSE, DRAIN 3

F4P-U7628-00-00

$92.52

5

CLIP

90467-17802-00

$3.02

6

CHECK VALVE

F3X-U7767-00-00

$14.35

7

HOSE 1

F4P-U7626-00-00

$49.24

8

BAND

90601-200U1-00

$2.77

9

JOINT,HOSE

F3X-U7857-00-00

$2.30

10

HOSE, DRAIN 2

F4P-U7629-01-00

$19.39

11

TUBE

6EX-U773D-00-00

$4.10

12

BAND

90601-200U1-00

$2.77

13

HOSE, DRAIN

F4P-U2249-01-00

$7.85

14

BAND

90601-200U1-00

$2.77

15

JOINT, DRAIN

F3X-U7617-00-00

$1.58

16

CLAMP

90464-32801-00

$1.29

17

BASE, CLAMP

F1W-U828M-00-00

$1.29

18

RIVET, BLIND

90267-48802-00

$1.98

19

PLUG,DRAIN

F4P-U2255-00-00

$1.43

20

BAND

90601-200U1-00

$2.77

21

CONNECTOR

F3X-U8377-00-00

$1.51

22

HOSE 1

F4P-U7626-00-00

$49.24

23

BAND

90601-200U1-00

$2.77
