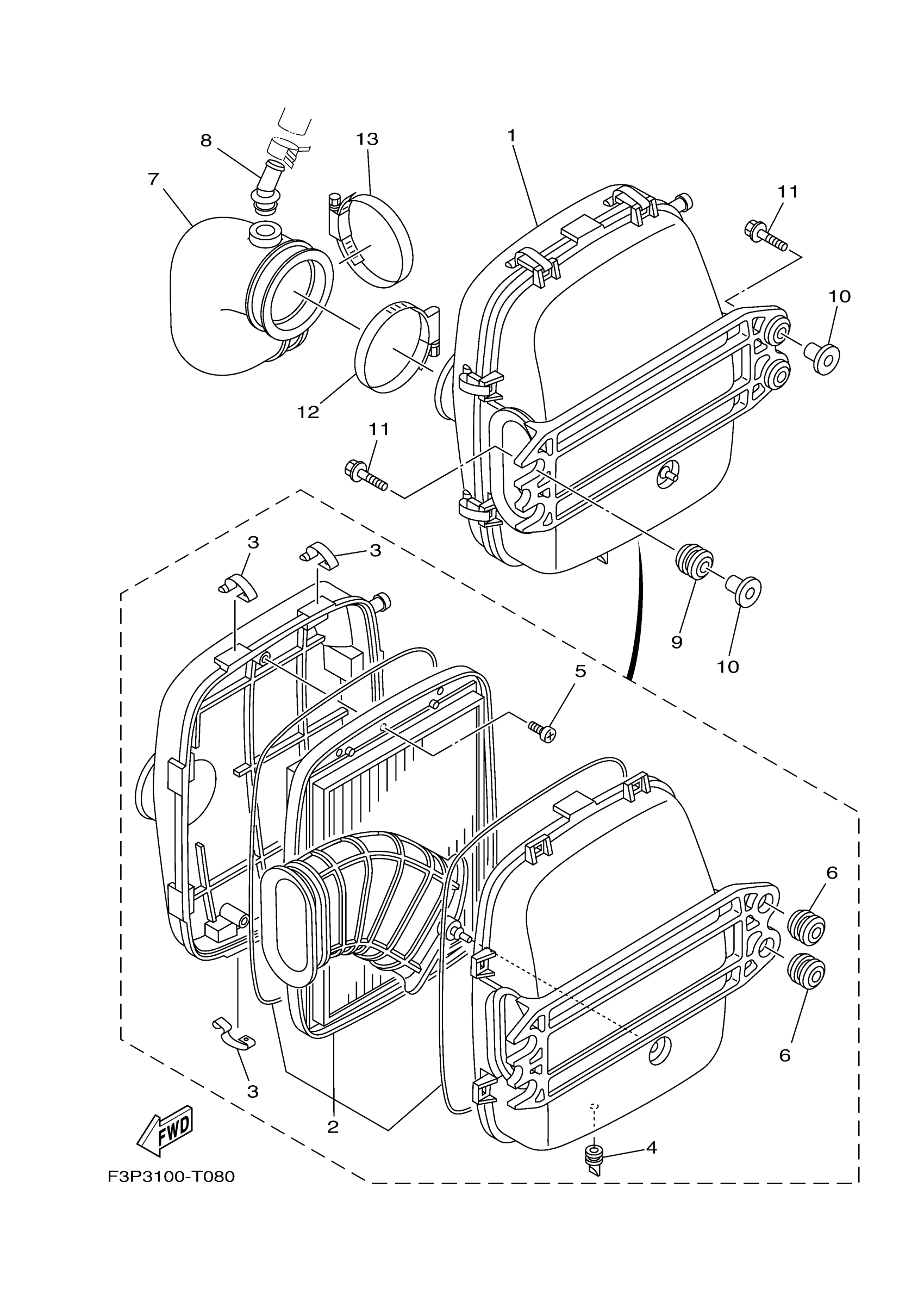

Yamaha GP1800AC (GP SVHO) F4PB 2026 INTAKE 3 Diagram

#

Description
Price

1

AIR CLEANER ASSY.

6S5-E4410-02-00

$171.63

2

ELEMENT, AIR CLEAN

6S5-E4451-01-00

$173.77

3

. HOOK

6S5-E4436-00-00

$4.01

4

. RUBBER, SEAL 2

6S5-G2717-00-00

$2.54

5

SCREW, PANHEAD TAPPING (J20)

97780-60116-00

$2.05

6

. GROMMET

90480-22801-00

$2.69

7

PIPE

6S5-E4419-00-00

$76.10

8

CONNECTION

6S5-R1142-10-00

$47.75

9

GROMMET

90480-22M15-00

$11.01

10

COLLAR

90387-08M37-00

$10.28

11

BOLT, WITH WASHER

90119-08187-00

$3.02

12

HOSE CLAMP ASSY

90450-90002-00

$16.99

13

HOSE CLAMP ASSY

90450-90002-00

$16.99
