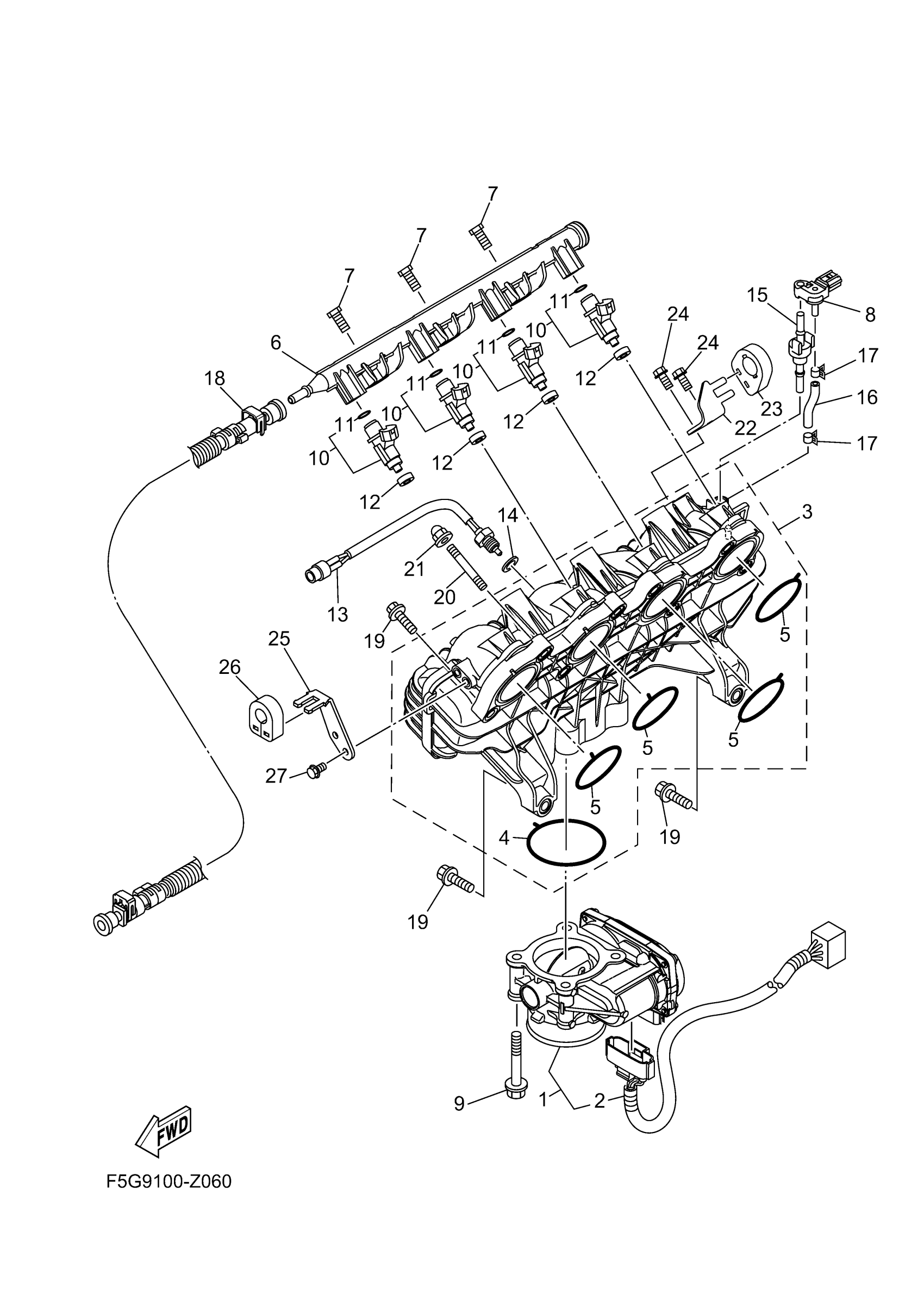

Yamaha GP1800AC (GP SVHO) F4PB 2026 INTAKE 1 Diagram
#
Description
Price
1
THROTTLE BODY ASSY
6ET-13750-01-00
Unavailable
2
. WIRE, SUB LEAD
6S5-82509-00-00
Unavailable
3
MANIFOLD, INTAKE 1
6ET-13641-11-00
Unavailable
4
. GASKET, INSULATING
6EY-14156-00-00
Unavailable
5
. GASKET, INSULATING
6ET-14156-00-00
Unavailable
6
DELIVERY PIPE
6CS-12880-00-00
Unavailable
7
BOLT
6CS-14446-00-00
Unavailable
8
. SENSOR, PRESSURE
6BH-82380-00-00
Unavailable
9
BOLT, FLANGE
90105-08243-00
Unavailable
10
INJECTOR
6ET-13761-00-00
Unavailable
11
. O-RING
68V-1416A-00-00
Unavailable
12
. GASKET, MANIFOLD
8FP-13556-10-00
Unavailable
13
SENSOR, AIR TEMPERATURE
6S5-85886-00-00
Unavailable
14
. WASHER
6S5-14285-00-00
Unavailable
15
GROMMET
6BH-14445-00-00
Unavailable
16
HOSE, VACUUM SENSING 3
69J-13532-00-00
Unavailable
17
CLIP
6S5-14159-01-00
Unavailable
18
FUEL HOSE ASSY
6AN-2450B-10-00
Unavailable
19
BOLT, WITH WASHER
97513-08535-00
Unavailable
20
BOLT, STUD
90116-08032-00
Unavailable
21
NUT, CROWN(4BR)
90176-08080-00
Unavailable
22
PLATE, STAY
6ET-14572-00-00
Unavailable
23
GROMMET
6ET-14445-01-00
Unavailable
24
BOLT, FLANGE D/R (
95E33-06012-00
Unavailable
25
PLATE, STAY
6CS-14572-00-00
Unavailable
26
GROMMET
6CS-14445-01-00
Unavailable
27
BOLT, FLANGE D/R (
95E33-06012-00
Unavailable
