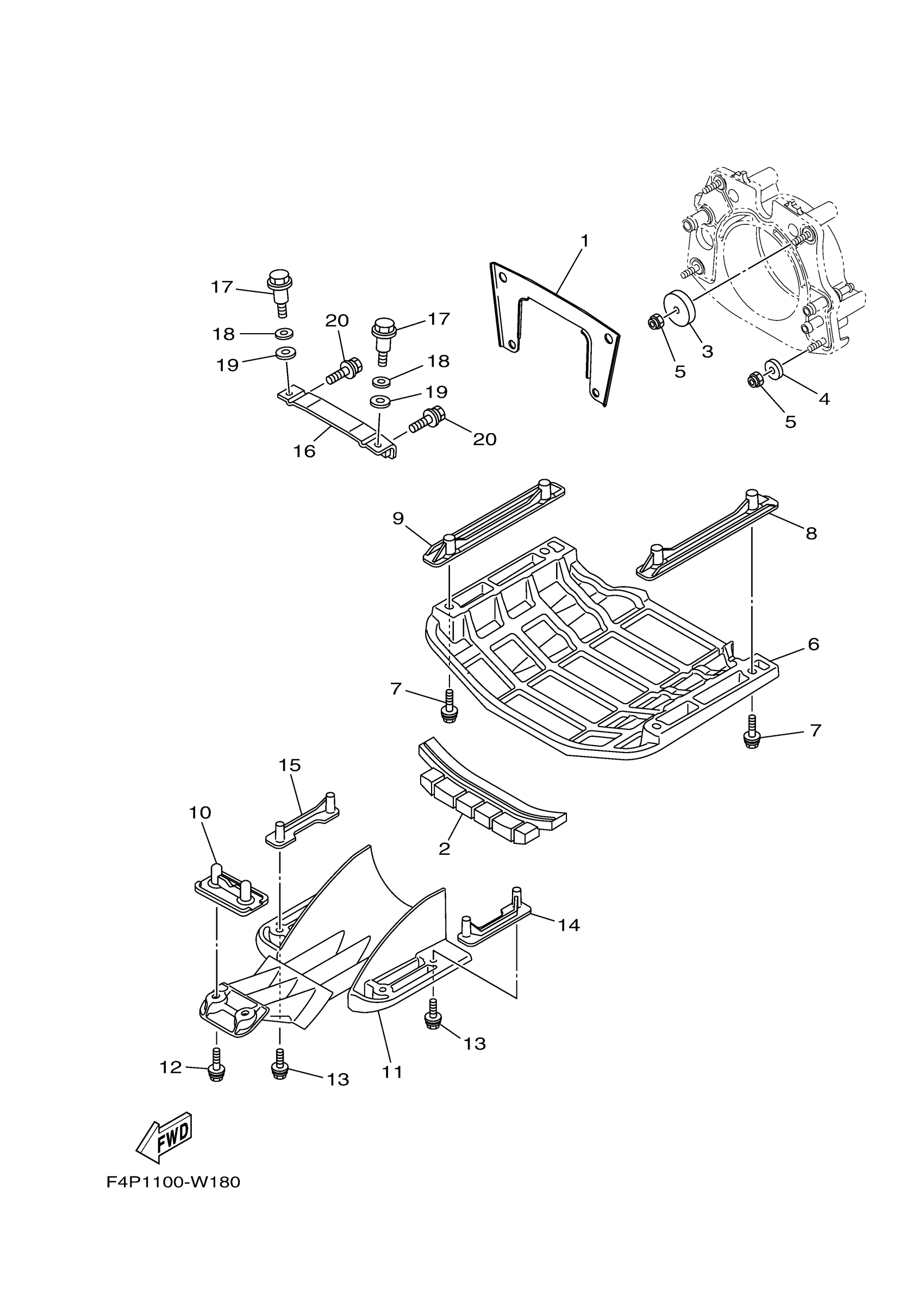

Yamaha GP1800AB (GP1800 SVHO) F4P9 2025 JET UNIT 4 Diagram

#

Description
Price

1

BRACKET

6EY-R1959-00-00

$14.35

2

SPACER

F2X-U72C0-00-00

$15.07

3

WASHER

F1S-U725E-01-00

$7.89

4

WASHER, PLATE

90201-10801-00

$3.52

5

NUT, NYLON

9572R-10300-00

$3.37

6

PLATE 2

F4P-U273B-00-00

$124.48

7

BOLT

F4L-U3222-01-00

Unavailable

8

BRACKET 2

F2X-U8572-00-00

$12.91

9

BRACKET 2

F2X-U8572-00-00

$12.91

10

BRACKET, 3

F2S-U8577-00-00

$15.07

11

SCREEN, INTAKE

F4P-U72B7-00-00

$90.39

12

BOLT, WITH WASHER

90119-08829-00

$3.88

13

BOLT, WITH WASHER

90119-08844-00

$1.29

14

BRACKET 1

F3P-U8571-00-00

$7.18

15

BRACKET 1

F3P-U8571-00-00

$7.18

16

BRACKET

F2C-U7557-01-00

$30.29

17

BOLT

90109-08043-00

$4.09

18

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

19

GASKET

90430-12002-00

$1.81

20

BOLT, WITH WASHER

90119-08800-00

$4.09
