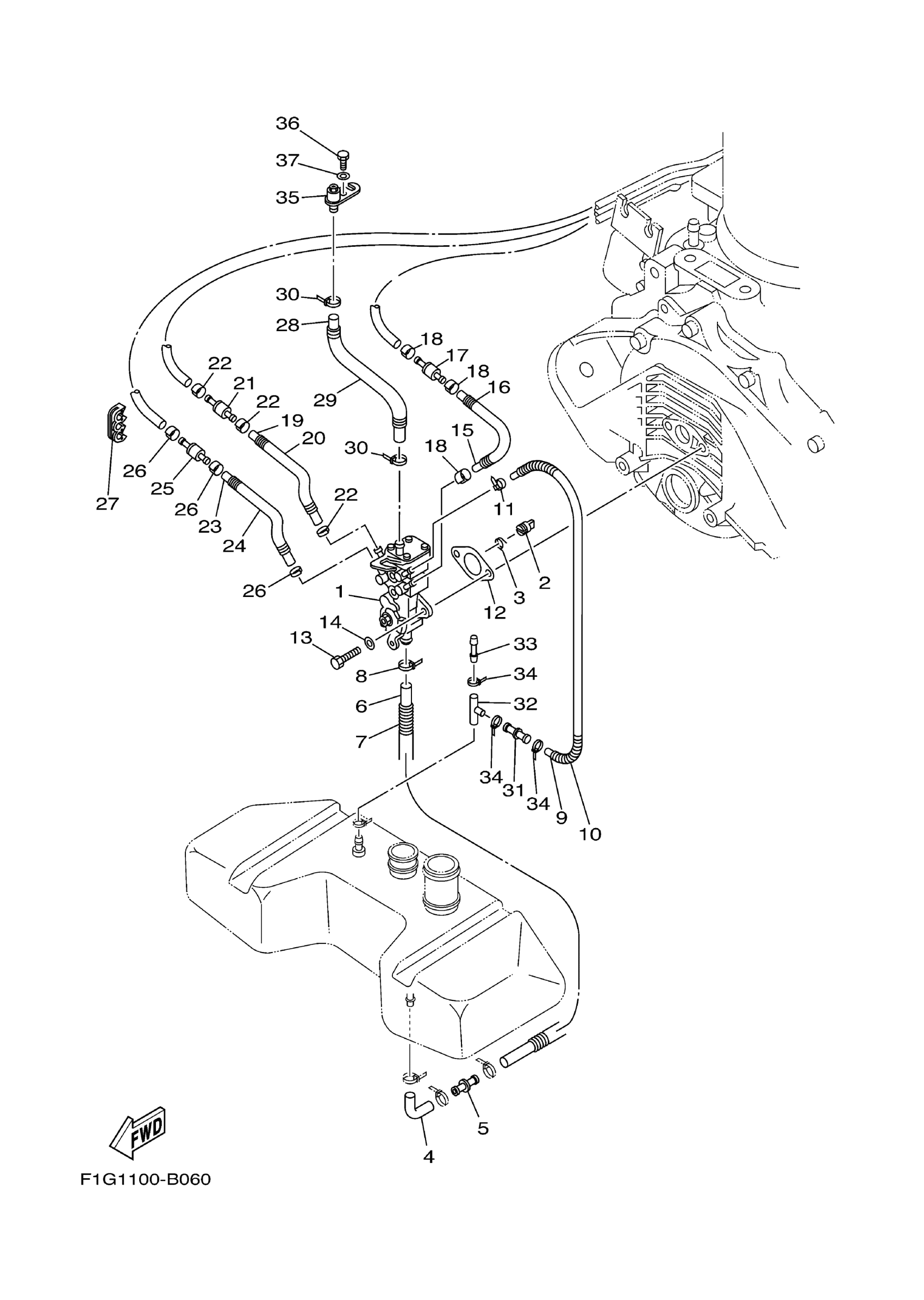

Yamaha GP1300G (GP1300R) F1GF 2008 OIL PUMP Diagram
#
1
OIL INJECTION PUMP ASSY
60T-13200-00-00
Unavailable
2
JOINT
65U-13132-00-00
Unavailable
3
SPRING
66E-13469-00-00
Unavailable
4
HOSE (L118)
90445-14M00-00
$5.49
5
CONNECTION
66V-51142-00-00
Unavailable
6
HOSE (L700)
90445-117F2-00
$30.99
7
HOSE
90446-17ME2-00
Unavailable
8
CLAMP
90465-10098-00
Unavailable
9
HOSE (L770)
90445-07006-00
Unavailable
10
HOSE, WITH SPRING
90447-07001-00
$5.60
11
CLIP
90468-02001-00
Unavailable
12
GASKET, PUMP CASE
63M-13116-00-00
Unavailable
13
BOLT(7U8)
97080-06020-00
Unavailable
14
WASHER, PLAIN (646)
92990-06600-00
$2.80
15
HOSE (L110)
90445-07007-00
Unavailable
16
HOSE
90446-10M86-00
Unavailable
17
VALVE, CHECK
67X-13183-00-00
Unavailable
18
CLIP
90468-02001-00
Unavailable
19
HOSE (L110)
90445-07007-00
Unavailable
20
HOSE
90446-10M86-00
Unavailable
21
VALVE, CHECK
67X-13183-00-00
Unavailable
22
CLIP
90468-02001-00
Unavailable
23
HOSE (L110)
90445-07007-00
Unavailable
24
HOSE
90446-10M86-00
Unavailable
25
VALVE, CHECK
67X-13183-00-00
Unavailable
26
CLIP
90468-02001-00
Unavailable
27
CLAMP
90464-07M05-00
Unavailable
28
PIPE 4
66V-24314-00-00
Unavailable
29
HOSE (L120)
90446-17ME8-00
Unavailable
30
CLAMP
90465-10098-00
Unavailable
31
JOINT
63M-13132-00-00
Unavailable
32
PIPE, JOINT 3
63M-24378-00-00
Unavailable
33
PIPE, JOINT 1
6G8-24376-00-00
Unavailable
34
CLAMP
90465-10098-00
Unavailable
35
BOLT, BREATHER
66V-13185-00-00
Unavailable
36
BOLT(GH1)
97080-06012-00
Unavailable
37
WASHER, PLAIN (646)
92990-06600-00
$2.80
