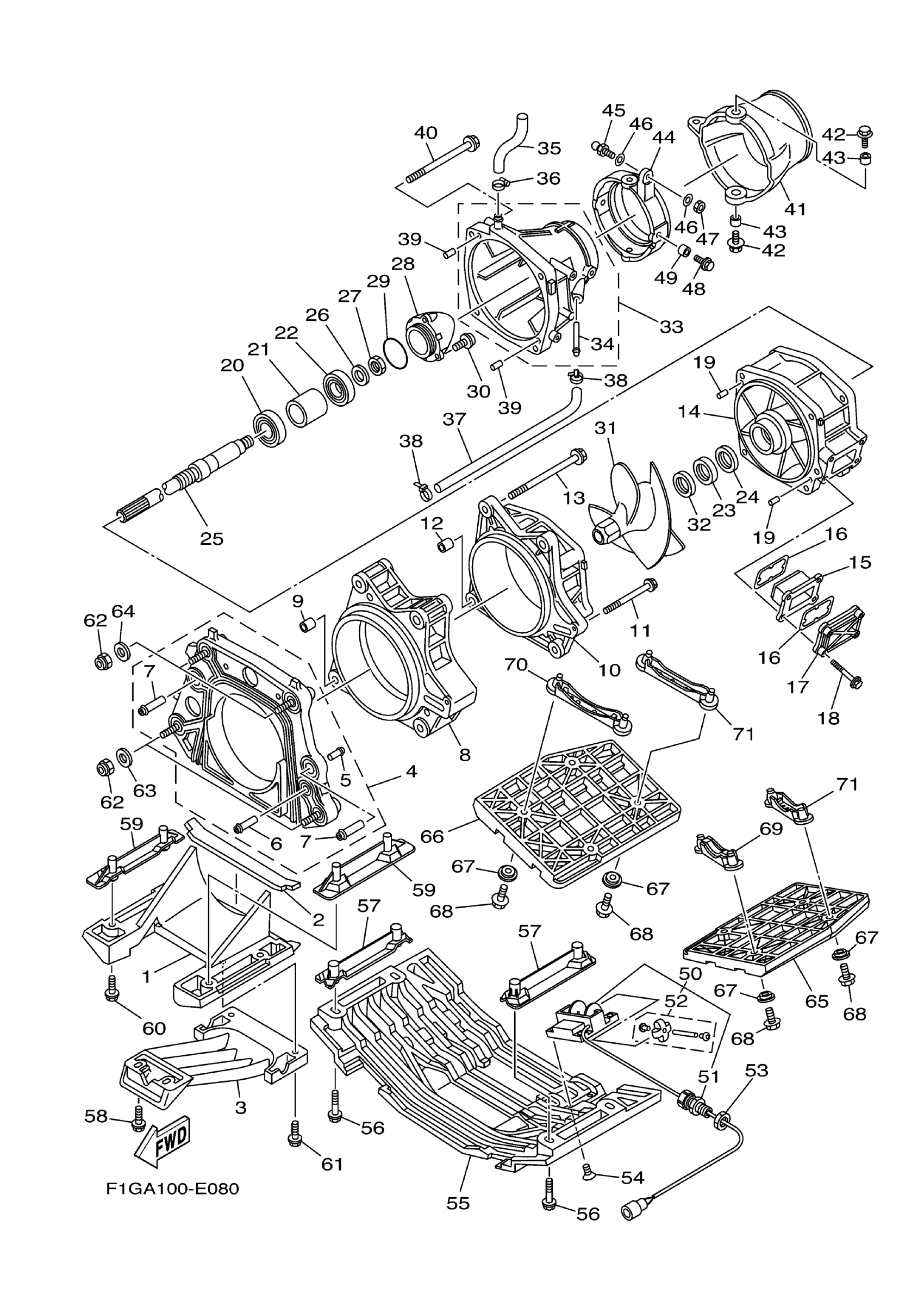

Yamaha GP1300G (GP1300R) F1GF 2008 JET UNIT 1 Diagram

#

Description
Price

1

DUCT, INTAKE

67X-51311-00-94

Unavailable

2

FELT, PACKING

67X-R1367-00-00

Unavailable

3

SCREEN, INTAKE

67X-51333-00-94

Unavailable

4

PLATE, TRANSOM

60T-G5831-00-00

Unavailable

5

. NIPPLE

65A-R1129-00-00

Unavailable

6

. NIPPLE

66V-51129-01-00

Unavailable

7

. NIPPLE

66V-51129-10-00

Unavailable

8

HOUSING, IMPELLER 2

60E-51317-00-00

Unavailable

9

PIN, DOWEL(4JT)

99590-14016-00

$4.24

10

HOUSING, IMPELLER

6CR-R1312-00-00

Unavailable

11

BOLT, WITH WASHER

90119-06859-00

Unavailable

12

PIN, DOWEL(4JT)

99590-14016-00

$4.24

13

BOLT, WITH WASHER

90119-10813-00

Unavailable

14

DUCT, IMPELLER SET

99999-04430-00

Unavailable

15

FILTER

66V-46882-00-00

Unavailable

16

. O-RING

66V-42414-00-00

Unavailable

17

COVER, WATER INLET 1

66V-45214-00-00

Unavailable

18

BOLT,WITH WASHER

90119-06898-00

Unavailable

19

PIN, DOWEL (614)

93606-12019-00

Unavailable

20

BEARING (6K8)

93306-205U1-00

Unavailable

21

SPACER 1

65V-45538-00-00

Unavailable

22

BEARING

93306-304XB-00

Unavailable

23

OIL SEAL

93101-28M66-00

Unavailable

24

OIL SEAL

93101-28002-00

Unavailable

25

SHAFT, DRIVE

66V-45511-00-00

Unavailable

26

WASHER

9299R-16600-00

Unavailable

27

NUT

95317-16700-00

Unavailable

28

CAP

6B6-51326-10-00

Unavailable

29

. O-RING

93210-464A3-00

Unavailable

30

BOLT, HEXAGON SOCKET HEAD

90110-06823-00

Unavailable

31

IMPELLER

60T-R1321-10-00

Unavailable

32

SPACER

66V-R1348-10-00

Unavailable

33

NOZZLE

60T-51318-00-94

Unavailable

34

. NIPPLE,HOSE

63M-51334-00-00

Unavailable

35

PIPE 1

60T-51673-00-00

Unavailable

36

BAND, HOSE 18

90601-118UF-00

Unavailable

37

HOSE (L330)

90445-14804-00

Unavailable

38

CLAMP

90465-10098-00

Unavailable

39

PIN, DOWEL (614)

93606-12019-00

Unavailable

40

BOLT, WITH WASHER

90119-10807-00

Unavailable

41

NOZZLE, DEFLECTOR

66V-R1313-01-00

Unavailable

42

BOLT, WITH WASHER

90119-08852-00

Unavailable

43

COLLAR(6R7)

90387-08M06-00

Unavailable

44

RING,TRIM

60T-51190-00-94

Unavailable

45

STUD, JOINT BALL

GH3-U146E-00-00

Unavailable

46

WASHER,PLATE

90201-068M4-00

Unavailable

47

NUT

9538R-06700-00

Unavailable

48

BOLT, WITH WASHER

90119-08852-00

Unavailable

49

COLLAR(6R7)

90387-08M06-00

Unavailable

50

SENSOR SPEED

GJ1-U8K31-03-00

Unavailable

51

. CONNECTOR, CABLE

F0V-U7267-10-00

Unavailable

52

REPAIR KIT, SPEED SENSOR

GJ1-U835D-00-00

Unavailable

53

. NUT, DRAIN 1

EU0-62241-30-00

Unavailable

54

SCREW, FLAT HEAD

9878R-05512-00

Unavailable

55

PLATE 2

F1G-U273B-01-00

Unavailable

56

BOLT, WITH WASHER

90119-08829-00

Unavailable

57

BRACKET 2

F1G-U8572-02-00

Unavailable

58

BOLT, WITH WASHER

90119-06896-00

Unavailable

59

BRACKET 1

F1G-U8571-02-00

Unavailable

60

BOLT, WITH WASHER

90119-08829-00

Unavailable

61

BOLT,WITH WASHER

90119-06890-00

Unavailable

62

NUT, NYLON

9572R-10300-00

Unavailable

63

WASHER, PLATE

90201-10801-00

Unavailable

64

WASHER

F1S-U725E-01-00

Unavailable

65

PLATE, STEP 2

F1G-U884S-01-00

Unavailable

66

PLATE, STEP 1 (RH)

F1G-U884R-01-00

Unavailable

67

COLLAR

90387-07803-00

Unavailable

68

BOLT, WITH WASHER

90119-06892-00

Unavailable

69

BED, WATER LOCK COMP. 1

F1G-6880A-00-00

Unavailable

70

PLATE, STEP 1

F0X-6885R-00-00

Unavailable

71

PLATE, STEP 2

F0X-6885S-00-00

Unavailable
