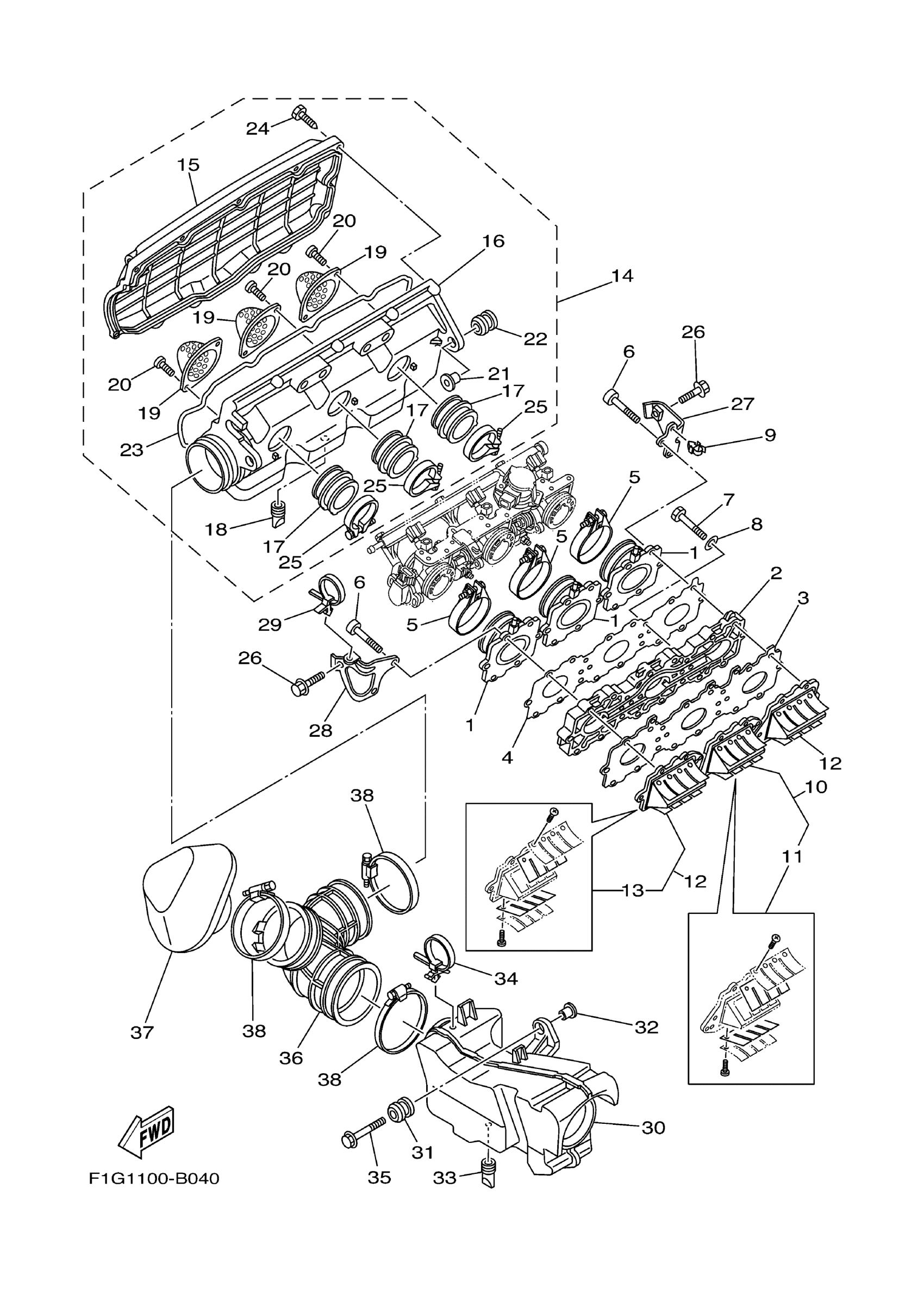

Yamaha GP1300G (GP1300R) F1GF 2008 INTAKE Diagram

#

Description
Price

1

MANIFOLD, INTAKE

60T-13555-00-00

Unavailable

2

PLATE, BALANCE

60T-14263-00-94

$160.59

3

. PLATE, REED VALVE

60T-13624-00-00

Unavailable

4

. GASKET, MANIFOLD

60T-13556-00-00

Unavailable

5

HOSE CLAMP ASSY

90450-73001-00

$10.49

6

BOLT, HEXAGON SOCKET HEAD

90110-06081-00

$2.56

7

BOLT (62Y)

97013-06040-00

$1.75

8

WASHER, PLAIN (646)

92990-06600-00

$1.84

9

CLAMP

90464-14M55-00

$1.76

10

REED VALVE ASSY

60T-13610-00-00

$175.74

11

. REED SET

60T-W0004-00-00

Unavailable

12

REED VALVE ASSY

60T-13620-00-00

Unavailable

13

. REED SET

60T-W0004-00-00

Unavailable

14

COVER SUB ASSY

60T-14480-11-00

$465.14

15

COVER, THROTTLE BODY 1

60T-14287-11-00

$50.99

16

. COVER, THROTTLE BODY 2

60T-14288-00-00

Unavailable

17

. JOINT, AIR CLEANER 1

60T-14453-00-00

Unavailable

18

RUBBER, SEAL 2

67X-42717-00-00

Unavailable

19

. ELEMENT, AIR CLEANER

60T-14451-00-00

Unavailable

20

SCREW, TAPPING(61A)

97780-50612-00

$3.77

21

COLLAR

90387-08M37-00

$9.81

22

GROMMET

90480-22M15-00

$10.18

23

. SEAL

60T-14457-00-00

$18.92

24

SCREW, TAPPING

97780-60430-00

Unavailable

25

. HOSE CLAMP ASSY

90450-57003-00

$10.36

26

BOLT, WITH WASHER

90119-08063-00

Unavailable

27

STAY

60T-14413-00-00

Unavailable

28

STAY 2

60T-14414-00-00

Unavailable

29

CLAMP

90464-50001-00

Unavailable

30

SILENCER ASSY, INTAKE

60T-14440-00-00

$80.29

31

GROMMET

90480-22M15-00

$10.18

32

COLLAR

90387-08M37-00

$9.81

33

RUBBER, SEAL 2

67X-42717-00-00

Unavailable

34

CLAMP

90464-50001-00

Unavailable

35

BOLT, WITH WASHER

90119-08187-00

$3.17

36

PIPE

60T-14419-00-00

$156.05

37

PIPE, SILENCER

60T-1441J-00-00

Unavailable

38

CLAMP, HOSE

90460-99M23-00

Unavailable
