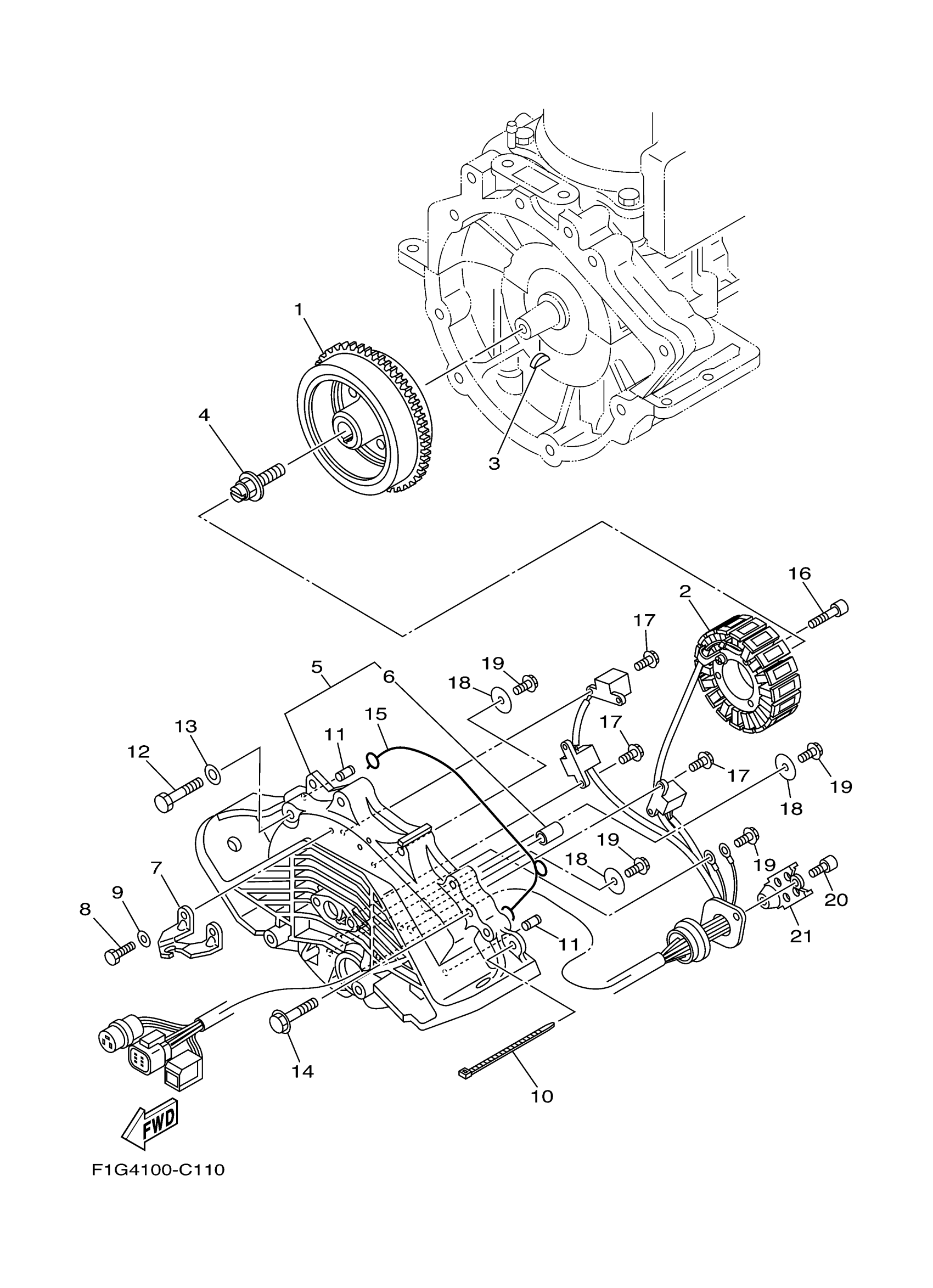

Yamaha GP1300G (GP1300R) F1GF 2008 GENERATOR Diagram
#
Description
Price
1
ROTOR ASSY
60T-81450-00-00
Unavailable
2
STATOR ASSY
60T-81410-01-00
Unavailable
4
BOLT(63M)
90109-10M72-00
Unavailable
5
COVER, FLYWHEEL
60T-81337-00-94
Unavailable
6
. BUSH, SOLID
90380-12M29-00
Unavailable
7
STAY
60T-26292-00-00
Unavailable
10
CLAMP
90465-11M52-00
Unavailable
11
PIN, DOWEL
93608-16M16-00
Unavailable
12
BOLT, HEXAGON
97013-10055-00
Unavailable
13
WASHER, PLATE
92990-10600-00
Unavailable
14
BOLT, WITH WASHER
90119-10M17-00
Unavailable
15
. O-RING
66V-81168-10-00
Unavailable
16
BOLT,SOCKET
91317-06035-00
Unavailable
17
BOLT, WITH WASHER
97513-05514-00
Unavailable
18
WASHER, PLATE
90201-05014-00
Unavailable
19
BOLT, WITH WASHER
97513-05514-00
Unavailable
20
BOLT,SOCKET
91318-06014-00
Unavailable
21
CLAMP
60E-81328-00-00
Unavailable
