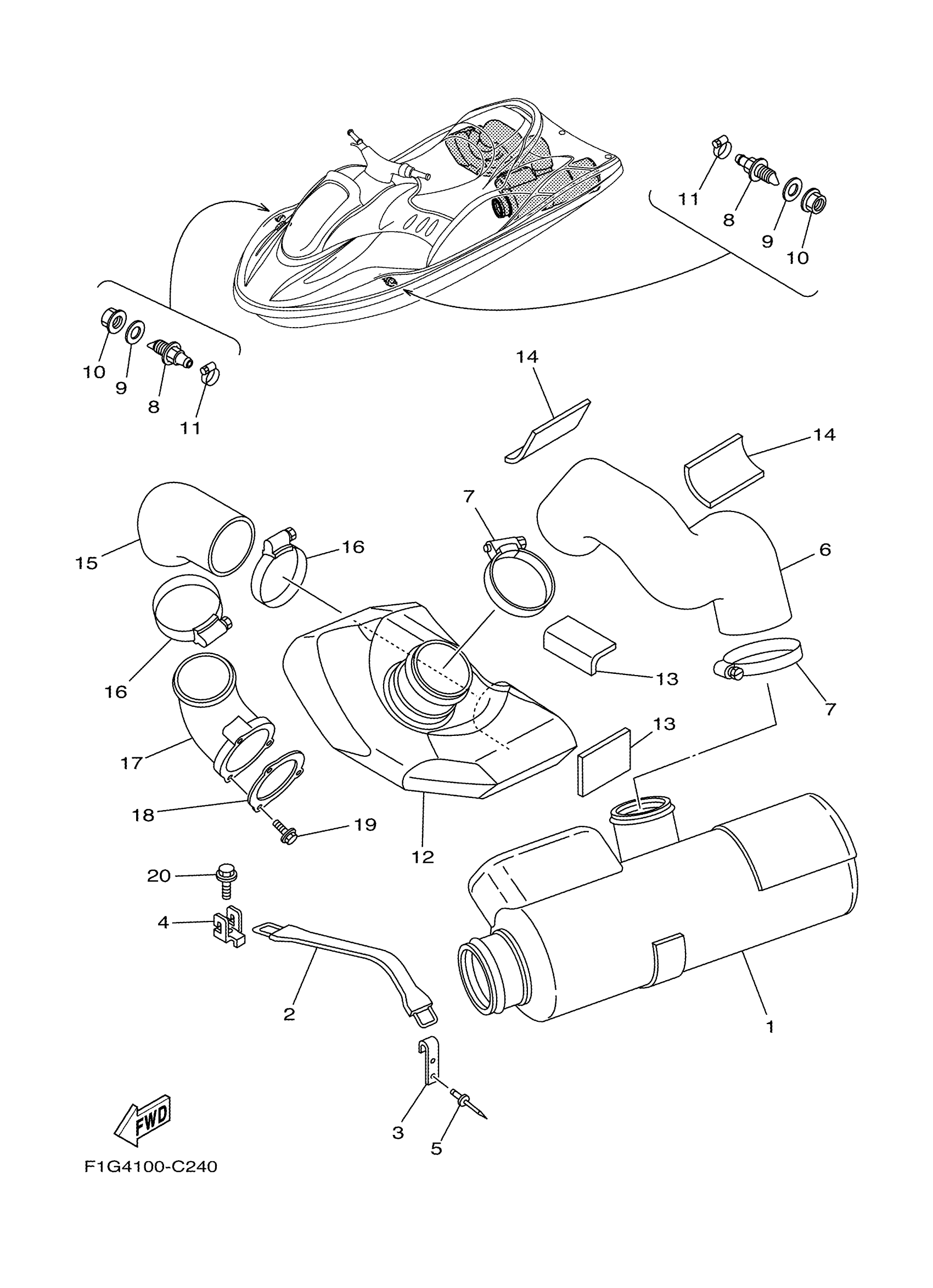

Yamaha GP1300G (GP1300R) F1GF 2008 EXHAUST 3 Diagram

#

Description
Price

1

WATER LOCK COMP.

F1G-67550-10-00

Unavailable

2

BAND,BATTERY 1

EU0-U821D-00-00

$7.33

3

HOOK A

GA7-65772-00-00

$9.08

4

HOOK A

EW2-U5772-00-00

Unavailable

5

RIVET, BLIND(EU0,USA)

90267-489U9-00

$3.11

6

HOSE, EXHAUST

F0X-U7555-00-00

Unavailable

7

HOSE CLAMP ASSY

90450-99801-00

$3.79

8

PILOT, WATER

F1G-6753B-00-00

$55.99

9

GASKET

F1B-67564-00-00

$3.64

10

NUT

F0X-62733-00-00

$11.35

11

BAND, HOSE 18

90601-118UF-00

$2.07

12

TANK, WATER

F0X-U4261-13-00

Unavailable

13

MAT, WATER LOCK

GP8-6755J-00-00

$19.49

14

MAT

GU0-67593-00-00

$29.99

15

HOSE, EXHAUST 2

F0X-U758C-00-00

Unavailable

16

BAND, HOSE 95

90601-195UD-00

Unavailable

17

THRU-HULL,EXHAUST

F0D-67565-01-00

$227.26

18

PACKING

F0D-U7525-01-00

Unavailable

19

BOLT, WITH WASHER

90119-06896-00

$5.03

20

BOLT, WITH WASHER

90119-06830-00

Unavailable
