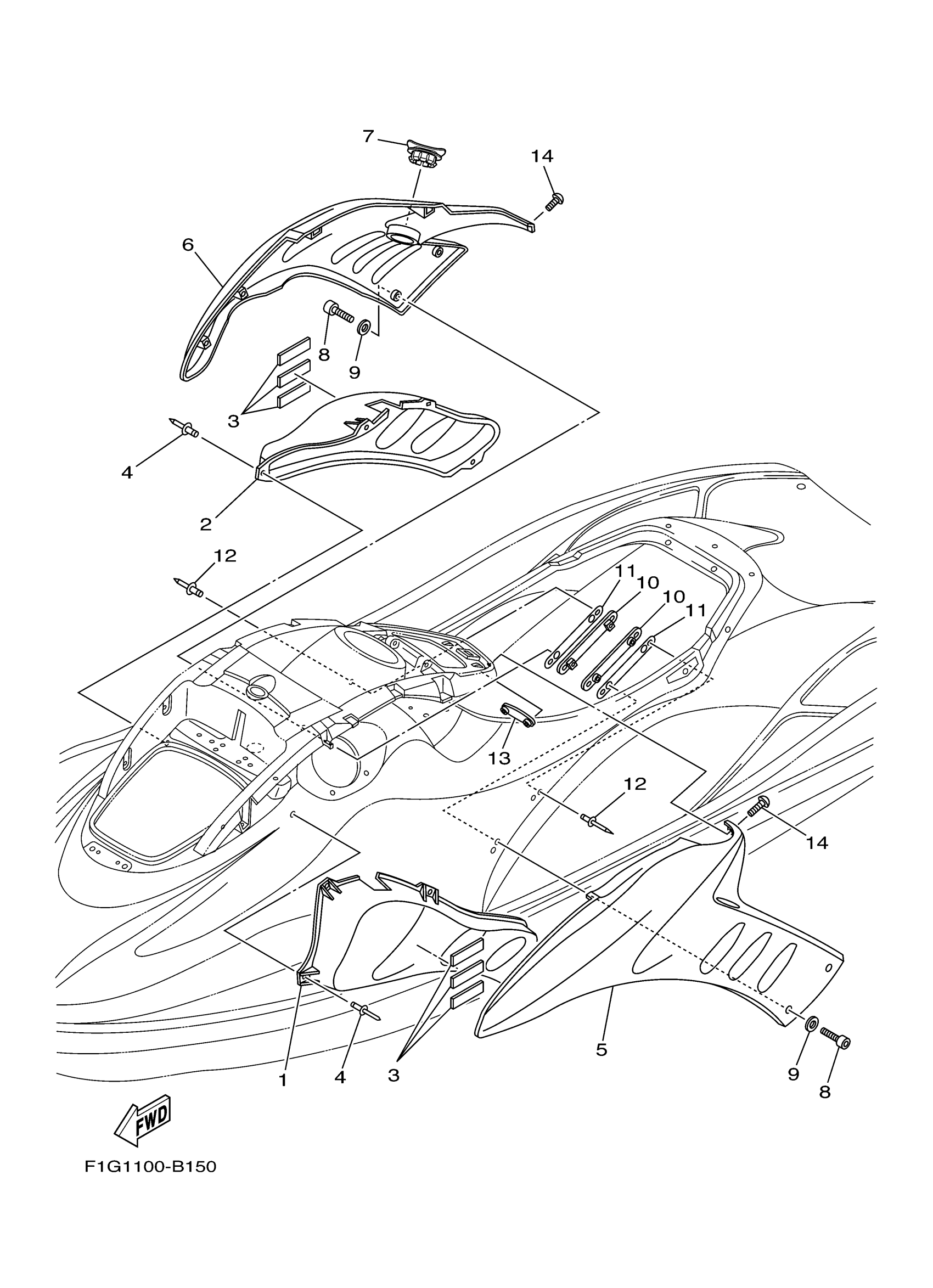

Yamaha GP1300G (GP1300R) F1GF 2008 ENGINE HATCH 1 Diagram

#

Description
Price

1

BOX, INDUCTION 1

F0X-62187-00-00

Unavailable

2

BOX, INDUCTION 2

F0X-62188-00-00

Unavailable

3

MAT, SIDE 1

F0X-6351C-00-00

Unavailable

4

RIVET, BLIND

90267-48806-00

Unavailable

5

COVER, SIDE 1 (DEEP PURPLISH BLUE METALLIC T)

F0X-U377B-70-P0

Unavailable

6

COVER, SIDE 2 (DEEP PURPLISH BLUE METALLIC T)

F0X-U377C-70-P0

Unavailable

7

SEAL

F1G-U2723-02-00

Unavailable

8

BOLT, HEXAGON SOCKET HEAD

90110-06008-00

Unavailable

9

WASHER

9299R-06200-00

Unavailable

10

BRKT., COVER SIDE 1

F0X-6377M-00-00

Unavailable

11

TAPE, FITTING

F0X-U3635-01-00

Unavailable

12

RIVET, BLIND

90267-48806-00

Unavailable

13

BRACKET, COVER SIDE 3

F0X-6377P-00-00

Unavailable

14

SCREW

90149-05919-00

Unavailable
