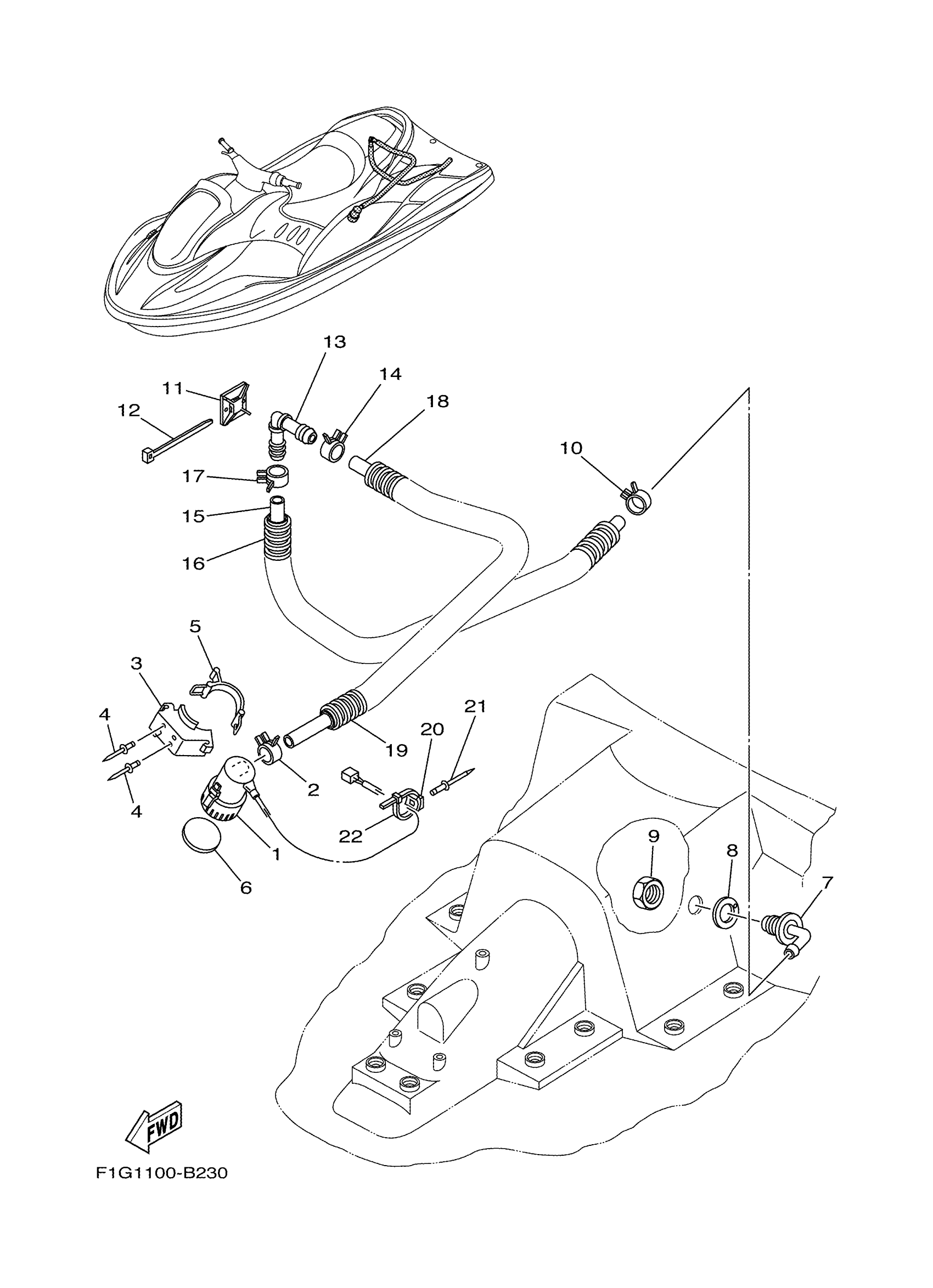

Yamaha GP1300G (GP1300R) F1GF 2008 BILGE PUMP Diagram

#

Description
Price

1

BILGE PUMP ASSY

F1B-U8360-02-00

$120.63

2

CLIP

90467-210A0-00

$5.45

3

BRACKET

F1B-U7698-01-00

Unavailable

4

RIVET, 1

F3J-U516R-00-00

$2.36

5

BAND, BATTERY

GA7-68218-00-00

$41.99

6

PACKING, BILGE

F1B-U7656-00-00

$1.17

7

BODY, DRAIN 3

F1B-6224E-00-00

$18.49

8

PACKING

F1S-U7525-01-00

$99.98

9

DRAIN, COCKPIT

F1B-62241-00-00

$13.99

10

CLIP

90467-250A0-00

$6.36

11

BASE, CLAMP

F1B-U828M-00-00

Unavailable

12

CLAMP(JN6)

90464-40825-00

$1.63

13

HOLDER, FILTER

F1G-U7817-01-00

Unavailable

14

CLIP

90467-250A0-00

$6.36

15

HOSE 1

F1B-U7626-00-00

$18.17

16

TUBE

F2T-U773D-10-00

$5.68

17

CLIP

90467-250A0-00

$6.36

18

HOSE, DRAIN 3

F1B-U7628-00-00

$21.20

19

TUBE

F2T-U773D-10-00

$5.68

20

CLAMP COMP (EU0)

90600-91736-00

Unavailable

21

RIVET, BLIND

90267-48802-00

$1.98

22

CLAMP

90464-32801-00

$1.23
