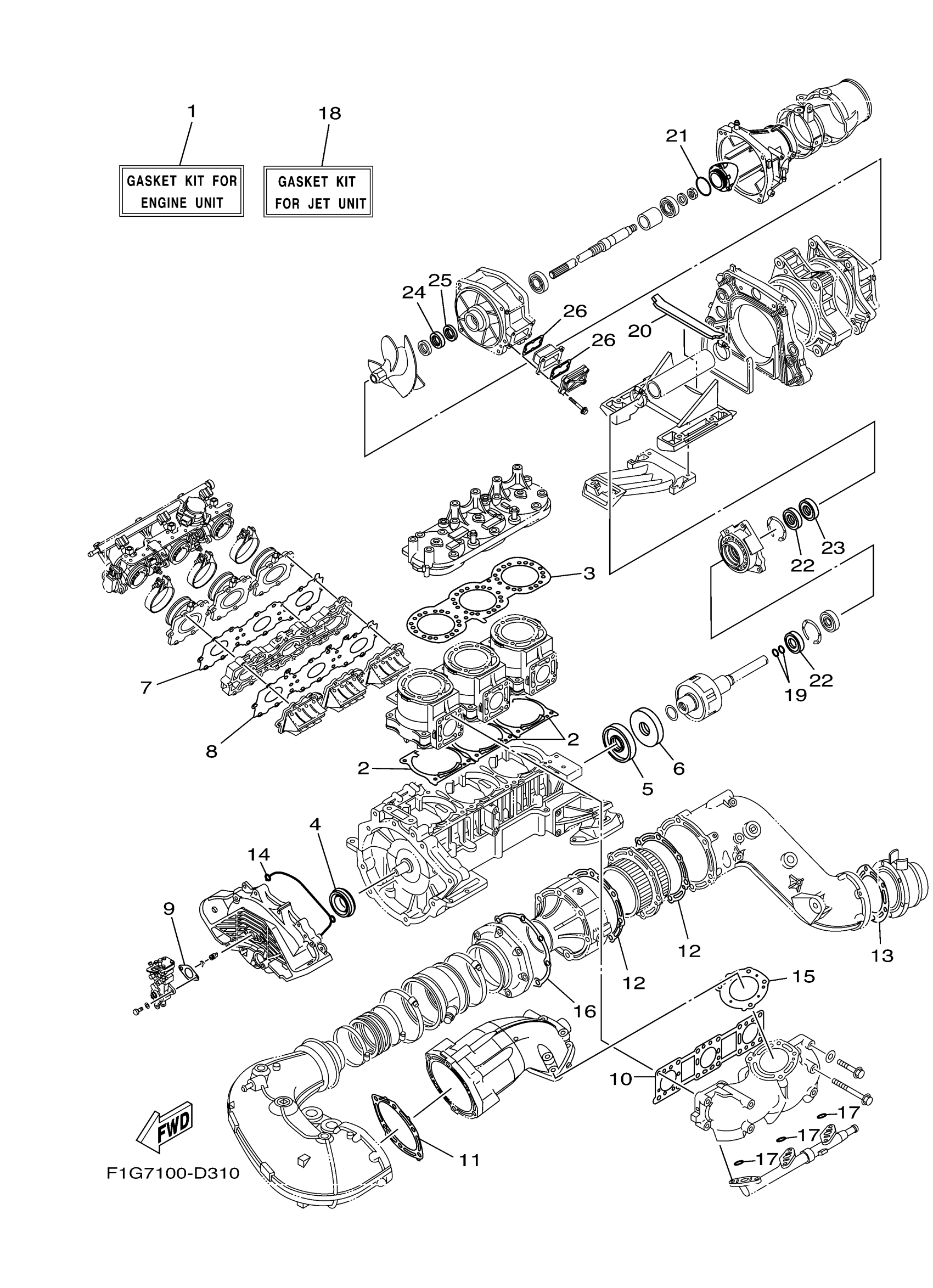

Yamaha GP1300F (WaveRunner GP1300R) F1GD 2007 REPAIR KIT 1 Diagram

#

Description

Price

1

GASKET KIT FOR ENGINE UNIT

60T-W0001-02-00

Unavailable

2

GASKET, CYLINDER

66E-11351-02-00

Unavailable

3

. GASKET, CYLINDER HEAD 1

60T-11181-10-00

Unavailable

4

OIL SEAL

93103-35011-00

Unavailable

5

OIL SEAL

93101-34001-00

Unavailable

6

OIL SEAL

93101-34002-00

Unavailable

7

. GASKET, MANIFOLD

60T-13556-00-00

Unavailable

8

. PLATE, REED VALVE

60T-13624-00-00

Unavailable

9

GASKET, PUMP CASE

63M-13116-00-00

Unavailable

10

GASKET, EXHAUST PIPE

66V-14613-01-00

Unavailable

11

GASKET, MUFFLER DAMPER 2

66V-14749-01-00

Unavailable

12

GASKET, EXHAUST OUTER COVER

66V-41124-01-00

Unavailable

13

. GASKET, EXHAUST PIPE

68N-14623-00-00

Unavailable

14

. O-RING

66V-81168-10-00

Unavailable

15

GASKET, MUFFLER DAMPER 1

66V-14739-01-00

Unavailable

16

GASKET, EXHAUST OUTER COVER

66V-41114-01-00

Unavailable

17

O-RING(6R7)

93210-17MA4-00

Unavailable

18

GASKET KIT FOR JET UNIT

60T-W0001-20-00

Unavailable

19

O-RING

93210-19001-00

Unavailable

20

FELT, PACKING

66V-R1367-00-00

Unavailable

21

. O-RING

93210-46M16-00

Unavailable

22

OIL SEAL(62T)

93101-25M55-00

Unavailable

23

OIL SEAL

93101-24001-00

Unavailable

24

OIL SEAL

93101-28M66-00

Unavailable

25

OIL SEAL

93101-28002-00

Unavailable

26

. O-RING

66V-42414-00-00

Unavailable
