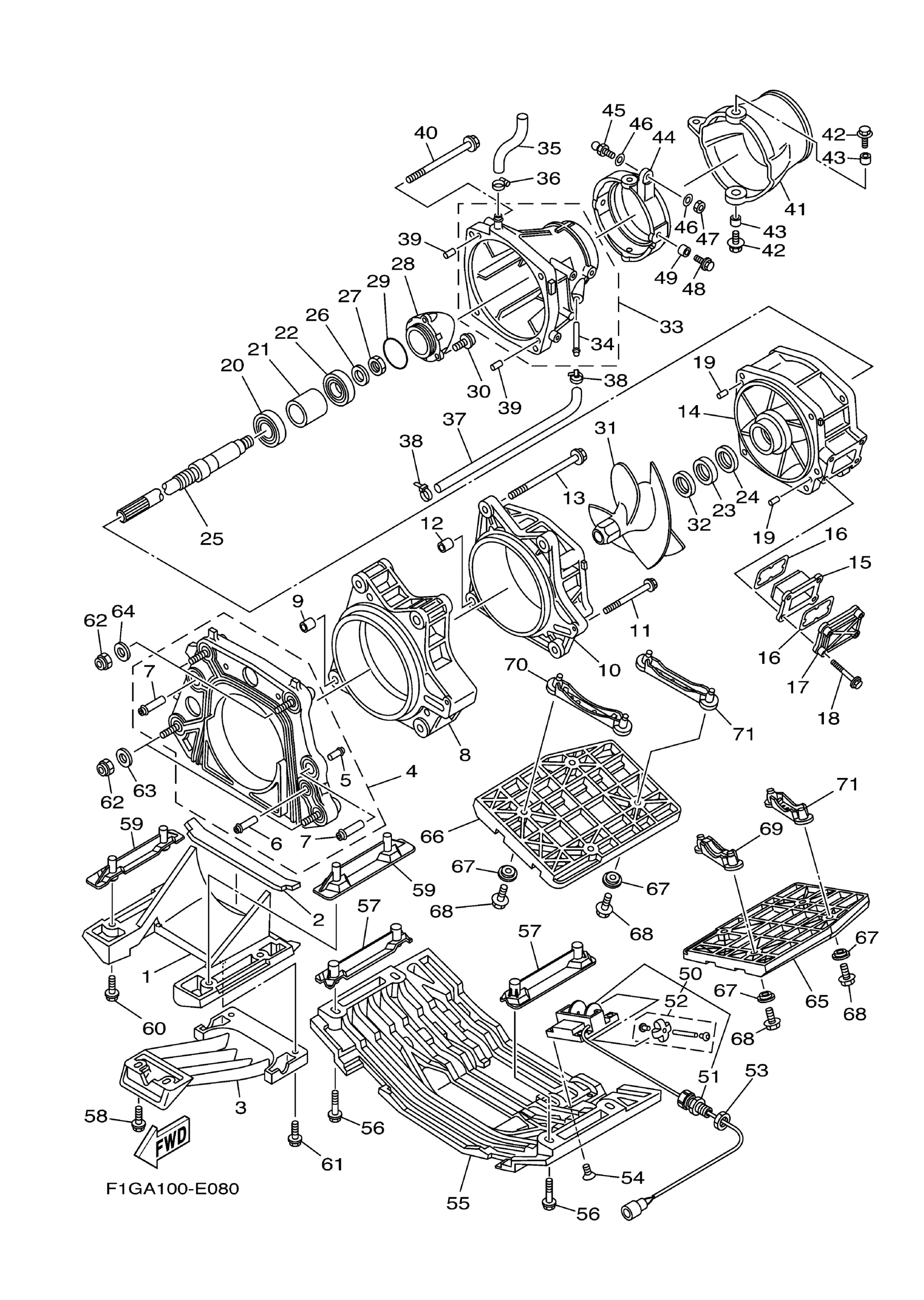

Yamaha GP1300F (WaveRunner GP1300R) F1GD 2007 JET UNIT 1 Diagram
#
1
DUCT, INTAKE
67X-51311-00-94
Unavailable
2
FELT, PACKING
67X-R1367-00-00
Unavailable
3
SCREEN, INTAKE
67X-51333-00-94
Unavailable
4
PLATE, TRANSOM
60T-G5831-00-00
Unavailable
5
. NIPPLE
65A-R1129-00-00
Unavailable
6
. NIPPLE
66V-51129-01-00
Unavailable
7
. NIPPLE
66V-51129-10-00
Unavailable
8
HOUSING, IMPELLER 2
60E-51317-00-00
Unavailable
9
PIN, DOWEL(4JT)
99590-14016-00
$4.24
10
HOUSING, IMPELLER
6CR-R1312-00-00
Unavailable
11
BOLT, WITH WASHER
90119-06859-00
Unavailable
12
PIN, DOWEL(4JT)
99590-14016-00
$4.24
13
BOLT, WITH WASHER
90119-10813-00
Unavailable
14
DUCT, IMPELLER SET
99999-04430-00
Unavailable
15
FILTER
66V-46882-00-00
Unavailable
16
. O-RING
66V-42414-00-00
Unavailable
17
COVER, WATER INLET 1
66V-45214-00-00
Unavailable
18
BOLT,WITH WASHER
90119-06898-00
Unavailable
19
PIN, DOWEL (614)
93606-12019-00
Unavailable
20
BEARING (6K8)
93306-205U1-00
Unavailable
21
SPACER 1
65V-45538-00-00
Unavailable
22
BEARING
93306-304XB-00
Unavailable
23
OIL SEAL
93101-28M66-00
Unavailable
24
OIL SEAL
93101-28002-00
Unavailable
25
SHAFT, DRIVE
66V-45511-00-00
Unavailable
26
WASHER
9299R-16600-00
Unavailable
27
NUT
95317-16700-00
Unavailable
28
CAP
6B6-51326-10-00
Unavailable
29
. O-RING
93210-464A3-00
Unavailable
30
BOLT, HEXAGON SOCKET HEAD
90110-06823-00
Unavailable
31
IMPELLER
60T-R1321-10-00
Unavailable
32
SPACER
66V-R1348-10-00
Unavailable
33
NOZZLE
60T-51318-00-94
Unavailable
34
. NIPPLE,HOSE
63M-51334-00-00
Unavailable
35
PIPE 1
60T-51673-00-00
Unavailable
36
BAND, HOSE 18
90601-118UF-00
Unavailable
37
HOSE (L330)
90445-14804-00
Unavailable
38
CLAMP
90465-10098-00
Unavailable
39
PIN, DOWEL (614)
93606-12019-00
Unavailable
40
BOLT, WITH WASHER
90119-10807-00
Unavailable
41
NOZZLE, DEFLECTOR
66V-R1313-01-00
Unavailable
42
BOLT, WITH WASHER
90119-08852-00
Unavailable
43
COLLAR(6R7)
90387-08M06-00
Unavailable
44
RING,TRIM
60T-51190-00-94
Unavailable
45
STUD, JOINT BALL
GH3-U146E-00-00
Unavailable
46
WASHER,PLATE
90201-068M4-00
Unavailable
47
NUT
9538R-06700-00
Unavailable
48
BOLT, WITH WASHER
90119-08852-00
Unavailable
49
COLLAR(6R7)
90387-08M06-00
Unavailable
50
SENSOR SPEED
GJ1-U8K31-03-00
Unavailable
51
. CONNECTOR, CABLE
F0V-U7267-10-00
Unavailable
52
REPAIR KIT, SPEED SENSOR
GJ1-U835D-00-00
Unavailable
53
. NUT, DRAIN 1
EU0-62241-30-00
Unavailable
54
SCREW, FLAT HEAD
9878R-05512-00
Unavailable
55
PLATE 2
F1G-U273B-01-00
Unavailable
56
BOLT, WITH WASHER
90119-08829-00
Unavailable
57
BRACKET 2
F1G-U8572-02-00
Unavailable
58
BOLT, WITH WASHER
90119-06896-00
Unavailable
59
BRACKET 1
F1G-U8571-02-00
Unavailable
60
BOLT, WITH WASHER
90119-08829-00
Unavailable
61
BOLT,WITH WASHER
90119-06890-00
Unavailable
62
NUT, NYLON
9572R-10300-00
Unavailable
63
WASHER, PLATE
90201-10801-00
Unavailable
64
WASHER
F1S-U725E-01-00
Unavailable
65
PLATE, STEP 2
F1G-U884S-01-00
Unavailable
66
PLATE, STEP 1 (RH)
F1G-U884R-01-00
Unavailable
67
COLLAR
90387-07803-00
Unavailable
68
BOLT, WITH WASHER
90119-06892-00
Unavailable
69
BED, WATER LOCK COMP. 1
F1G-6880A-00-00
Unavailable
70
PLATE, STEP 1
F0X-6885R-00-00
Unavailable
71
PLATE, STEP 2
F0X-6885S-00-00
Unavailable
