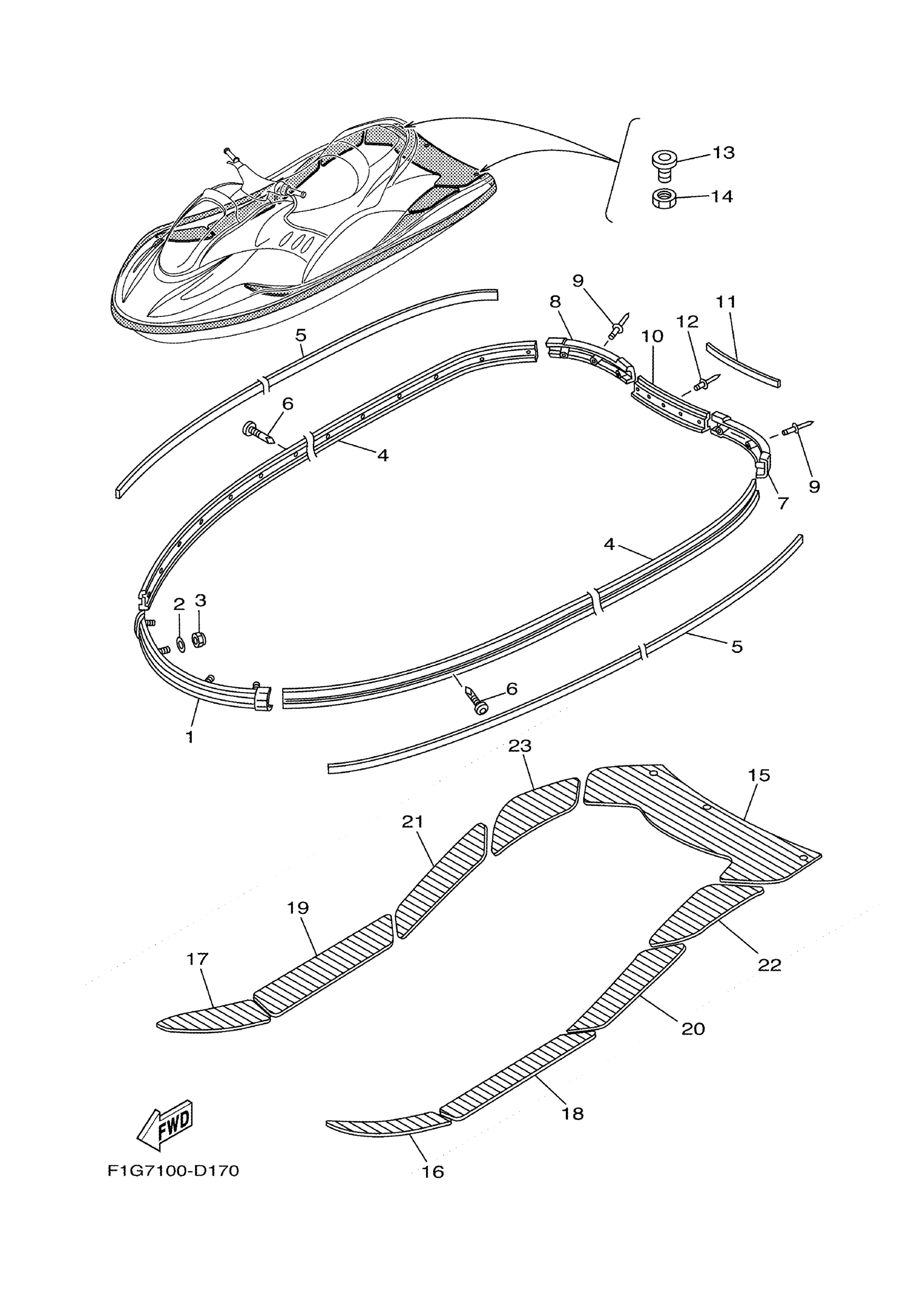

Yamaha GP1300F (WaveRunner GP1300R) F1GD 2007 GUNWALE MAT Diagram

#

Description
Price

1

BOW GUNWALE COMP.

GP7-U2501-20-00

$131.80

2

WASHER

9299R-06200-00

$0.43

3

NUT, NYLON

9572R-06300-00

$2.80

4

GUNWALE, SIDE

F0X-U2512-00-00

$130.29

5

GUNWALE,INNER (BLACK)

F0X-U2519-02-00

Unavailable

6

SCREW,TAPPING

90169-059U1-00

$1.05

7

GUNWALE, STERN 1

F0X-U251D-00-00

Unavailable

8

GUNWALE, STERN 2

F0X-U251E-00-00

Unavailable

9

RIVET, BLIND

90267-47801-00

$1.15

10

COVER, GUNWALE 1

F0X-U252C-00-00

$125.74

11

COVER, GUNWALE 2(BLACK)

F0X-U252D-01-00

$133.32

12

RIVET, BLIND

90267-489US-00

Unavailable

13

ROPE HOLE

FN8-61651-01-00

$5.00

14

NUT

EU0-61652-00-00

$11.48

15

MAT, UPPER

F1G-U3581-00-00

Unavailable

16

MAT, STEP 1

F1G-U351H-00-00

Unavailable

17

MAT, STEP 2

F1G-U351J-00-00

Unavailable

18

MAT, STEP 3

F1G-U351K-00-00

Unavailable

19

MAT, STEP 4

F1G-U351M-00-00

Unavailable

20

MAT, STEP 5

F1G-U351N-00-00

Unavailable

21

MAT, STEP 6

F1G-U351P-00-00

Unavailable

22

MAT, STEP 7

F1G-U351R-00-00

Unavailable

23

MAT, STEP 8

F1G-U351S-00-00

Unavailable
