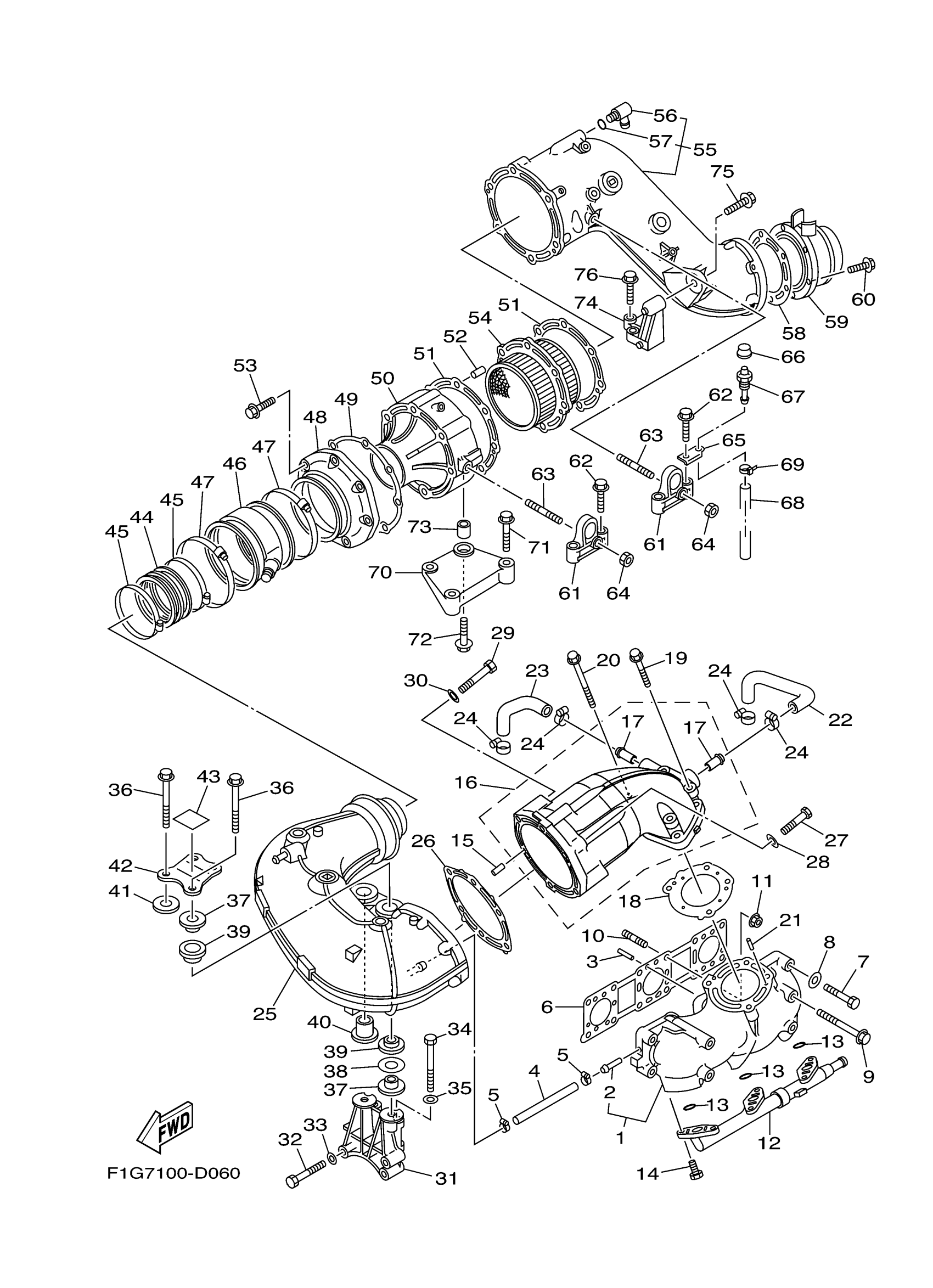

Yamaha GP1300F (WaveRunner GP1300R) F1GD 2007 EXHAUST 1 Diagram

#

Description
Price

1

MUFFLER 1

66V-14711-00-94

Unavailable

2

. NIPPLE

65U-14251-00-00

Unavailable

3

PIN, DOWEL (614)

93606-12019-00

$3.05

4

HOSE (L125)

90445-12M10-00

Unavailable

5

CLAMP, HOSE(61L)

90460-11M17-00

$16.66

6

GASKET, EXHAUST PIPE

66V-14613-01-00

$69.68

7

BOLT, HEXAGON

97013-10055-00

Unavailable

8

WASHER, PLATE

92990-10600-00

$2.57

9

BOLT, WITH WASHER

90119-10M11-00

Unavailable

10

BOLT, STUD

90116-10M68-00

$10.29

11

NUT

90179-10M36-00

Unavailable

12

PIPE, JOINT 2

66V-24377-00-00

Unavailable

13

O-RING(6R7)

93210-17MA4-00

$4.65

14

BOLT

90109-06M99-00

$4.66

15

PIN, DOWEL (614)

93606-12019-00

$3.05

16

RING, JOINT

60T-14712-10-94

$648.47

17

. NIPPLE

66E-51129-00-00

Unavailable

18

GASKET, MUFFLER DAMPER 1

66V-14739-01-00

$49.49

19

BOLT, WITH WASHER

90119-10M20-00

$5.55

20

BOLT, WITH WASHER

90119-10M19-00

$8.32

21

PIN, DOWEL (614)

93606-12019-00

$3.05

22

HOSE 1

60T-12576-00-00

Unavailable

23

HOSE 2

60T-12577-00-00

Unavailable

24

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

25

MUFFLER 2

66V-14721-A0-94

$1,209.08

26

GASKET, MUFFLER DAMPER 2

66V-14749-01-00

$81.80

27

BOLT

97013-10065-00

Unavailable

28

WASHER, PLATE

92990-10600-00

$2.57

29

BOLT, WITH WASHER(63M)

97513-10585-00

Unavailable

30

WASHER, PLATE

92990-10600-00

$2.57

31

STAY, MUFFLER 1

66V-14771-01-94

$113.62

32

BOLT, WITH WASHER

97513-10560-00

Unavailable

33

WASHER, PLATE

92990-10600-00

$2.57

34

BOLT, WITH WASHER

97513-10590-00

Unavailable

35

WASHER, PLATE

92990-10600-00

$2.57

36

BOLT, WITH WASHER

90119-10M23-00

$10.24

37

COLLAR

90387-12M05-00

Unavailable

38

WASHER, PLATE

90201-28008-00

Unavailable

39

GROMMET

90480-30M78-00

Unavailable

40

COLLAR

66V-14779-00-00

Unavailable

41

PLATE 2

66V-1477L-00-00

Unavailable

42

BRACKET, CYLINDER HEAD COVER

66V-11152-00-00

$28.77

43

LABEL, CAUTION

66V-14488-00-00

$3.64

44

JOINT, EXHAUST 2

66V-14625-00-00

$80.29

45

HOSE CLAMP ASSY

90450-90M10-00

$52.99

46

JOINT, EXHAUST 1

66V-14615-02-00

$72.49

47

CLAMP, HOSE (707)

90460-99116-00

Unavailable

48

OUTER COVER, EXHAUST

68N-41113-00-94

$189.38

49

GASKET, EXHAUST OUTER COVER

66V-41114-01-00

$35.49

50

INNER COVER, EXHAUST

68N-41111-00-94

$256.05

51

GASKET, EXHAUST OUTER COVER

66V-41124-01-00

$51.50

52

PIN,DOWEL(296)

93606-14081-00

Unavailable

53

BOLT, WITH WASHER

90119-08M63-00

Unavailable

54

CATALYST ASSY.

60T-14740-01-00

$1,457.56

55

OUTER COVER, EXHAUST

68N-41123-00-94

$934.83

56

. PIPE 1

67X-12481-00-00

Unavailable

57

. O-RING

93210-17001-00

Unavailable

58

. GASKET, EXHAUST PIPE

68N-14623-00-00

$25.49

59

PIPE, TAIL

68N-14784-00-94

Unavailable

60

BOLT (6F5)

90105-08M22-00

Unavailable

61

STAY, MUFFLER 1

66E-14771-01-00

Unavailable

62

BOLT, WITH WASHER

90119-10M18-00

$5.55

63

BOLT, STUD

90116-10M66-00

Unavailable

64

NUT

90179-10M35-00

Unavailable

65

PLATE 1

66V-1477K-00-00

Unavailable

66

CAP, GREASE NIPPLE

663-45119-01-00

Unavailable

67

NIPPLE, GREASE

61L-5169A-00-00

$7.40

68

HOSE, DELIVERY

6AP-5110K-00-00

Unavailable

69

CLAMP

90465-10098-00

$1.68

70

STAY 5

66V-14782-00-94

$121.20

71

BOLT, WASHER BASED

90105-10M87-00

Unavailable

72

BOLT, WITH WASHER

90119-10M17-00

$9.08

73

PIN, DOWEL(4JT)

99590-14016-00

Unavailable

74

STAY, MUFFLER

68N-14791-00-94

$116.65

75

BOLT, WITH WASHER

90119-10M00-00

$8.56

76

BOLT, WITH WASHER

90119-10031-00

$6.82
