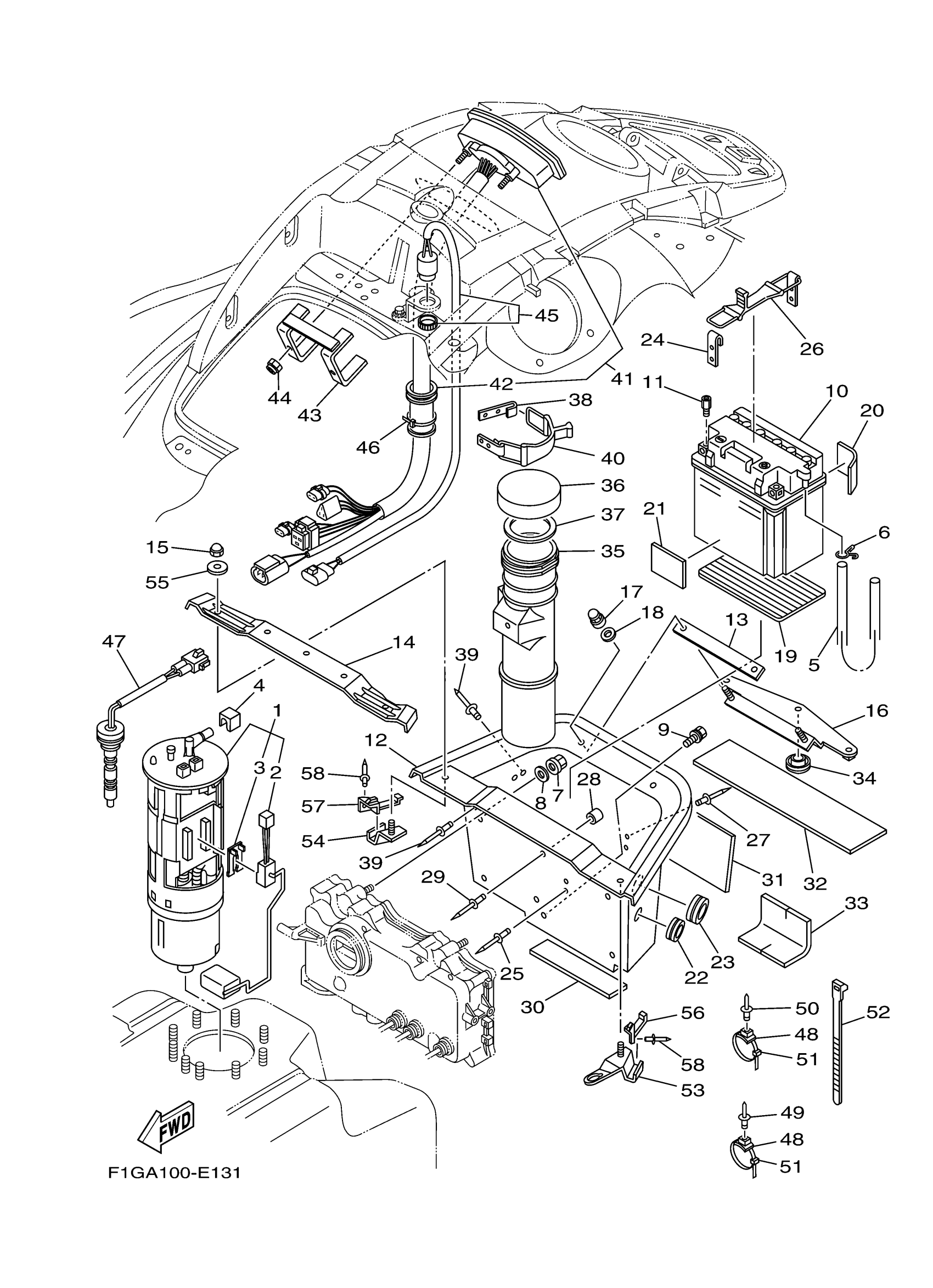

Yamaha GP1300F (WaveRunner GP1300R) F1GD 2007 ELECTRICAL 2 Diagram

#

Description
Price

1

FUEL PUMP COMP.

60E-13907-0X-00

Unavailable

2

. FUEL SENDER ASSY

60E-682E0-00-00

$243.92

3

DAMPER, STOPPER

60E-82556-10-00

$18.49

4

COVER

60E-24474-00-00

$3.64

5

HOSE, AIR VENT 3

EU0-U7856-50-00

Unavailable

6

CLIP

90467-089U1-00

$1.44

7

NUT, NYLON (6J8)

95780-08300-00

$10.55

8

WASHER

9299R-08200-00

$1.82

9

BOLT, WITH WASHER

90119-08826-00

$4.62

10

BATTERY ASSY

EU0-82110-08-00

Unavailable

11

NUT

F0W-68239-01-00

$18.92

12

CASE, BATTERY

F1G-U8211-01-00

Unavailable

13

PACKING 5

F0X-U266D-00-00

Unavailable

14

BEAM, DECK 1

F1G-68952-00-00

$96.95

15

NUT, CROWN

90176-06005-00

$6.82

16

BRACKET, BASE BATTERY

F0X-6821H-00-00

$74.23

17

NUT

90179-08978-00

$6.36

18

WASHER

9299R-08200-00

$1.82

19

PAD, BATTERY

F1S-U8221-00-00

$2.75

20

PAD, BATTERY 3

F0W-U822D-00-00

Unavailable

21

PAD, BATTERY 2

F0W-U822C-00-00

Unavailable

22

GROMMET

90480-279U1-00

$11.35

23

GROMMET

90480-38800-00

$2.73

24

HOOK A

GA7-65772-00-00

$9.08

25

RIVET, BLIND(EU0,USA)

90267-489U9-00

Unavailable

26

HOOK COMP

GJ1-66607-00-00

Unavailable

27

RIVET, BLIND(EU0,USA)

90267-489U9-00

Unavailable

28

CUSHION, RUBBER

GK5-63768-00-00

$5.80

29

RIVET (EU0)

90267-48938-00

$5.00

30

TRIM, MAT

F0X-6352C-00-00

$8.32

31

MAT

GU0-67593-00-00

$29.99

32

MAT, LOWER

F0X-6351B-00-00

$22.71

33

MAT, WATER LOCK

GP8-6755J-00-00

$19.49

34

CAP

F0X-65568-00-00

Unavailable

35

BOX, FIRE EXTINGUISHER

F0X-U5983-01-00

Unavailable

36

. CAP, CASE

EW2-U5912-01-00

Unavailable

37

PACKING, CASE

EW2-U5913-01-00

Unavailable

38

HOOK A

GA7-65772-00-00

$9.08

39

RIVET, BLIND(EU0,USA)

90267-489U9-00

Unavailable

40

HOOK COMP

GJ1-66607-00-00

Unavailable

41

METER ASSY

F1G-6820A-10-00

Unavailable

42

GROMMET

GU2-6822E-01-00

$24.98

43

BRACKET, METER

GP7-68238-10-00

Unavailable

44

NUT, FLANGE

9572R-05300-00

$1.43

45

BUZZER

F1S-68341-00-00

$113.62

46

CLAMP

90464-32801-00

$1.23

47

SENDER, OIL

F0D-U824C-21-00

Unavailable

48

CLAMP COMP (EU0)

90600-91736-00

Unavailable

49

RIVET, BLIND

90267-489U6-00

$1.37

50

RIVET, BLIND

90267-48802-00

$1.98

51

CLAMP

90464-32801-00

$1.23

52

BAND

90601-200U2-00

$3.16

53

STAY 1

F0X-65938-01-00

$56.99

54

STAY 2

F0X-65939-01-00

$28.77

55

WASHER, PLATE

90201-06014-00

Unavailable

56

PACKING, SEAL 2

F0X-63225-00-00

Unavailable

57

PACKING, SEAL

F0X-63226-00-00

$20.99

58

RIVET, BLIND

90267-489U6-00

$1.37
