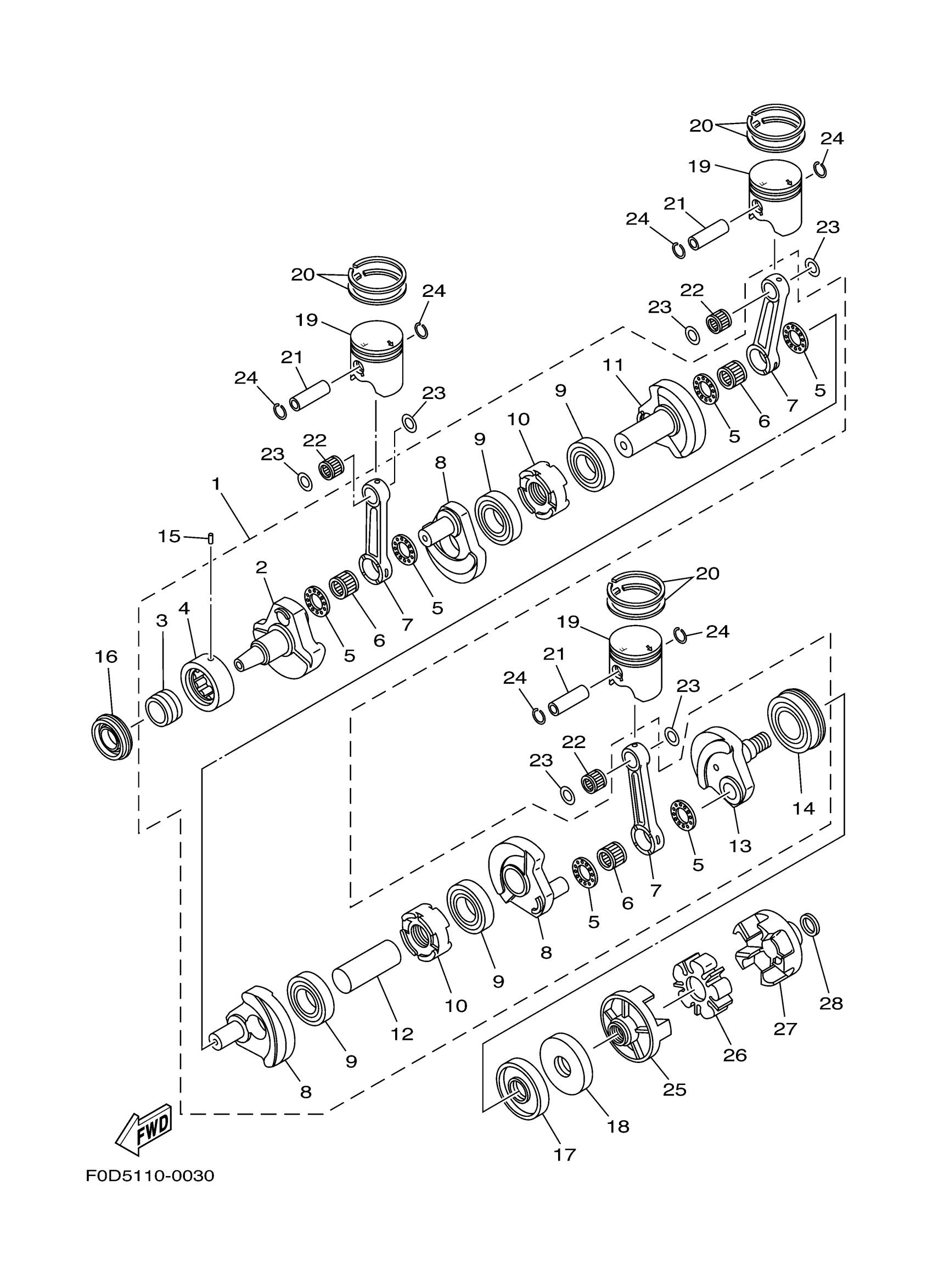

Yamaha GP1300F (WaveRunner GP1300R) F1GD 2007 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

66V-11400-00-00

$1,917.90

2

. CRANK 1

66E-11412-00-00

Unavailable

3

. COLLAR

90387-35M01-00

$92.52

4

. BEARING

93390-000U6-00

Unavailable

5

. WASHER, CRANK PIN

66E-11685-00-00

$13.99

6

. BEARING

93310-627U6-00

$61.93

7

. ROD, CONNECTING

66E-11651-00-00

$98.49

8

. CRANK 2

66E-11422-00-00

$207.45

9

. BEARING

93306-208U1-00

$68.64

10

. SEAL, LABYRINTH 1

66E-11515-00-00

Unavailable

11

. CRANK 5

66V-11452-00-00

$289.54

12

. CRANK 3

66E-11431-00-00

$141.78

13

. CRANK 4

66E-11442-00-00

$332.82

14

. BEARING

93306-308U1-00

$102.97

15

PIN (2H7)

93603-10049-00

Unavailable

16

OIL SEAL

93103-35011-00

$34.45

17

OIL SEAL

93101-34001-00

$20.09

18

OIL SEAL

93101-34002-00

$20.09

19

PISTON (STD)

60T-11631-10-A0

$214.91

19

PISTON (STD)

60T-11631-10-B0

$223.87

19

PISTON (STD)

60T-11631-10-C0

Unavailable

19

PISTON (STD)

60T-11631-10-D0

Unavailable

20

PISTON RING SET (STD)

60T-11603-00-00

$53.72

21

PIN, PISTON

60T-11633-00-00

$33.01

22

BEARING

93310-422U2-00

$28.11

23

WASHER, PLATE

90201-22M04-00

Unavailable

24

CLIP, PISTON PIN

66E-11634-00-00

$0.92

25

FLANGE, COUPLING

66E-45813-10-94

$101.95

26

RUBBER SHAFT COUPLING

66E-4581J-00-00

$58.19

27

FLANGE, COUPLING 1

68N-45593-00-94

$74.61

28

WASHER, PLATE

90201-24800-00

$1.43
