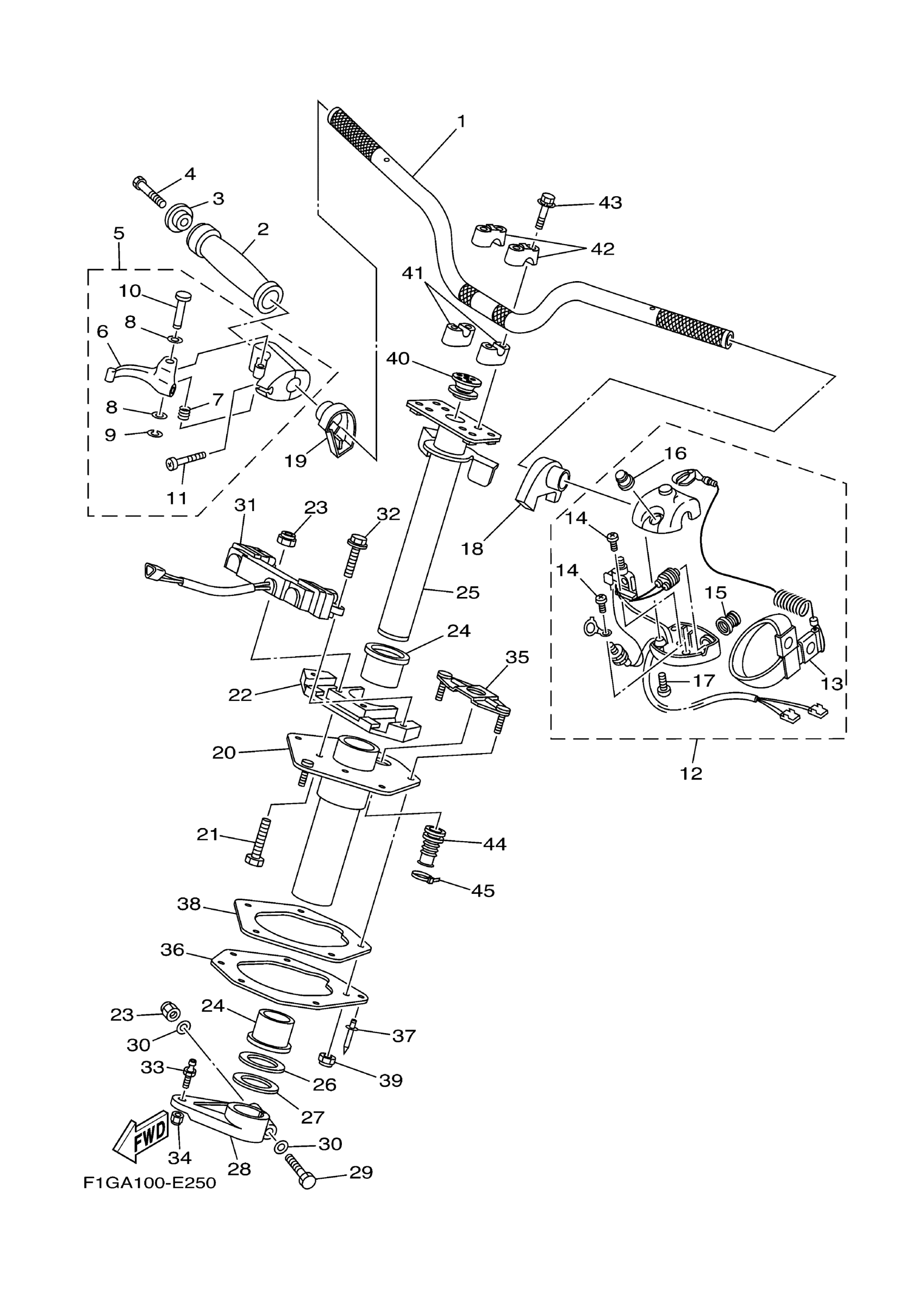

Yamaha GP1300E (WaveRunner GP1300R) F1GA 2006 STEERING 1 Diagram

#

Description
Price

1

HANDLE

F0X-61552-00-00

$160.59

2

GRIP, HANDLE

GP7-U155D-01-00

$38.75

3

GRIP, END

GP7-U155F-00-00

$2.88

4

BOLT, HEXAGON SOCKET HEAD

90110-05908-00

$1.83

5

THROTTLE LEVER ASSY

F0D-67250-10-00

$106.05

6

LEVER, THROTTLE

F0D-67255-02-00

$27.26

7

. SPRING

EW2-67256-00-00

$6.36

8

WASHER, PLAIN (646)

92990-05600-00

Unavailable

9

CIRCLIP (EU0)

99080-04600-00

$1.70

10

. SHAFT

F0D-67257-00-00

$16.99

11

SCREW, PANHEAD (A93)

98580-05525-00

$1.43

12

SWITCH BOX ASSY

FK7-68310-07-00

$159.77

13

. LANYARD, STOP SWITCH

EW2-68348-00-00

$25.35

14

SCREW, PAN HEAD (J10)

98580-03008-00

$2.14

15

. STOP BUTTON COMP

FK7-68312-02-00

$12.82

16

. START BUTTON COMP

FK7-68313-02-00

$11.31

17

SCREW, PANHEAD (A93)

98580-05525-00

$1.43

18

SPACER

F1G-U143G-00-00

Unavailable

19

SPACER 2

F1G-U143H-00-00

Unavailable

20

HOUSING ASSY

F1G-6152M-11-00

$256.05

21

BOLT

90101-08011-00

$8.32

22

SPACER, BRACKET

F1G-6146H-01-00

$140.89

23

. NUT, SELF-LOCKING

95720-08300-00

$3.33

24

BEARING, COLUMN

F0X-6141B-00-00

Unavailable

25

COLUMN, STEERING

F1G-61541-00-00

$266.65

26

WASHER

F0X-6153P-00-00

Unavailable

27

WASHER

F0X-6153P-10-00

Unavailable

28

ARM, STEERING

F0X-6151B-00-00

Unavailable

29

BOLT

90101-08003-00

Unavailable

30

.. WASHER, PLATE

92990-08600-00

$2.17

31

. SENSOR ASSY

F1B-68303-10-00

Unavailable

32

BOLT, WITH WASHER

90119-08925-00

Unavailable

33

STUD, JOINT BALL

EU0-61461-02-00

$14.38

34

NUT, SELF-LOCKING

95720-06300-00

$1.82

35

PLATE

F1G-61596-00-00

$43.92

36

PLATE, BRACKET

F1G-6133B-01-00

$134.83

37

RIVET, BLIND

90267-489U6-00

$1.37

38

SEAL, RUBBER

F1G-6143C-00-00

$13.99

39

NUT, NYLON (6J8)

95780-08300-00

$10.55

40

PACKING, STEERING COLUMN

F1G-61469-00-00

$29.99

41

HOLDER, HANDLE UPPER

EU0-23814-02-00

$16.99

42

HOLDER, HANDLE UPPER

EU0-23814-32-00

$20.34

43

BOLT,WITH WASHER

90119-08831-00

Unavailable

44

GROMMET

F0D-6822E-00-00

$18.49

45

CLAMP

90464-32801-00

$1.23
