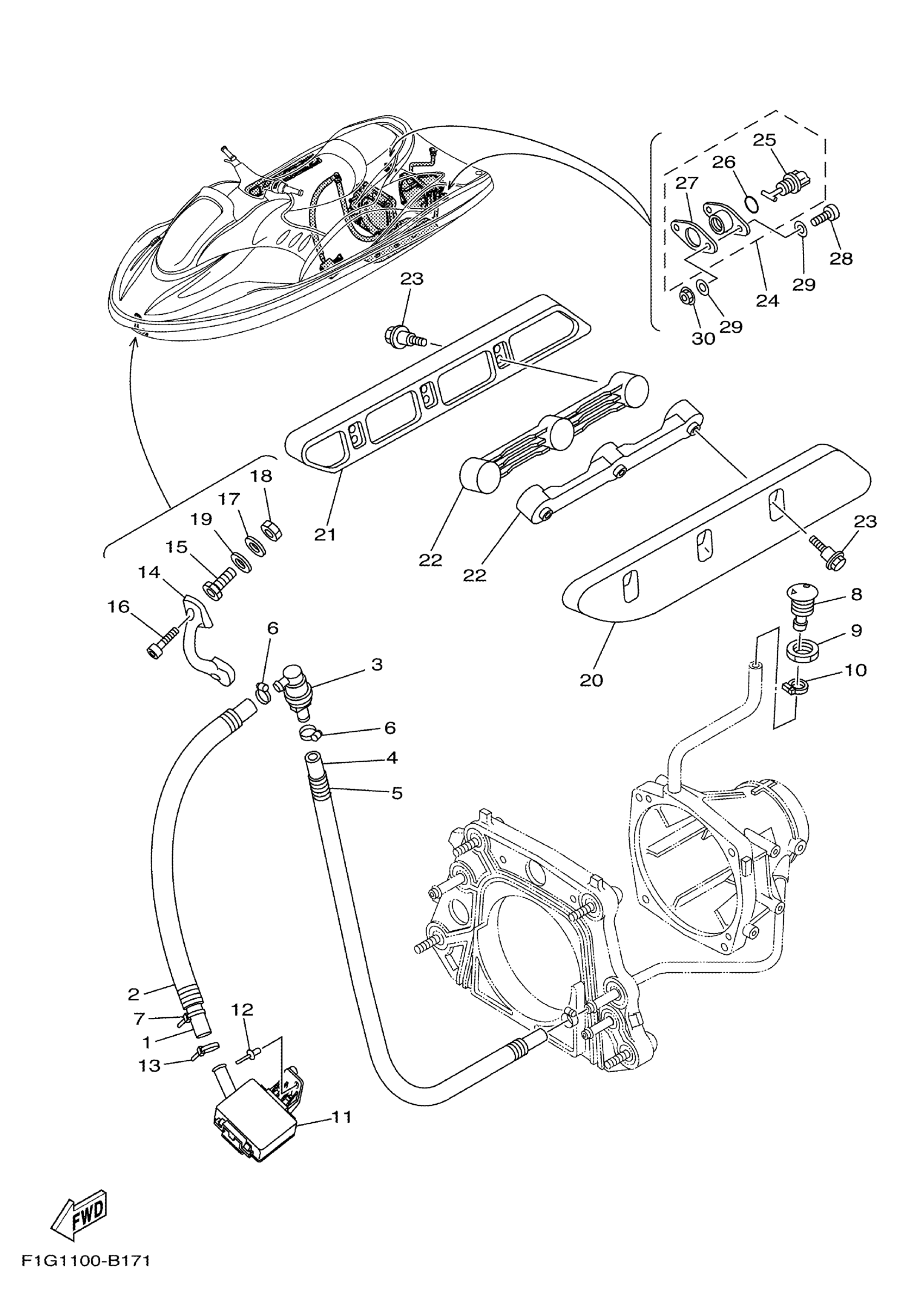

Yamaha GP1300E (WaveRunner GP1300R) F1GA 2006 HULL DECK Diagram

#

Description
Price

1

HOSE (L1000)

90445-198C0-00

Unavailable

2

HOSE (L800)

90446-27M95-00

$11.35

3

JOINT, HOSE

68N-5112T-00-00

$48.96

4

HOSE (L860)

90445-198B6-00

Unavailable

5

HOSE (L800)

90446-27M95-00

$11.35

6

BAND, HOSE 18

90601-118UF-00

$2.07

7

BAND

90601-200U1-00

$2.77

8

SPOUT

FN8-6269B-00-00

$22.49

9

NUT

EU0-61652-00-00

$11.48

10

BAND, HOSE 18

90601-118UF-00

$2.07

11

STRAINER, BILGE

F1B-U761D-02-00

$5.15

12

RIVET, BLIND

90267-489U8-00

$0.99

13

BAND

90601-200U1-00

$2.77

14

BOW EYE 1

F1K-61624-00-00

$42.60

15

NUT

F0X-61652-01-00

$11.84

16

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

$3.18

17

WASHER

F0X-61637-00-00

$1.29

18

NUT.HEX.(COARS)

99780-12600-00

$2.80

19

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

20

STABILIZER LH

F0X-U883N-00-00

Unavailable

21

STABILIZER RH

F0X-U883P-00-00

Unavailable

22

BRACKET,STABILIZER

F1B-U883T-02-00

Unavailable

23

BOLT

F1G-U2624-10-00

Unavailable

24

DRAIN PLUG ASSY

EU0-62280-00-00

$28.23

25

. PLUG, DRAIN

EU0-62282-00-00

$7.40

26

. O-RING

EU0-62283-00-00

$3.70

27

. PACKING DRAIN (EU0)

EU0-62285-01-00

$5.91

28

SCREW, PAN HEAD

9788R-05025-00

$2.52

29

WASHER

9299R-05200-00

$3.16

30

NUT, FLANGE

9572R-05300-00

$1.43
