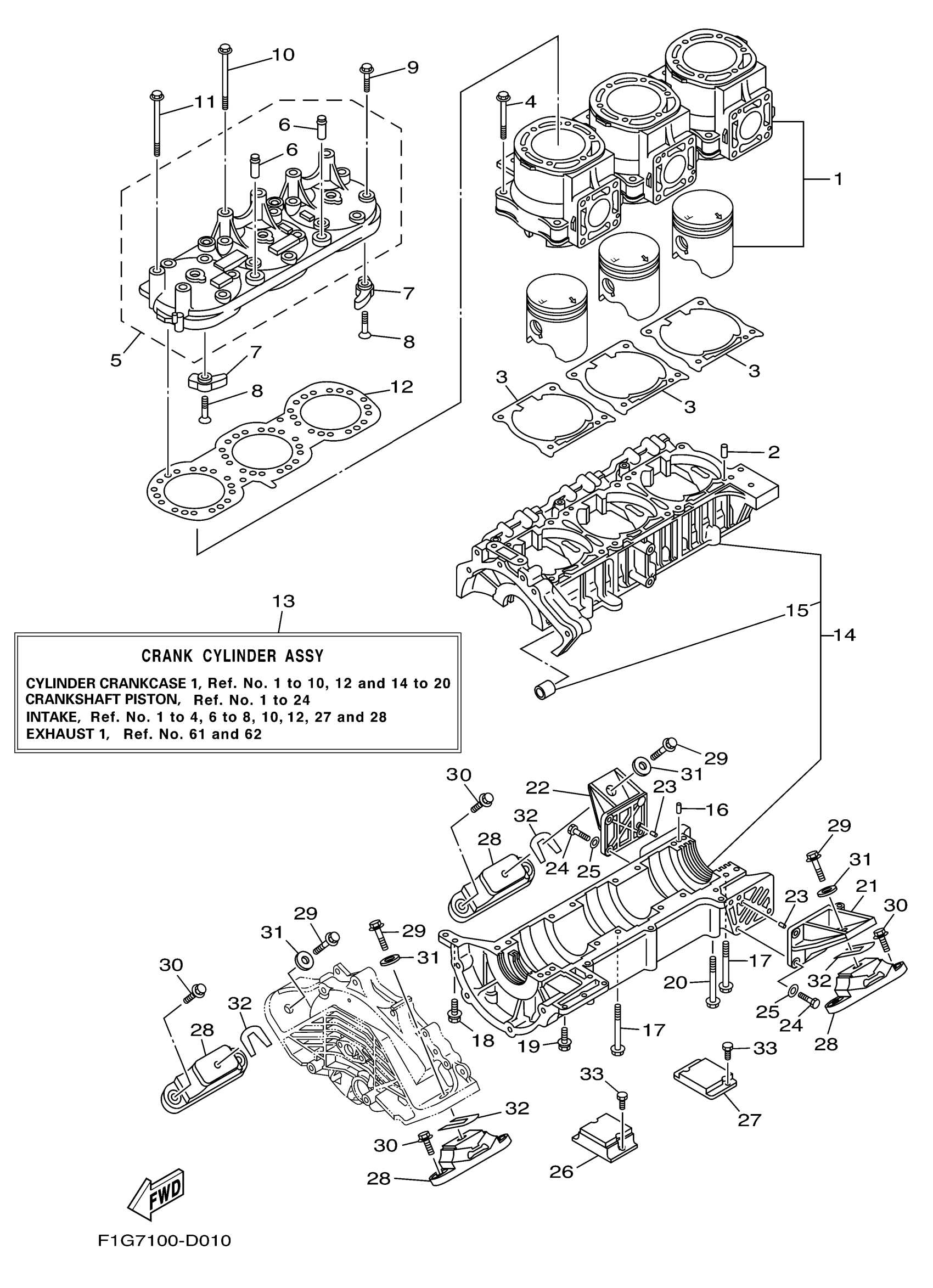

Yamaha GP1300E (WaveRunner GP1300R) F1GA 2006 CYLINDER CRANKCASE 1 Diagram

#

Description
Price

1

CYLINDER & PISTON SET

60T-W1130-10-8S

Unavailable

2

PIN, DOWEL (614)

93606-12019-00

$3.50

3

GASKET, CYLINDER

66E-11351-02-00

$20.81

4

BOLT (6F5)

90119-10M07-00

$4.21

5

HEAD, CYLINDER 1

60T-11111-10-8S

Unavailable

6

. NIPPLE

66E-51129-00-00

Unavailable

7

ANODE

66E-11325-00-00

$10.63

8

SCREW, FLAT HEAD

98780-05020-00

$2.16

9

BOLT, WITH WASHER

90119-08MA1-00

$5.00

10

BOLT, WITH WASHER

90119-08064-00

Unavailable

11

BOLT, WITH WASHER

90119-08M99-00

$3.43

12

. GASKET, CYLINDER HEAD 1

60T-11181-10-00

Unavailable

13

CRANK CYLINDER ASSY

60T-W0090-04-8S

Unavailable

14

CRANKCASE ASSY

60T-15100-00-00

Unavailable

15

. BUSH, SOLID

90380-12M29-00

Unavailable

16

PIN, DOWEL (614)

93606-12019-00

$3.50

17

BOLT, WITH WASHER

90119-08M63-00

Unavailable

18

BOLT, WITH WASHER

90119-08009-00

$2.54

19

BOLT, WITH WASHER (682)

90119-06M13-00

Unavailable

20

BOLT, WITH WASHER

90119-06M84-00

$6.24

21

BRACKET, REAR UPPER 1

68N-21425-00-94

$137.30

22

BRACKET, REAR UPPER 2

68N-21426-00-94

$125.36

23

PIN, DOWEL (614)

93606-12019-00

$3.50

24

BOLT (682)

97013-08025-00

Unavailable

25

.. WASHER, PLATE

92990-08600-00

$2.41

26

STOPPER, UPPER MOUNT

66V-44532-00-94

$132.82

27

STOPPER, LOWER MOUNT RUBBER

66V-44574-00-94

Unavailable

28

MOUNT RUBBER

67X-44517-10-00

$96.21

29

BOLT, WITH WASHER

90119-08856-00

$5.39

30

BOLT, WITH WASHER

90119-08829-00

$4.09

31

WASHER, PLATE

90201-099U3-00

$2.30

32

SHIM (T=0.1)

EU0-67354-A0-00

$4.31

32

SHIM (T=0.3)

EU0-67354-B0-00

$5.17

32

SHIM (T=0.5)

EU0-67354-C0-00

$4.31

32

SHIM (T=1.0)

EU0-67354-D0-00

$3.88

32

SHIM (T=2.0)

EU0-67354-E0-00

$3.88

33

BOLT

90101-06917-00

Unavailable
