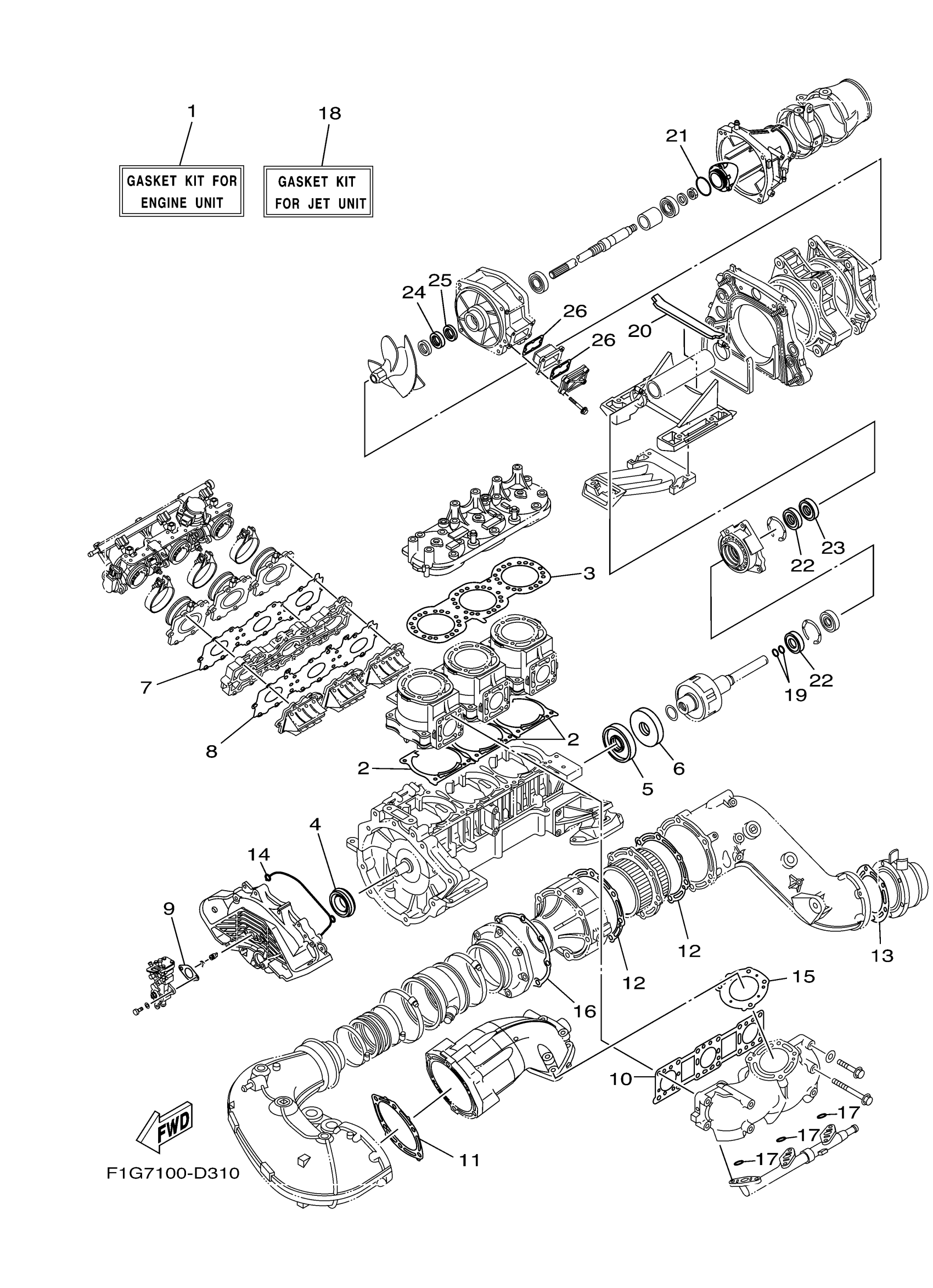

Yamaha GP1300D (WaveRunner GP1300R) F1G7 2005 REPAIR KIT 1 Diagram
#
Description
Price
1
GASKET KIT FOR ENGINE UNIT
60T-W0001-02-00
Unavailable
2
GASKET, CYLINDER
66E-11351-02-00
Unavailable
3
. GASKET, CYLINDER HEAD 1
60T-11181-10-00
Unavailable
4
OIL SEAL
93103-35011-00
Unavailable
5
OIL SEAL
93101-34001-00
Unavailable
6
OIL SEAL
93101-34002-00
Unavailable
7
. GASKET, MANIFOLD
60T-13556-00-00
Unavailable
8
. PLATE, REED VALVE
60T-13624-00-00
Unavailable
9
GASKET, PUMP CASE
63M-13116-00-00
Unavailable
10
GASKET, EXHAUST PIPE
66V-14613-01-00
Unavailable
11
GASKET, MUFFLER DAMPER 2
66V-14749-01-00
Unavailable
12
GASKET, EXHAUST OUTER COVER
66V-41124-01-00
Unavailable
13
. GASKET, EXHAUST PIPE
68N-14623-00-00
Unavailable
14
. O-RING
66V-81168-10-00
Unavailable
15
GASKET, MUFFLER DAMPER 1
66V-14739-01-00
Unavailable
16
GASKET, EXHAUST OUTER COVER
66V-41114-01-00
Unavailable
17
O-RING(6R7)
93210-17MA4-00
Unavailable
18
GASKET KIT FOR JET UNIT
60T-W0001-20-00
Unavailable
19
O-RING
93210-19001-00
Unavailable
20
FELT, PACKING
66V-R1367-00-00
Unavailable
21
. O-RING
93210-46M16-00
Unavailable
22
OIL SEAL(62T)
93101-25M55-00
Unavailable
23
OIL SEAL
93101-24001-00
Unavailable
24
OIL SEAL
93101-28M66-00
Unavailable
25
OIL SEAL
93101-28002-00
Unavailable
26
. O-RING
66V-42414-00-00
Unavailable
