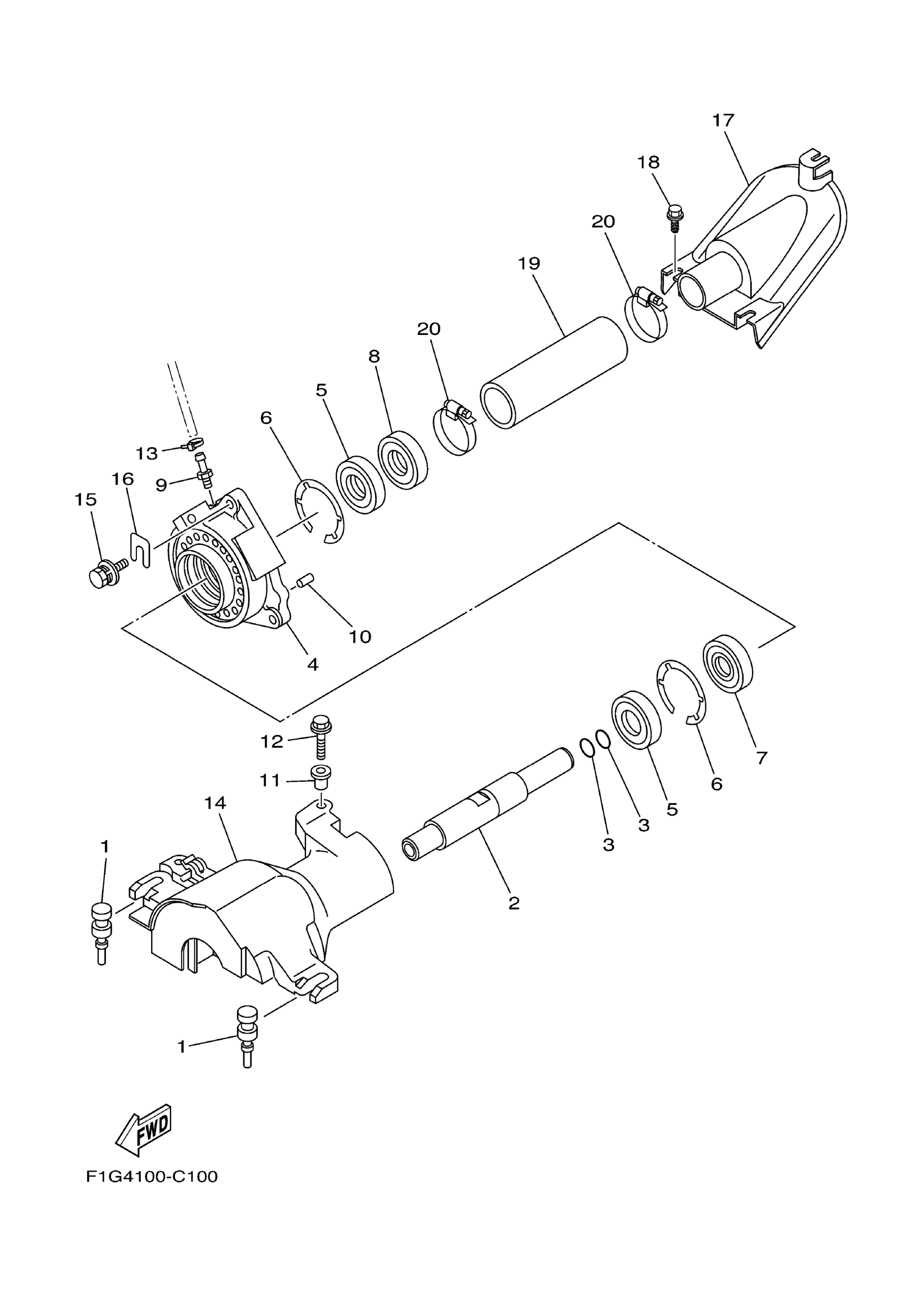

Yamaha GP1300D (WaveRunner GP1300R) F1G7 2005 JET UNIT 2 Diagram

#

Description
Price

1

GROMMET(6R7)

90480-06M46-00

$12.49

2

SHAFT, COUPLER

68N-51323-00-00

Unavailable

3

O-RING

93210-19001-00

Unavailable

4

HOUSING, BEARING

61X-G5332-00-00

Unavailable

5

OIL SEAL(62T)

93101-25M55-00

$30.99

6

CIRCLIP

93430-47M04-00

Unavailable

7

BEARING(62G)

93306-205U6-00

Unavailable

8

OIL SEAL

93101-24001-00

$31.99

9

NIPPLE, HOSE

61L-45378-00-00

Unavailable

10

PIN, DOWEL (614)

93606-12019-00

$4.24

11

COLLAR

90387-06M60-00

Unavailable

12

BOLT, WITH WASHER

90119-06892-00

Unavailable

13

CLAMP

90465-10098-00

Unavailable

14

COVER

66V-R1381-01-00

Unavailable

15

BOLT, WITH WASHER

90119-08907-00

Unavailable

16

SHIM (0.5)

GD0-U7249-00-05

Unavailable

17

JOINT, PIPE

F0X-U883E-00-00

Unavailable

18

SCREW

90149-069UA-00

Unavailable

19

PIPE, 1

F0X-U883B-01-00

Unavailable

20

BAND, HOSE 52

90601-152U3-00

Unavailable
