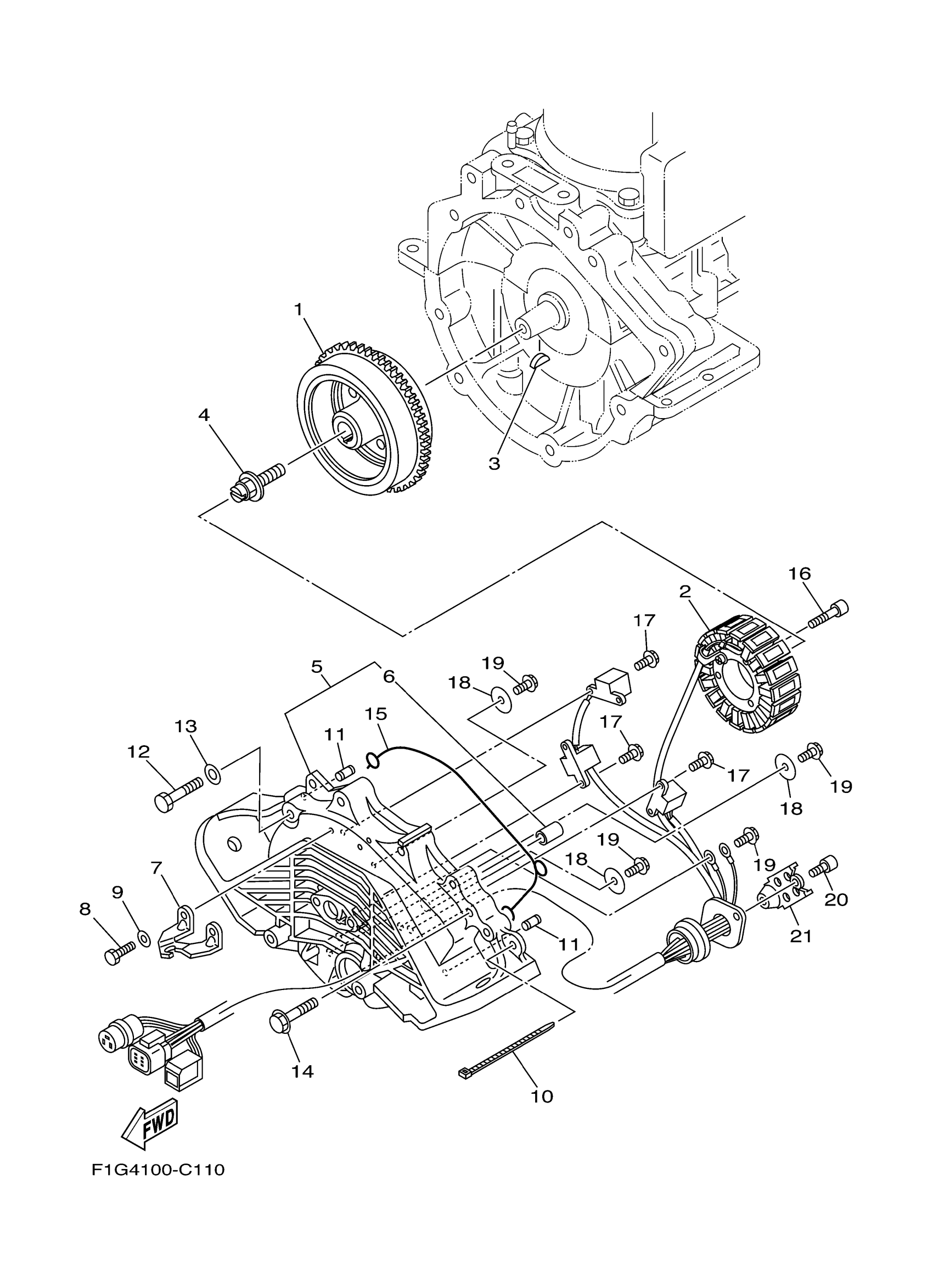

Yamaha GP1300D (WaveRunner GP1300R) F1G7 2005 GENERATOR Diagram

#

Description
Price

1

ROTOR ASSY

60T-81450-00-00

Unavailable

2

STATOR ASSY

60T-81410-01-00

Unavailable

3

KEY, WOODRUFF

90280-05001-00

$11.00

4

BOLT(63M)

90109-10M72-00

$31.80

5

COVER, FLYWHEEL

60T-81337-00-94

Unavailable

6

. BUSH, SOLID

90380-12M29-00

Unavailable

7

STAY

60T-26292-00-00

Unavailable

8

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

9

WASHER, PLAIN (646)

92990-06600-00

$1.84

10

CLAMP

90465-11M52-00

$3.52

11

PIN, DOWEL

93608-16M16-00

$2.41

12

BOLT, HEXAGON

97013-10055-00

Unavailable

13

WASHER, PLATE

92990-10600-00

$2.57

14

BOLT, WITH WASHER

90119-10M17-00

$9.08

15

. O-RING

66V-81168-10-00

Unavailable

16

BOLT,SOCKET

91317-06035-00

$3.27

17

BOLT, WITH WASHER

97513-05514-00

$3.64

18

WASHER, PLATE

90201-05014-00

Unavailable

19

BOLT, WITH WASHER

97513-05514-00

$3.64

20

BOLT,SOCKET

91318-06014-00

Unavailable

21

CLAMP

60E-81328-00-00

$7.27
