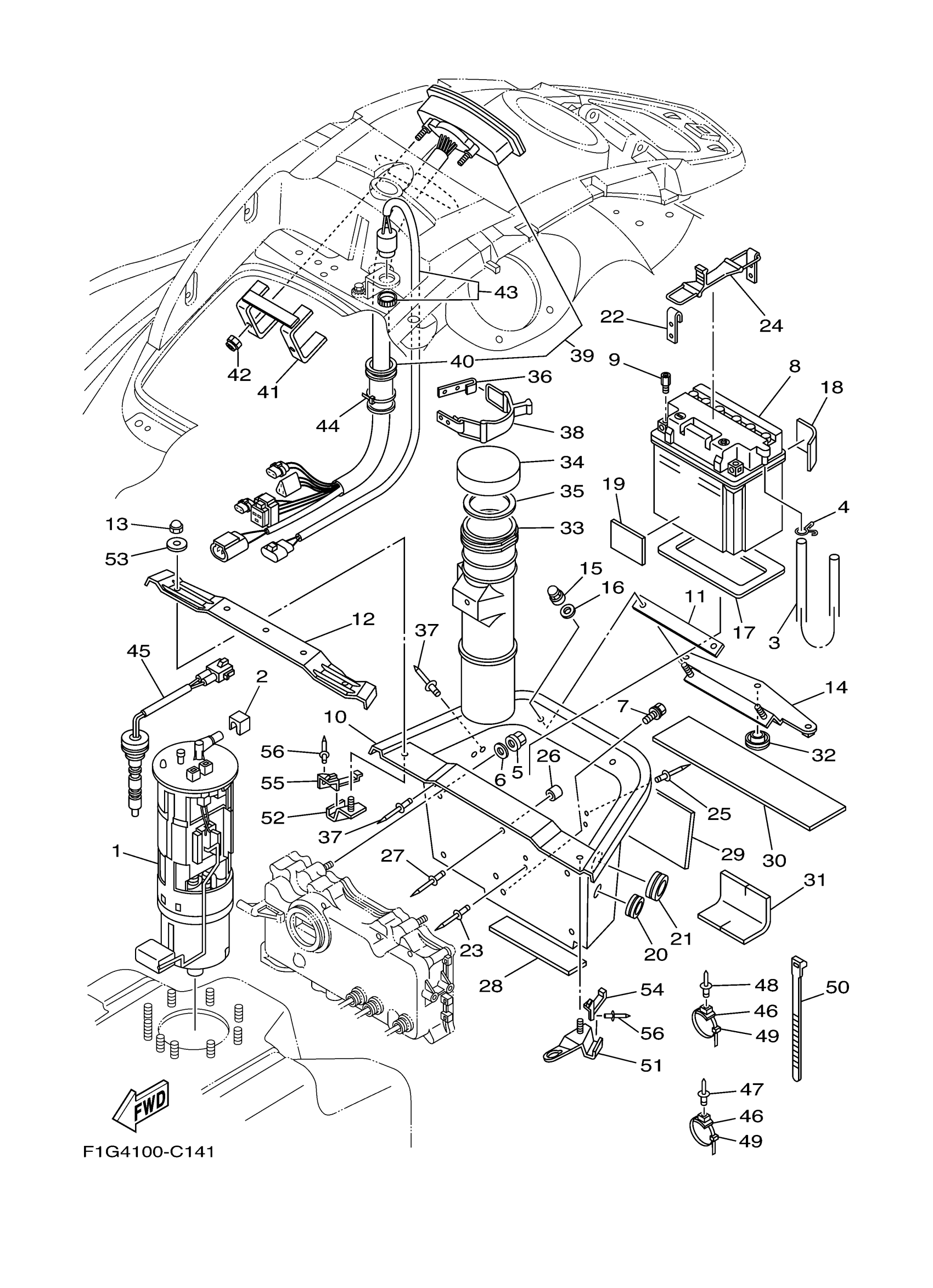

Yamaha GP1300D (WaveRunner GP1300R) F1G7 2005 ELECTRICAL 2 Diagram

#

Description
Price

1

FUEL PUMP COMP.

60E-13907-0X-00

Unavailable

2

COVER

60E-24474-00-00

$3.58

3

HOSE, AIR VENT 3

EU0-U7856-50-00

Unavailable

4

CLIP

90467-089U1-00

$1.42

5

NUT

90179-08978-00

$6.27

6

WASHER

9299R-08200-00

$1.82

7

BOLT, WITH WASHER

90119-08826-00

$4.55

8

BATTERY ASSY

EU0-82110-08-00

Unavailable

9

NUT

F0W-68239-01-00

$18.64

10

CASE, BATTERY

F1G-U8211-01-00

Unavailable

11

PACKING 5

F0X-U266D-00-00

Unavailable

12

BEAM, DECK 1

F1G-68952-00-00

$95.51

13

NUT, CROWN

90176-06005-00

$6.72

14

BRACKET, BASE BATTERY

F0X-6821H-00-00

$73.12

15

NUT

90179-08978-00

$6.27

16

WASHER

9299R-08200-00

$1.82

17

PAD, BATTERY

F1S-U8221-00-00

$2.88

18

PAD, BATTERY 3

F0W-U822D-00-00

Unavailable

19

PAD, BATTERY 2

F0W-U822C-00-00

Unavailable

20

GROMMET

90480-279U1-00

$11.18

21

GROMMET

90480-38800-00

$2.69

22

HOOK A

GA7-65772-00-00

$8.94

23

RIVET, BLIND(EU0,USA)

90267-489U9-00

Unavailable

24

HOOK COMP

GJ1-66607-00-00

Unavailable

25

RIVET, BLIND(EU0,USA)

90267-489U9-00

Unavailable

26

CUSHION, RUBBER

GK5-63768-00-00

$6.59

27

RIVET (EU0)

90267-48938-00

$4.72

28

TRIM, MAT

F0X-6352C-00-00

$8.19

29

MAT

GU0-67593-00-00

$29.84

30

MAT, LOWER

F0X-6351B-00-00

$22.37

31

MAT, WATER LOCK

GP8-6755J-00-00

$19.39

32

CAP

F0X-65568-00-00

Unavailable

33

BOX, FIRE EXTINGUISHER

F0X-U5983-01-00

Unavailable

34

. CAP, CASE

EW2-U5912-01-00

Unavailable

35

PACKING, CASE

EW2-U5913-01-00

Unavailable

36

HOOK A

GA7-65772-00-00

$8.94

37

RIVET, BLIND(EU0,USA)

90267-489U9-00

Unavailable

38

HOOK COMP

GJ1-66607-00-00

Unavailable

39

METER ASSY

F1G-6820A-10-00

Unavailable

40

GROMMET

GU2-6822E-01-00

$24.61

41

BRACKET, METER

GP7-68238-10-00

Unavailable

42

NUT, FLANGE

9572R-05300-00

$1.51

43

BUZZER

F1S-68341-00-00

$111.93

44

CLAMP

90464-32801-00

$1.29

45

SENDER, OIL

F0D-U824C-21-00

Unavailable

46

CLAMP COMP (EU0)

90600-91736-00

Unavailable

47

RIVET, BLIND

90267-489U6-00

Unavailable

48

RIVET, BLIND

90267-48802-00

$1.98

49

CLAMP

90464-32801-00

$1.29

50

BAND

90601-200U2-00

$3.29

51

STAY 1

F0X-65938-01-00

$56.70

52

STAY 2

F0X-65939-01-00

$28.34

53

WASHER, PLATE

90201-06014-00

Unavailable

54

PACKING, SEAL 2

F0X-63225-00-00

Unavailable

55

PACKING, SEAL

F0X-63226-00-00

$20.88

56

RIVET, BLIND

90267-489U6-00

Unavailable
