- GP1300D (WaveRunner GP1300R) F1G7 2005
CYLINDER CRANKCASE 1

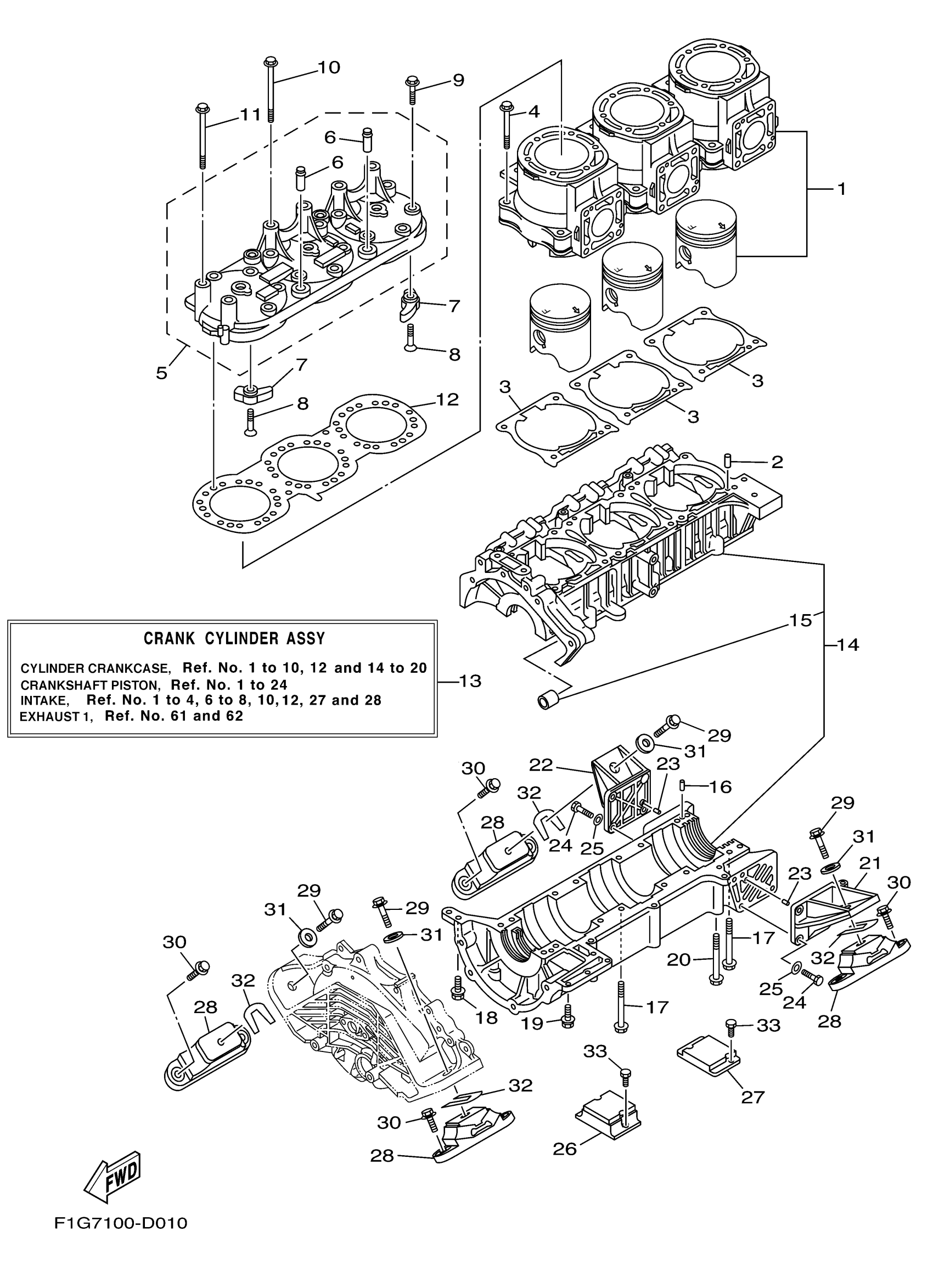

Yamaha GP1300D (WaveRunner GP1300R) F1G7 2005 CYLINDER CRANKCASE 1 Diagram
#
1
CYLINDER & PISTON SET
60T-W1130-10-8S
Unavailable
2
PIN, DOWEL (614)
93606-12019-00
$4.24
3
GASKET, CYLINDER
66E-11351-02-00
Unavailable
4
BOLT (6F5)
90119-10M07-00
$4.82
5
HEAD, CYLINDER 1
60T-11111-10-8S
Unavailable
6
. NIPPLE
66E-51129-00-00
Unavailable
7
ANODE
66E-11325-00-00
Unavailable
8
SCREW, FLAT HEAD
98780-05020-00
Unavailable
9
BOLT, WITH WASHER
90119-08MA1-00
$7.49
10
BOLT, WITH WASHER
90119-08064-00
Unavailable
11
BOLT, WITH WASHER
90119-08M99-00
Unavailable
12
. GASKET, CYLINDER HEAD 1
60T-11181-10-00
Unavailable
13
CRANK CYLINDER ASSY
60T-W0090-04-8S
Unavailable
14
CRANKCASE ASSY
60T-15100-00-00
Unavailable
15
. BUSH, SOLID
90380-12M29-00
Unavailable
16
PIN, DOWEL (614)
93606-12019-00
$4.24
17
BOLT, WITH WASHER
90119-08M63-00
Unavailable
18
BOLT, WITH WASHER
90119-08009-00
Unavailable
19
BOLT, WITH WASHER (682)
90119-06M13-00
Unavailable
20
BOLT, WITH WASHER
90119-06M84-00
Unavailable
21
BRACKET, REAR UPPER 1
68N-21425-00-94
Unavailable
22
BRACKET, REAR UPPER 2
68N-21426-00-94
Unavailable
23
PIN, DOWEL (614)
93606-12019-00
$4.24
24
BOLT (682)
97013-08025-00
Unavailable
25
.. WASHER, PLATE
92990-08600-00
Unavailable
26
STOPPER, UPPER MOUNT
66V-44532-00-94
Unavailable
27
STOPPER, LOWER MOUNT RUBBER
66V-44574-00-94
Unavailable
28
MOUNT RUBBER
67X-44517-10-00
Unavailable
29
BOLT, WITH WASHER
90119-08856-00
Unavailable
30
BOLT, WITH WASHER
90119-08829-00
Unavailable
31
WASHER, PLATE
90201-099U3-00
Unavailable
32
SHIM (T=0.1)
EU0-67354-A0-00
Unavailable
32
SHIM (T=0.3)
EU0-67354-B0-00
Unavailable
32
SHIM (T=0.5)
EU0-67354-C0-00
Unavailable
32
SHIM (T=1.0)
EU0-67354-D0-00
Unavailable
32
SHIM (T=2.0)
EU0-67354-E0-00
Unavailable
33
BOLT
90101-06917-00
Unavailable
