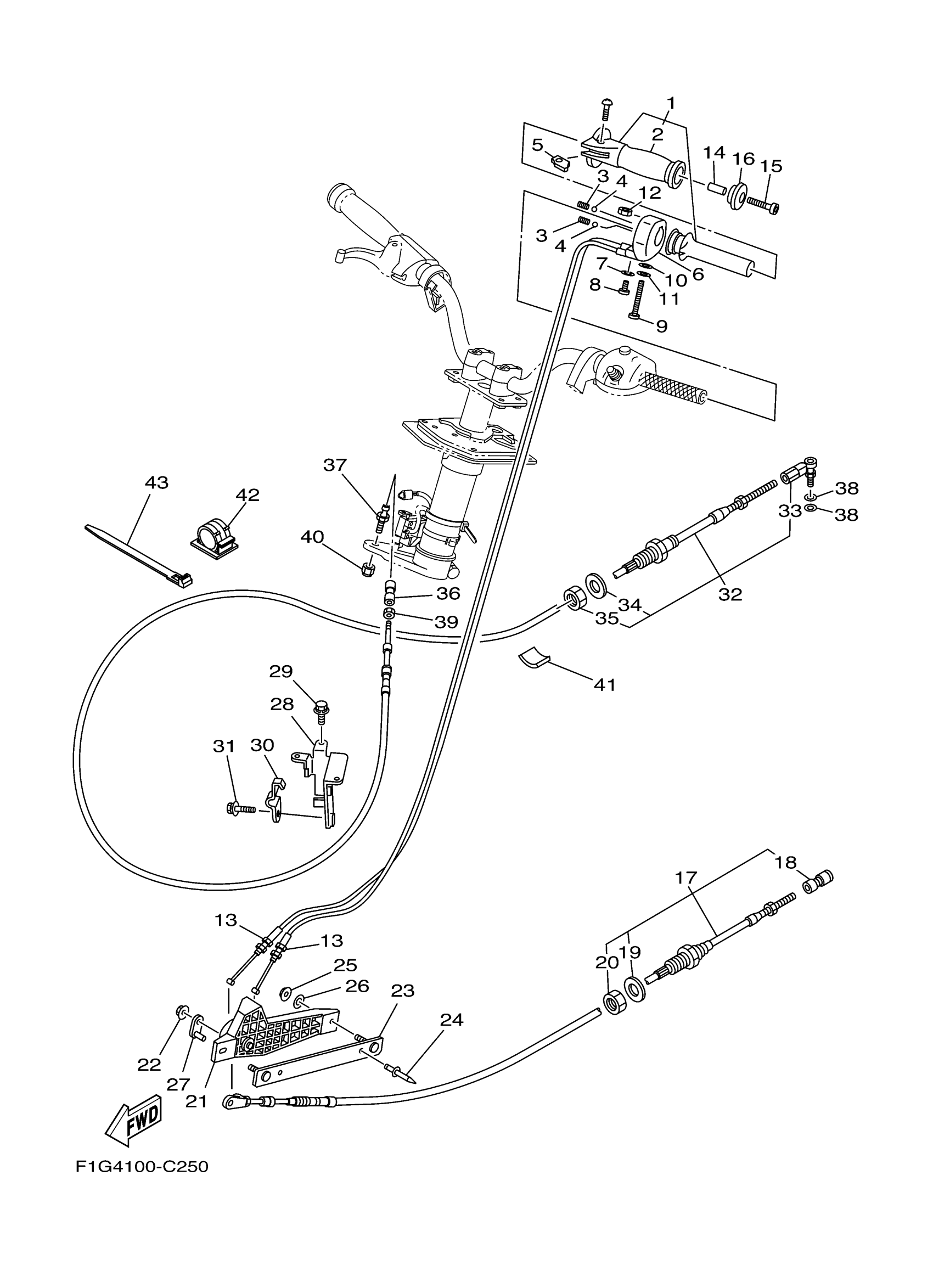

Yamaha GP1300D (WaveRunner GP1300R) F1G7 2005 CONTROL CABLE Diagram

#

Description
Price

1

GRIP, HANDLE ASSY.

GP7-U157A-00-00

$454.53

2

. GRIP, HANDLE

GP7-U155C-00-00

$58.88

3

SPRING

GP7-U152P-00-00

$12.86

4

BALL

GP7-U152R-00-00

Unavailable

5

LEVER ASSY

GP7-U151M-00-00

Unavailable

6

HOUSING ASSY

GP7-U152M-00-00

Unavailable

7

WASHER, PLAIN (646)

92990-04600-00

$0.91

8

SCREW, BINDING (M01)

98980-04010-00

$5.02

9

SCREW PAN HEAD

98580-06565-00

Unavailable

10

WASHER, PLAIN (646)

92990-06600-00

$1.84

11

WASHER

9299R-06100-00

Unavailable

12

NUT, SPECIAL

GH1-U143B-00-00

Unavailable

13

CABLE, NOZZLE CONTROL 2

F0D-U153D-01-00

Unavailable

14

COLLAR

90387-05800-00

$3.86

15

BOLT, HEXAGON SOCKET HEAD

90110-05908-00

$1.83

16

GRIP, END

GP7-U155F-00-00

$2.88

17

CABLE,NOZZLE CONTROL 3

F1G-6153E-03-00

Unavailable

18

. BALL JOINT ASSY

F1B-61460-00-00

$50.99

19

. PACKING C

F1B-61438-00-00

$2.72

20

NUT

F1B-6151S-01-00

$14.31

21

REMOCON,NOZZLE 2

F0D-U153J-10-00

Unavailable

22

NUT, NYLON

9572R-06300-00

$2.80

23

BASE, REMOCON.

F0X-U4958-00-00

Unavailable

24

RIVET, BLIND

90267-489U6-00

$1.37

25

NUT, NYLON

9572R-06300-00

$2.80

26

WASHER

9299R-06200-00

$0.43

27

PIN

F0D-U152C-10-00

Unavailable

28

BRACKET, STOPPER CABLE

F0X-61467-00-00

Unavailable

29

BOLT, WITH WASHER

90119-06827-00

Unavailable

30

STOPPER, CABLE

F0X-61468-00-00

$13.99

31

BOLT, WITH WASHER

90119-06830-00

Unavailable

32

CABLE, STEERING

F1G-61481-04-00

Unavailable

33

. STUD, JOINT BALL

F1B-61461-02-00

$95.44

34

. PACKING C

F1B-61438-00-00

$2.72

35

NUT

F1B-6151S-01-00

$14.31

36

SHAFT,JOINT BALL

GK5-U146F-00-00

$23.31

37

SHAFT, JOINT BALL

EU0-U1461-10-00

$27.27

38

WASHER, PLATE

90201-06906-00

$2.80

39

NUT

9538R-06700-00

$1.01

40

NUT, NYLON

9572R-06300-00

$2.80

41

PACKING, HOSE 2

GJ1-U7578-01-00

Unavailable

42

CLAMP

90600-925U9-00

Unavailable

43

BAND

90601-200U2-00

$3.16
