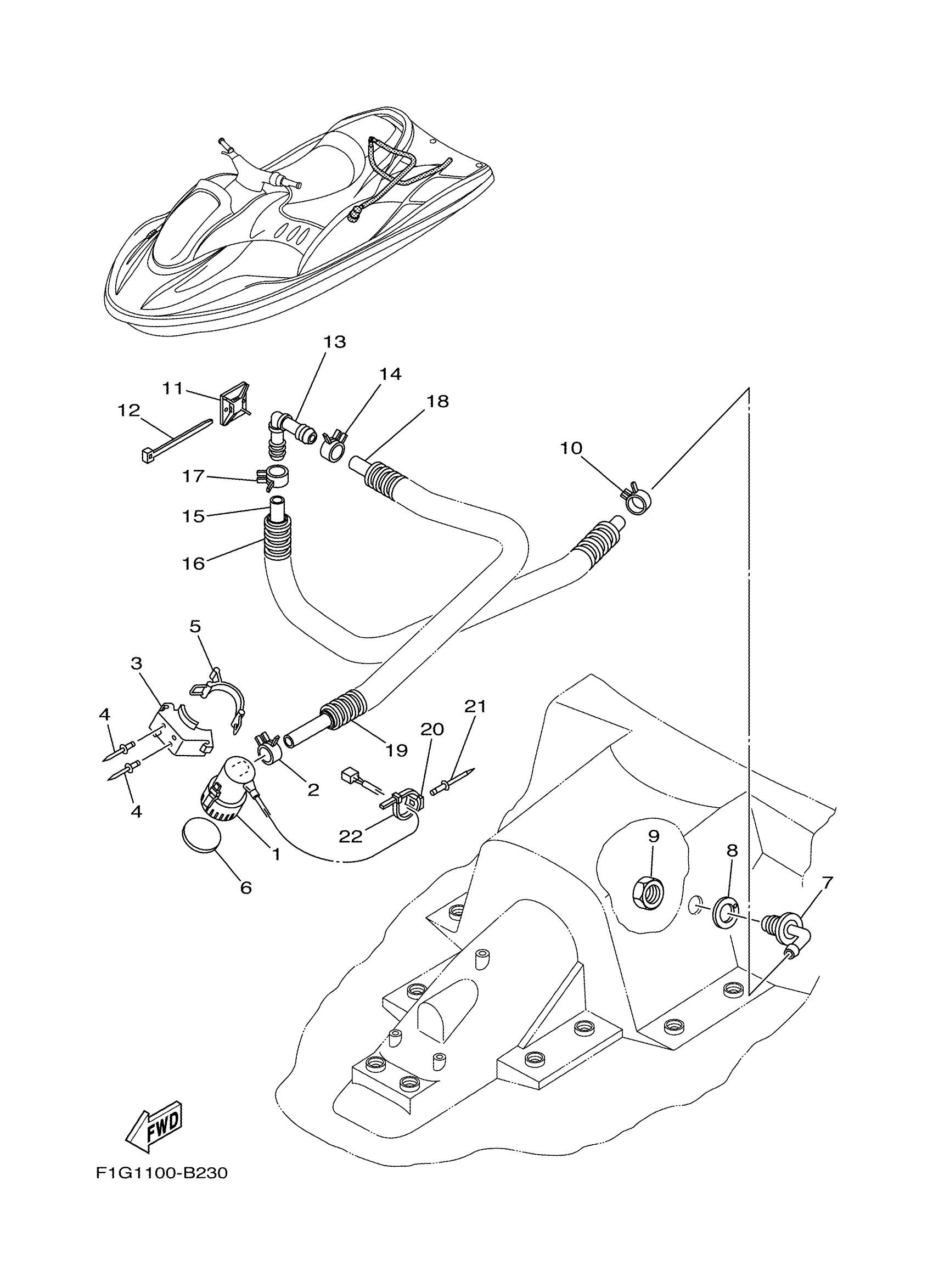

Yamaha GP1300D (WaveRunner GP1300R) F1G7 2005 BILGE PUMP Diagram
#
Description
Price
1
BILGE PUMP ASSY
F1B-U8360-02-00
Unavailable
2
CLIP
90467-210A0-00
Unavailable
3
BRACKET
F1B-U7698-01-00
Unavailable
4
RIVET, 1
F3J-U516R-00-00
Unavailable
5
BAND, BATTERY
GA7-68218-00-00
Unavailable
6
PACKING, BILGE
F1B-U7656-00-00
Unavailable
7
BODY, DRAIN 3
F1B-6224E-00-00
Unavailable
8
PACKING
F1B-67525-00-00
Unavailable
9
DRAIN, COCKPIT
F1B-62241-00-00
Unavailable
10
CLIP
90467-250A0-00
Unavailable
11
BASE, CLAMP
F1B-U828M-00-00
Unavailable
13
HOLDER, FILTER
F1G-U7817-01-00
Unavailable
14
CLIP
90467-250A0-00
Unavailable
15
HOSE 1
F1B-U7626-00-00
Unavailable
16
TUBE
F2T-U773D-10-00
Unavailable
17
CLIP
90467-250A0-00
Unavailable
18
HOSE, DRAIN 3
F1B-U7628-00-00
Unavailable
19
TUBE
F2T-U773D-10-00
Unavailable
20
CLAMP COMP (EU0)
90600-91736-00
Unavailable
21
RIVET, BLIND
90267-489U8-00
Unavailable
22
CLAMP
90464-32801-00
Unavailable
